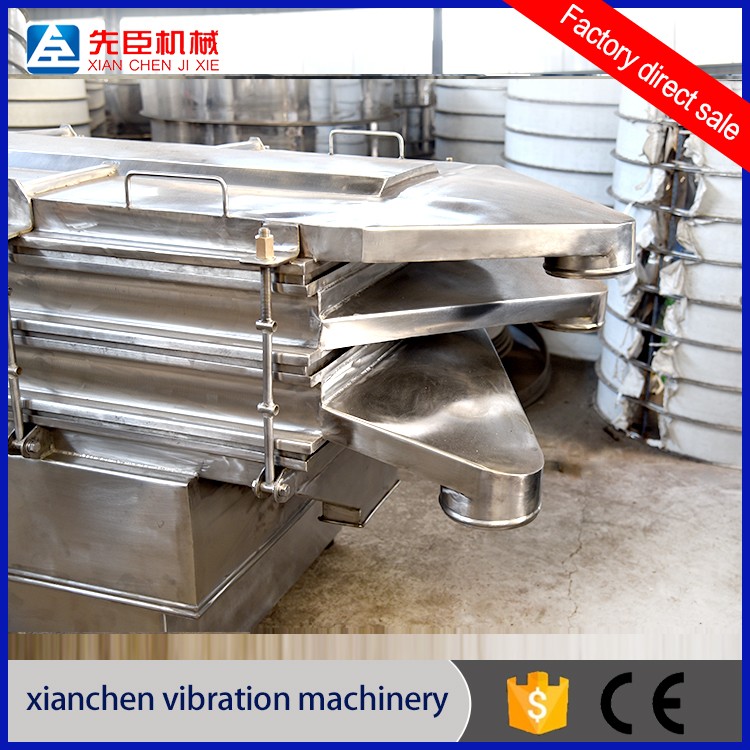

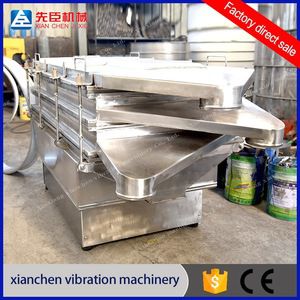

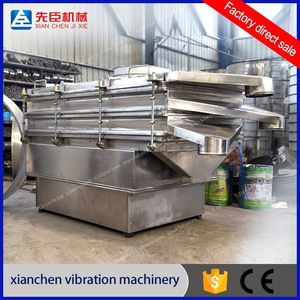

General Description -- Linear Vibrating Screen
The linear vibrating screen machine is a kind of new-type sieve machine with two horizontal vibration motor as its vibrating source. Its performance has reached the international advanced level. The materials on the screen are thrown up and move in a straight line to achieve the aim of sieving and grading. Any materials with a diameter of 0.07mm-20 mm could be handled.

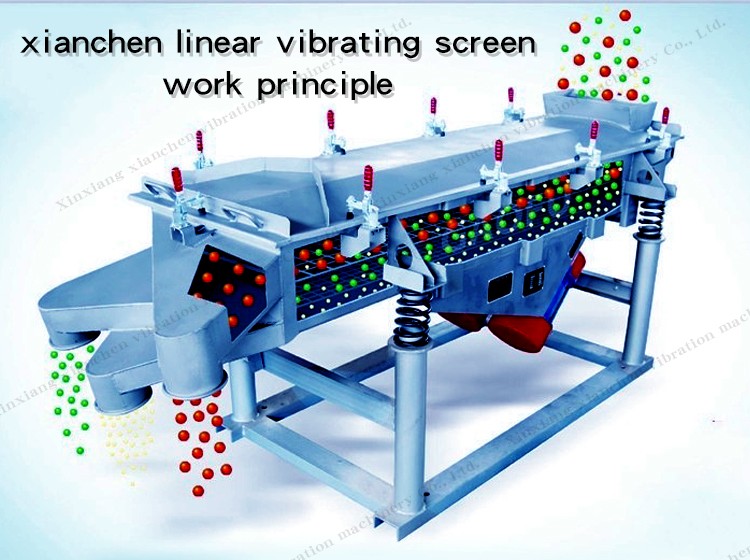

Working Principle -- Linear Vibrating Screen
The linear vibrating screen uses horizontal vibration motor or special vibration exciter as its vibration source. The horizontal vibration motor and vibration exciter have a eccentric block at the both at their upper and lower sides. The eccentric blocks can generate a three-dimensional movement in horizontal, vertical and inclined directions. By adjusting the phase angles of the upper and lower eccentric blocks, the materials on the screen can change the movement locus, achieving suitable screening aims.
Features -- Linear Vibrating Screen
1. sealing, and little dust spilling.
2. low energy consumption, low noise, long life screen.
3. high screening accuracy, large capacity, simple structure.
4. fully enclosed structure, automatic nesting, more suitable for pipeline operations.
5. Multi layer of new design, flexible disassembly and assembly.
Technical Parameter -- Linear Vibrating Screen
| Model | XC-612 | XC-520 | XC-525 | XC-1020 | XC-1025 | XC-1030 |
| Screen Size(mm) | 600*1200 | 500*2000 | 500*2500 | 1000*2000 | 1000*2500 | 1000*3000 |
| Mesh Size(mesh) | 2-325 | |||||
| Power(kw) | 0.37*2 | 0.37*2 | 0.37*2 | 0.75*2 | 0.75*2 | 0.75*2 |
| Layer | 1-5 | |||||
| Leaning angle of screen(°) | 0-10 |

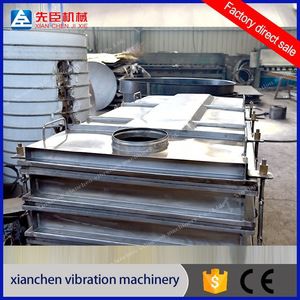

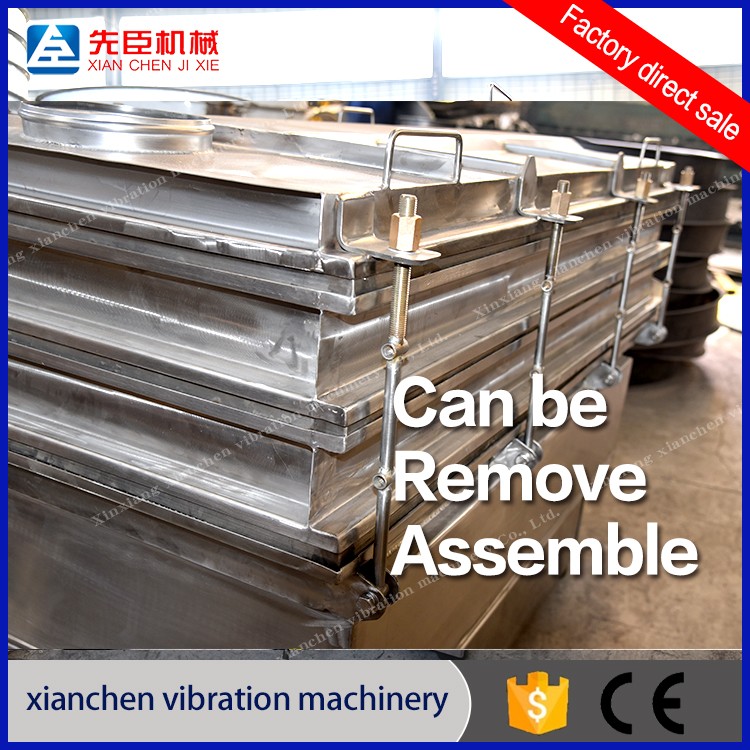

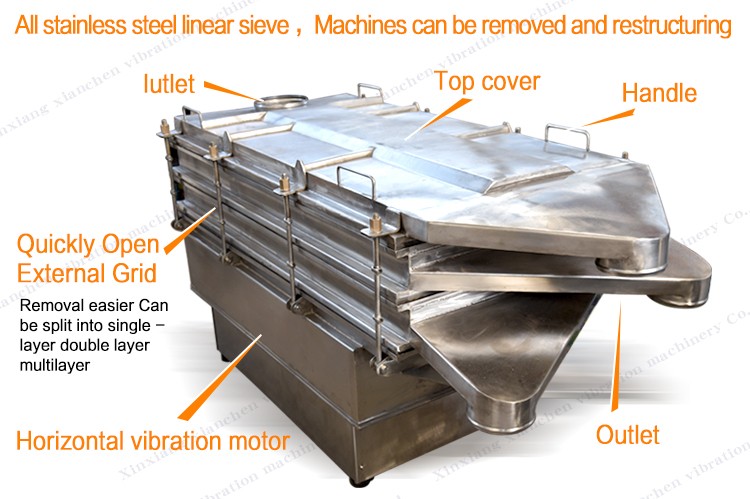

Dismountable frame
This device is convenient removal screen mesh, can use a layer, also can use multilayer, Convenient to cleaning mesh and exchanging net.

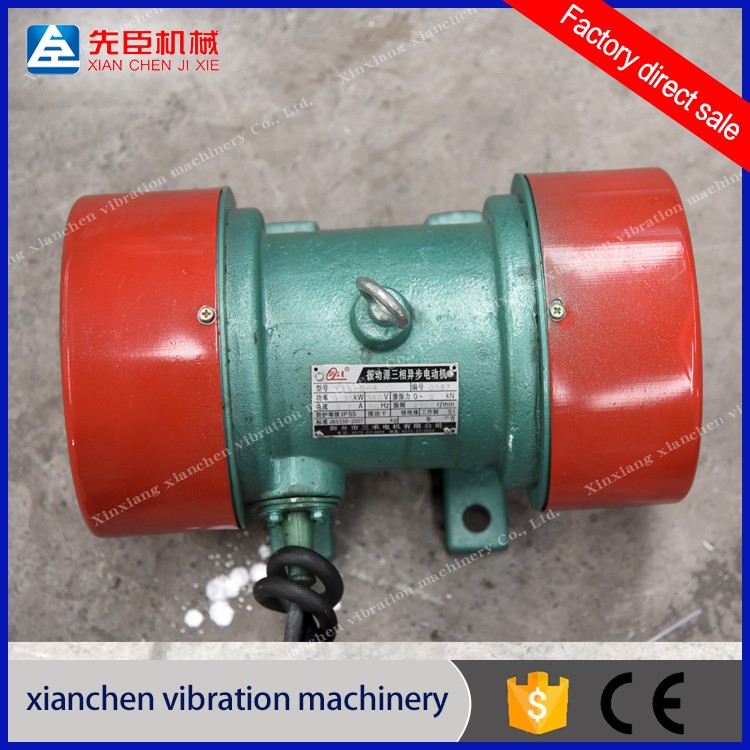

Horizontal vibration motor
The vibrating screen using two horizontal vibrating screen, big power, high output, meet customer requirements of high capacity
Outlet
The whole machine is made of stainless steel, corrosion resistant, high strength, durable and beautiful appearance.

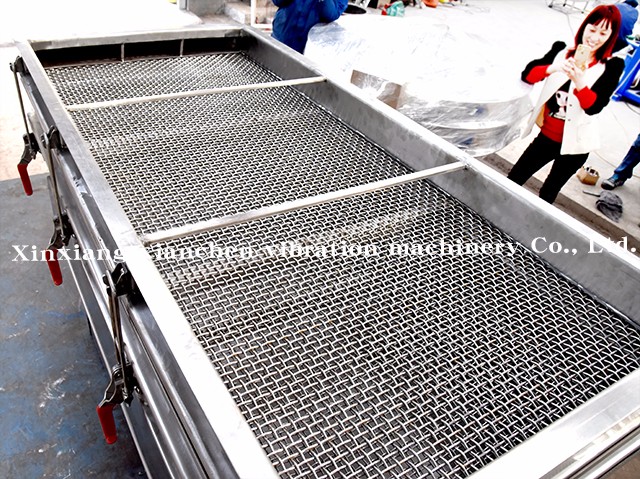

Screen mesh
The screen mesh is to use the most cutting-edge Stretching technology, greatly improves the effective area of the screen, with a special screening of high precision. Easy to clean, non-blocking mesh,
Usage --Linear Vibrating Screen
1) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
2) Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material,slurry, etc.
3) Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder,pollen, food additive, soybean milk, juice, etc.
4) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
5) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
6) Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc
Packing & Shipping -- Linear Vibrating Screen
1. First, the vibrating screen empty running 48 hours before packing;
2. Then to observe whether the motor heating, the machine whether there is noise and so on;
3. Finally, to pack and shipment when fully meet requirements.
4. Pictures will be taken before delivery.
Our Company
Xinxiang Xianchen Vibration Machinery Co,. Ltd ,which is established in the year of 2009, located in China biggest machinery manufacture base Henan province, is a professional vibration machinery manufactures which specializes in the production of sieving equipments, conveying equipments, crushing equipments and feeding equipments as well as relevant parts. we committed to solve all kinds of sieving problem.
Our tenet: "market oriented, technology based, quality of survival, innovation and development ".We have passed ISO9001:2008 certification. Under the guide of international quality management system, our products have won not only good reputation in china but also applauses by foreign clients like United States, Germany, Turkey, Indonesia and so on.
Why Choose Xianchen
1) International high quality certification product chain
2) Manufacturer, more reasonable price
3) Solid technical support and after-sales service
4) Uphold the principle of “Customer Supreme”
5) Exports to more than 20 countries and regions, good customers feedback
6) One-stop service, customized exclusive project feasibility report.
About Service
1. Pre-sale service:
a. In order to let each customer know better about the performance and requirements, we provide these services
b. To send each potential customer the detailed production information and company profile
c. According the user’s different needs, we work to recommend and guide for them
d. To help them select the appropriate equipment
2. Service during sale:
a. Do good communication with customers, so that each part can exchange the information.
b. Deliver on time as per the contract clause.
3. After-sale service:
a. To track the customer’s feedback after receiving the equipment
b. Any product quality we receive, the technical personnel will guide to solve the problem
c. All the products have three guarantees
d. Provide technical exchanges
e. Do well about the work of maintenance and service
Frequently Asked Questions
1.How to choose the machine?
a: Customers who are familiar with technical performance and parameters can directly order.
Note: You had better send us the pictures you have ever used.
b: Customers who need us to choose the models, please follow the information, tell us:
• Name and feature of the raw material?
• Aim of using: get rid of impurity, filtration, grading
• Handling capacity: kg /h, L/h
• The raw material size: (mesh or mm)
• How many final materials you want, or how many layer you need?
Note: You had better send us the relevant pictures about the details.

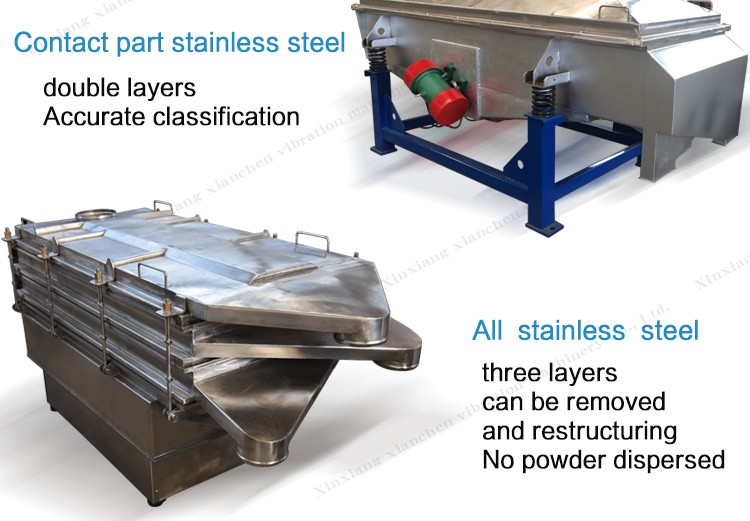

2.How many kinds of material are supported?
• All stainless steel (304, 316L)
• All carbon steel Q235
• Contact part Stainless steel
3.Is it special requirement available?
This machine also could be customized by clients' specific production line requirement.

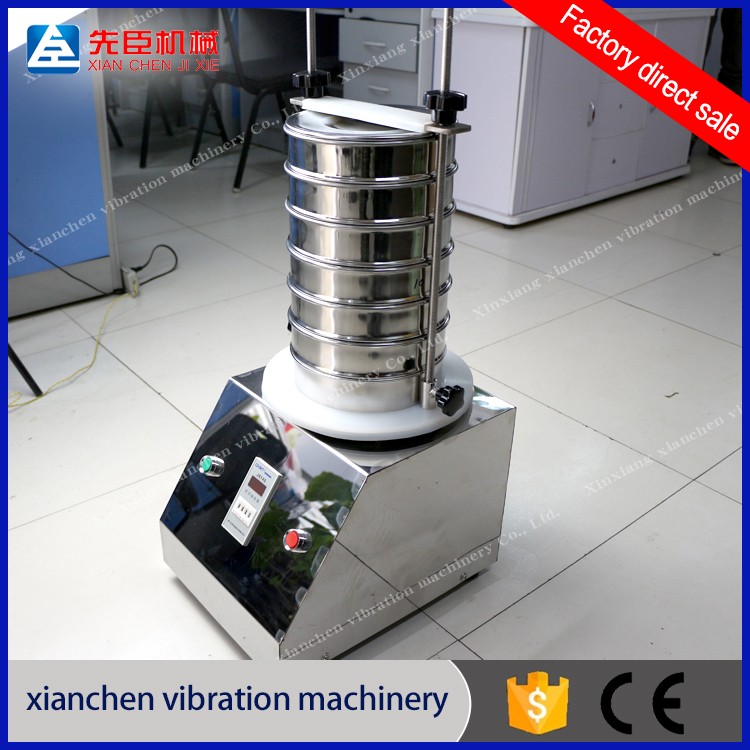

Lab testing sieve

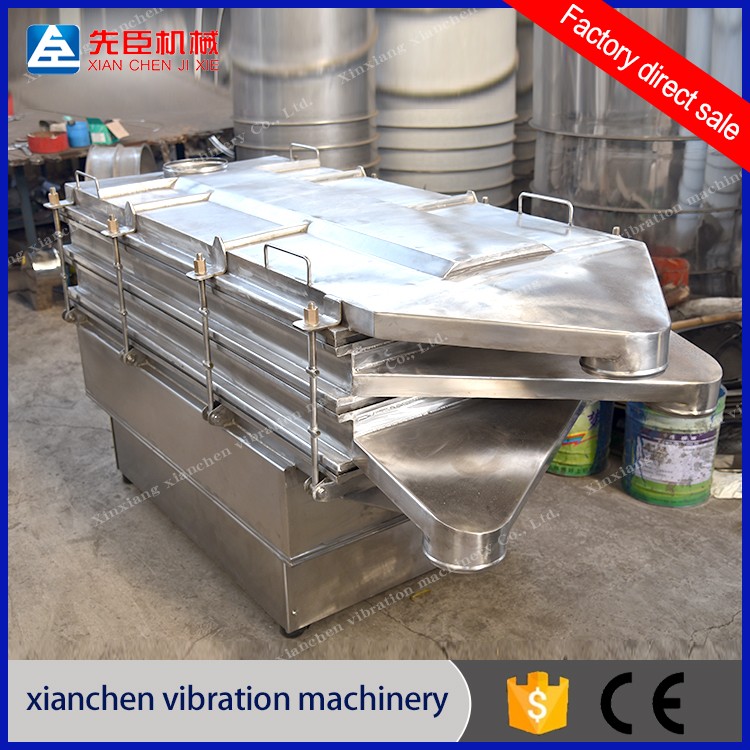

Stainless steel vibrating screen

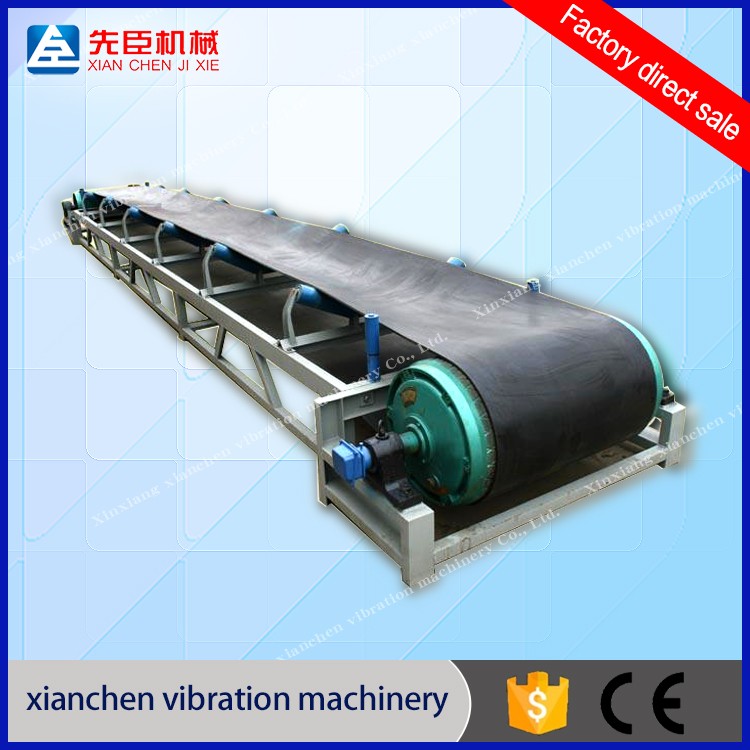

Belt conveyer

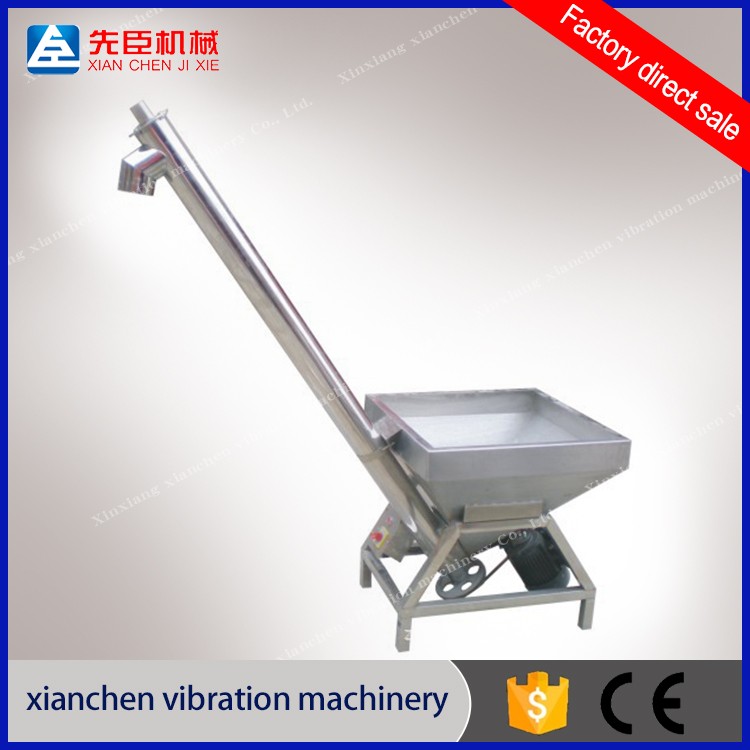

Screw conveyer

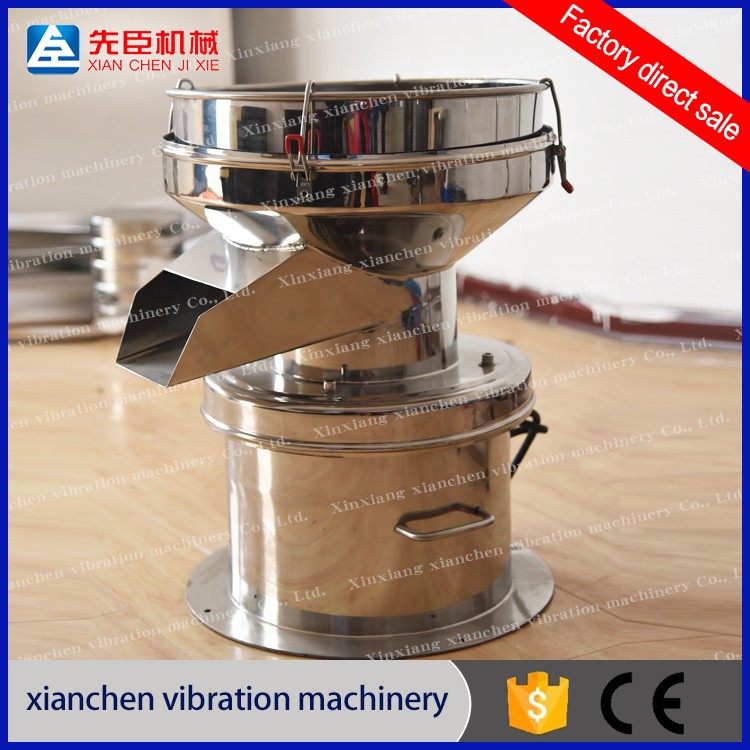

XC450 vibrating filter
