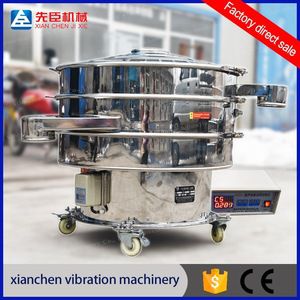

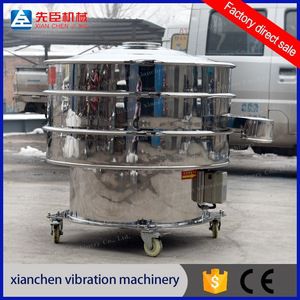

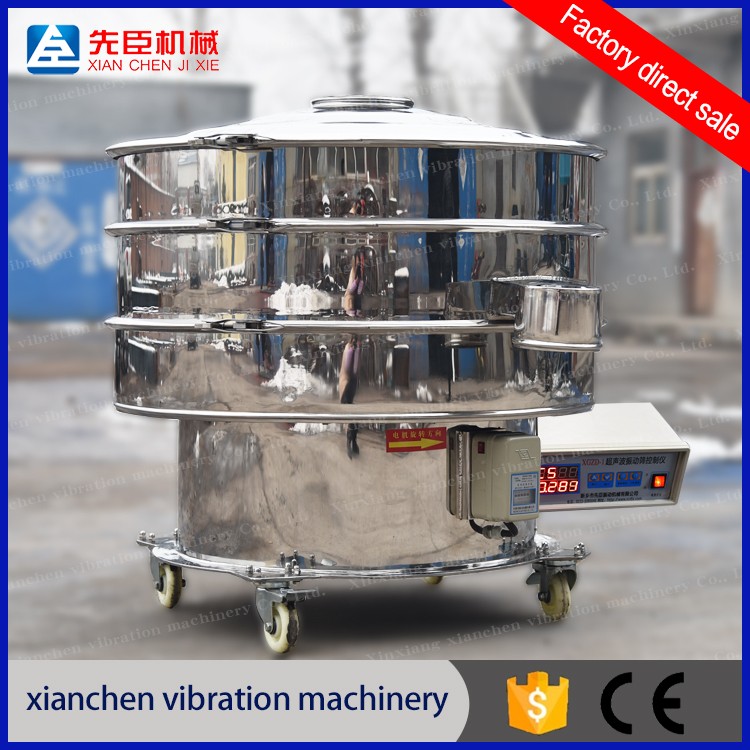

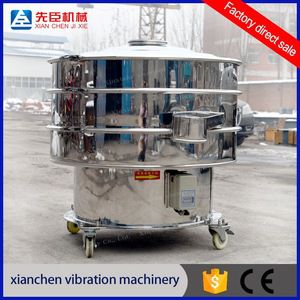

Xinxiang Xianchen Stainless Steel Ultrasonic Vibrating Centrifuge Sieve for Micro-powder
1. Working Principle- XC Series Ultrasonic Vibrating Screen
The function principle of ultrasonic vibrating screen is adding an ultrasonic energy transform device on the screen surface of 3-D vibro separator and filter. This device can make the screen surface superpose ultrahigh frequency vibrational energy, so that it can keep clear of the mesh and achieve the ideal screen situation.Ultrasonic vibrating screen is usually used in screening superfine powder which the ordinary vibrating screen can not solved.

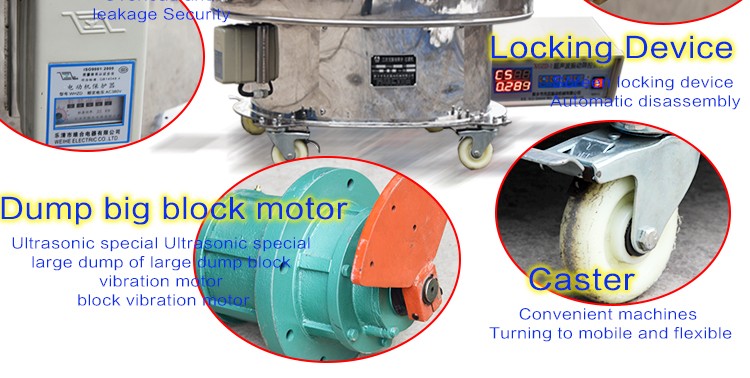

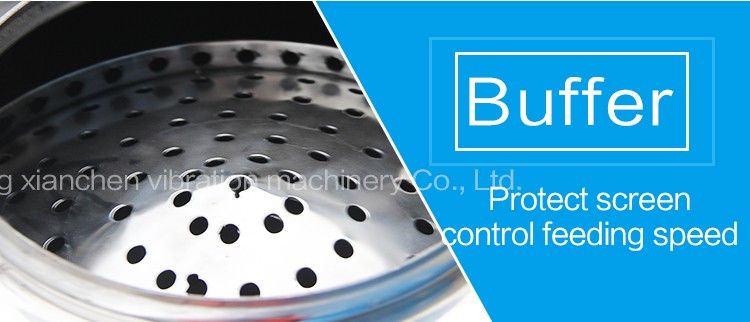

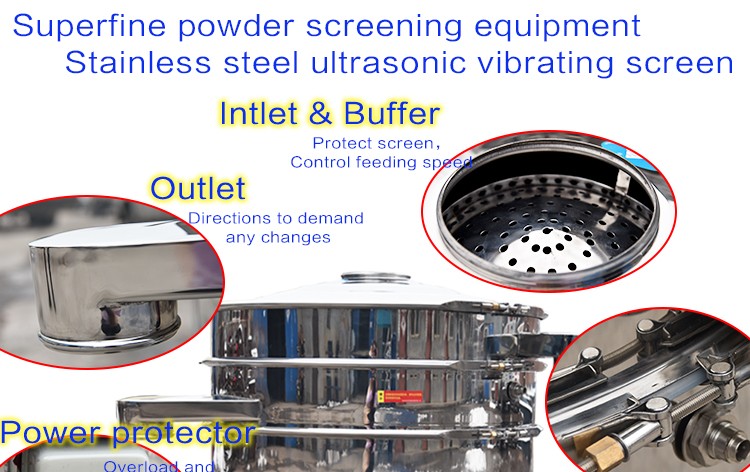

2. Structure Details- XC Series Ultrasonic Vibrating Screen
3. Features- XC Series Ultrasonic Vibrating Screen
1) Outstanding screening capacity and higher screening precision, realizes the high-accuracy screening, and screening precision can increase by 1-70%, the output can increase by 0.5-10 time.
2) It prevents the strainer from jamming effectively, the material difficult to sieve won’t stop up mesh. It can control the narrow range of particle size.
3) It can solve the screening problems of strong absorbing, apt to reunite, high-static, light proportion supplies.
4) It can ensure that the properties of screening materials remain unchanged.
5) Inputting digital signal to achieve the automatic tracking of frequency.
6) High-effective energy conversion of transducer (up to foreign counterparts’ standard).
7) 24 hours of continuous work and needn’t to cool the control powder and transducer (up to the international standard of same products).

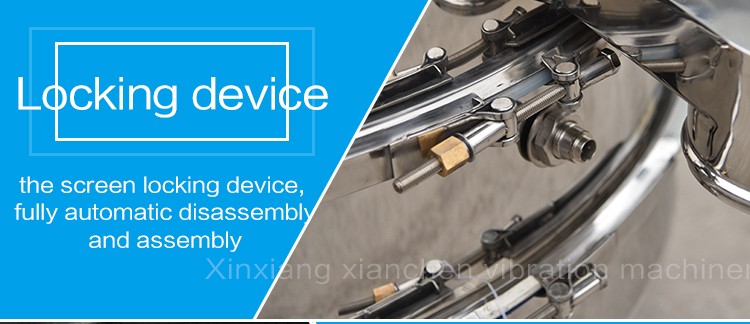

8) Transducer and the screen are connected with spiral buckle, easy disassembly, cleaning.
9) Separated structure, have resonant rings, effectual, the screen mesh is long-lived.
10) It can screen powder of 25µm, and filter liquid of 10µm.
4. Application- XC Series Ultrasonic Vibrating Screen
1) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
2) Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
3) Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice,
4) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc. Ultrasonic Vibrating Screen
5) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
4. Technical Parameters- XC Series Ultrasonic Vibrating Screen
Model | Power | Diameter | Dimension | Decks |
XC-600-1S XC-600-2S |
0.35kw |
550mm | 800*800*680 800*800*780 | 1 2 |
XC-800-1S XC-800-2S |
0.55 kw |
750mm | 900*900*780 900*900*930 | 1 2 |
XC-1000-1S XC-1000-2S |
0.75 kw |
950mm | 1160*1160*880 1160*1160*1030 | 1 2 |
XC-1200-1S XC-1200-2S |
1.5 kw |
1150 mm | 1360*1360*980 1360*1360*1160 | 1 2 |
XC-1500-1S XC-1500-2S |
1.75kw |
1450mm | 1850*1850*1130 1850*1850*1330 | 1 2 |
Xinxiang Xianchen Vibration Machinery Co,. Ltd ,which is established in the year of 2009, located in China biggest machinery manufacture base Henan province, is a professional vibration machinery manufactures which specializes in the production of sieving equipments, conveying equipments, crushing equipments and feeding equipments as well as relevant parts. we committed to solve all kinds of sieving problem.
Our tenet: "market oriented, technology based, quality of survival, innovation and development ".We have passed ISO9001:2008 certification. Under the guide of international quality management system, our products have won not only good reputation in china but also applauses by foreign clients like United States, Germany, Turkey, Indonesia and so on.

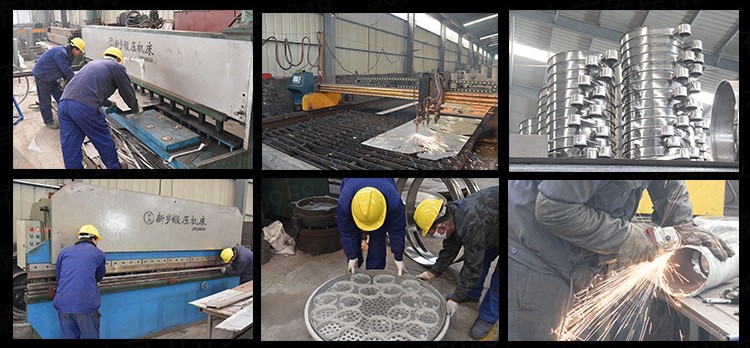

5. Workshop Process
6. Exhibition Visitors
7. Certificate
1. First, the vibrating screen empty running 48 hours before packing;
2. Then to observe whether the motor heating, the machine whether there is noise and so on;
3. Finally, to pack and shipment when fully meet requirements.
Pictures will be taken before delivery.
1. Pre-sale service:
a. In order to let each customer know better about the performance and requirements, we provide these services
b. To send each potential customer the detailed production information and company profile
c. According the user’s different needs, we work to recommend and guide for them
d. To help them select the appropriate equipment
2. Service during sale:
a. Do good communication with customers, so that each part can exchange the information.
b. Deliver on time as per the contract clause.
3. After-sale service:
a. To track the customer’s feedback after receiving the equipment
b. Any product quality we receive, the technical personnel will guide to solve the problem
c. All the products have three guarantees
d. Provide technical exchanges
e. Do well about the work of maintenance and service
1. How to choose the machine?
a: Customers who are familiar with technical performance and parameters can directly order.
Note: You had better send us the pictures you have ever used.
b: Customers who need us to choose the models, please follow the information, tell us:
• Name and feature of the raw material?
• Aim of using: get rid of impurity, filtration, grading
• Handling capacity: kg /h, L/h
• The raw material size: (mesh or mm)
• How many final materials you want, or how many layer you need?
Note: You had better send us the relevant pictures about the details.
2.How many kinds of material are supported?
• All stainless steel (304, 316L)
• All carbon steel Q235
• Contact part Stainless steel
3.Is it special requirement available?
This machine also could be customized by clients' specific production line requirement.
Welcome to inquiry!
