GKH Series Horizontal Sodium Bicarbonate Siphon Peeler Centrifuge

GKH series is kind of horizontal peeler/scraper discharge and siphon filtering centrifuge with full automatic control and continuous cycling operation.

Technical Feature

  • New
  • Centrifuge
  • solid liquid separation
  • Hunan, China (Mainland)
  • Zhongyi
  • GKH1250
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$20~30

PRIMARY PARAMETERS

Condition
New
Type
Centrifuge
Product Type
solid liquid separation
Place of Origin
Hunan, China (Mainland)
Brand Name
Zhongyi
Model Number
GKH1250
Voltage
380v/220v/400v
Power(W)
90kw
Weight
11500kg
Dimension(L*W*H)
2870*2470*1955 mm
Certification
ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Name
GKH Series Horizontal Sodium Bicarbonate Siphon Peeler Centrifuge
Sepration Type
Solid liquid separation/cleaning/dewatering
Bowl Dia
1250 mm
Separating factor
1005
Feed Capacity
450kg
Machine type
Horizontal siphon scraper Filter Centrifuge
Discharge type
automatic siphon scraper desicharge
Bearing
FAG and SKF
Explosion proof system
Customized
Capacity of Volume
355 L

DETAIL DESCRIPTION

Product Description

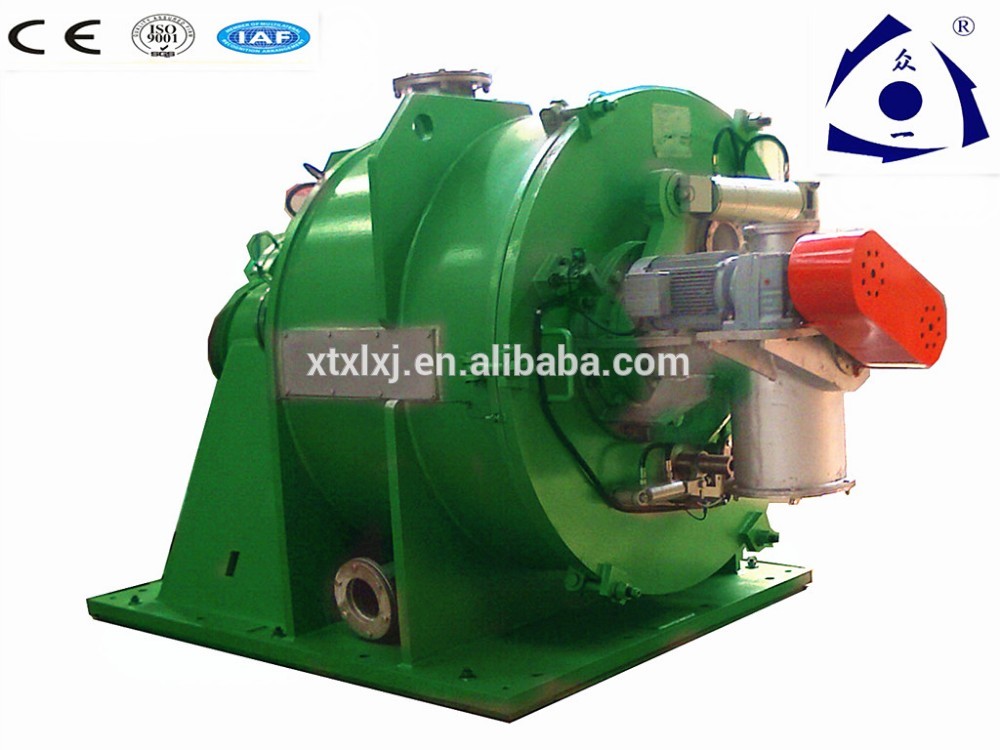

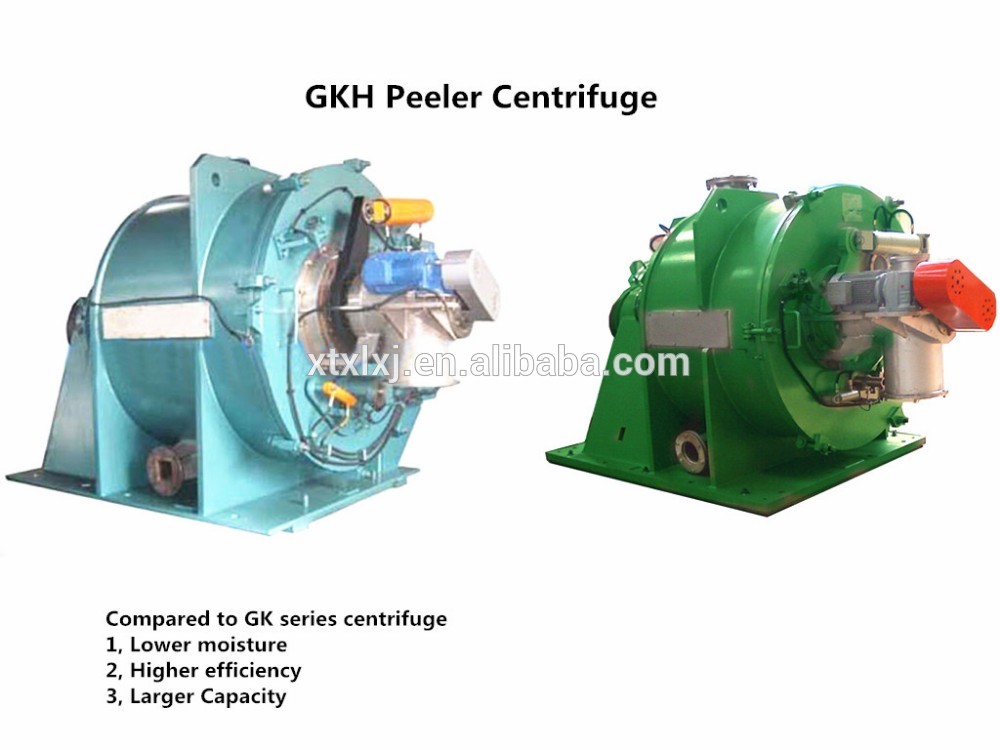

GKH Series Horizontal  Sodium Bicarbonate Siphon Peeler Centrifuge  with Model GKH1250









Working Principle

Introduction

GKH series is kind of horizontal peeler/scraper discharge and siphon filtering centrifuge with full automatic control and continuous cycling operation. It can accomplish the whole processing of feeding, separating ,washing ,dehydrating and washing the mesh at full speed

It main applies for kinds of suspension material , especially that are sticky poder material  like starch, soda ash, PVC, NaCl, fertilizer and so on , widely used in food,pharmacy, industry, chemistry .

GKH Series are centrifuges are capable of full automatic (PC controller) . Matching electric and hydraulic controller , it can control all the process of  the feeding ,separating ,washing and discharge at full speed



Principle

The main motor drives the inside and outside bowl at full speed, the materials to be separated fed into the bowl, under the huge centrifugal force, the liquid phases go through the filtering bag and the inside bowl and gathering at the gap between the two bowl, the liquid phase continuously go across the room of siphon, and finally move out the machine (centrifuge). At the same time, the solid phase stay at the inside bowl and are becoming the filter cake. Stop feeding when reach the max. loading capacity, continuously separate and wash until being over, the scraper automatic rotate and discharge the solid phase out of the machine, after self-cleaning , begin the next cycling

Applications

It appliy to Chemical, food , pharmaceutical, plastic, pesticide,sodium bicarbonate,sodium carbonate,calcium carbonate and other industries

Topical products

Starch

Citric acid

Amino acid

PVC

Anthracene



Features

1.It adopts frequecy converter and PLC control,equipped with human-machine interface and electrical-hydraulic system which can automatic accomplish the whole processing of feeding, separating, washing, discharging and washing the mesh( filter bag)

2 The machine works more stable by adoping the frequency converter,there are perfect protection system  with feeding level , rotary speed testing, and series protection for vibration,opening and locking door, motor overheat, scraper alll these can make the maching more safer.

3. Full sealed and explosion proof design equipped with automatic ventilation system meeting with GMP pharmaceutical standard and also applies to the explosive and poisonous materials

4. Weld shell with high strengh,compact structure and light weight

5. There are all round and no dead angle for internal and external surface by polishing, supporting for CIP/SIP cleaning

6. Huge load capacity

7. Moisture decreased notably



 Working Condition

1 The materials to be separated are suspend liquid ,solid-liquid and so on .

2 There are density contract of the suspended liquid

3 the concentration of the solid phase >20%, while that of the liquid phase < 10-2Pa.s . and the diameter of the solid phase > 0.015mm

4 Working temperature: no more than 110 c



Optional Parameter

1 Material contactedthe liquid to be separated : Carbon steel(G), Corrosion resisting steel (N), Titanium(I), Metal coat (J), Rubber ,and so on

2 Motor Type: General motor or explosion proof motor

3 Speed controller: AC frequency , electromagetric or mechanical belt

4 The range of speed difference: 10 r/m - 50 r/m

5 Discharge: Mother liquid and washing solution can be discharged mixed or separately

6 All the machine made match the GMP standard

7 Design and produce all customized

Techincal Parameter
