High Performance LLW Horizontal Screw Industrial Centrifuge Organic Glass Separator

LLW Series is kind of horizontal Spiral Discharge and Continuous Operation Filter Centrifuge.

Technical Feature

  • New
  • Centrifuge
  • separation
  • Hunan, China (Mainland)
  • Zhongyi
  • llw350
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$25~30

PRIMARY PARAMETERS

Condition
New
Type
Centrifuge
Product Type
separation
Place of Origin
Hunan, China (Mainland)
Brand Name
Zhongyi
Model Number
llw350
Voltage
220v/380V/440v/460v/50hz/60hz
Power(W)
7.5kw/11kw
Weight
990kg
Dimension(L*W*H)
1241*1260*1528 mm
Certification
ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Name
LLW Horizontal Screw Industrial Centrifuge Organic Glass Separator
Sepration Type
Solid liquid /suspension separation/dewatering
Bowl Dia
350 mm
Application
Chemical/Food/Pharmaceutical/industrial
Machine type
Horizontal Filter Centrifuge
Discharge type
spiral discharge
Bearing
FAG and SKF
Explosion proof system
Customized
Operation
automatic continuous operation

DETAIL DESCRIPTION

Product Description

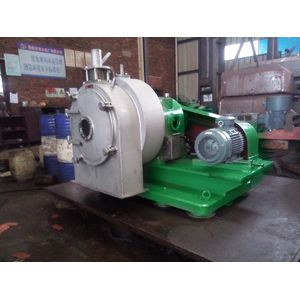

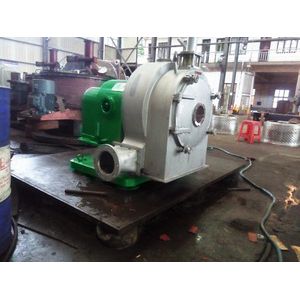

LLW Series Horizontal Screw Industrial Centrifuge Organic Glass Separator ( Model LLW 350)

LLW Scroll Discharge Screen Centrifuge



Working Principle

 LLW Series is kind of horizontal Spiral Discharge and Continuous Operation Filter Centrifuge.

 The motor drives the basket as well as the feeding spiral in the same vertical line at different high speed. The materials to be separated go continuously into the feeding pipe and distribute on the wall of the bowl, under the action of the centrifugal force, the liquid goes through the bowl, while the solid staying the bowl form the filter residue . and it goes continuously through the basket and move out of the machine under the combined action of the conic surface component force of the centrifugal force and the spiral feeding pipe.

 Applications

It is applicable for two-phase (solid-liquid) sunspendsion separation in the chemical, pharmaceutical, environmental protection, mining, food and other industries.

1. Oil &gas drilling mud/fluid control

2. Industrial and municipal wastewater treatment

3. Fine Chemical slurry

4. Coal and minerals (float wash of extractive coal and dewatering of coal mud)

5. Pharmaceutical industry (antibiotic)

6. Food processing

-Olive oil, palm oil, avocado oil;

-Wine, fruit juice;

-Starch; Surimi ;

-Soybean and wheat protein

-Shellfish

Features

LLW series are capable of the continuously operation of feeding, separating, washing and discharge at full speed.

1. compact structure,

2. minute extension

3. Continuous operation

4. Stepless speed

5. High load capacity

6. Wide range of application

7. Low moisture content in the filter cake

 Working Condition

1 The materials to be seprated are suspend liquid ,solid-liquid and so on .

2 There are density contract of the suspended liquid

3 The range of  the concentration: 10- 80%, and the diameter of the solid phase is 0.1-5 mm

4 Working temperature: no more than 100 c

Optional Parameter

1 Material contactedthe liquid to be separated : Carbon steel(G), Corrosion resisting steel (N), Titanium(I), Metal coat (J), Rubber ,and so on

2 Motor Type: General motor or explosion proof motor

3 Speed controller: AC frequency , electromagetric or mechanical belt

4 The range of speed difference: 10 r/m - 50 r/m

5 Discharge: Mother liquid and washing solution can be discharged mixed or separately

6 All the machine made match the GMP standard

7 Design and produce all customized
