Rotary Spray Atomizer Powder Spray Drying Machine

Spray drying process is the widest used in the liquid forming process and in drying industry.

Technical Feature

  • New
  • Spray Drying Equipment
  • Liaoning, China (Mainland)
  • WANDA
  • LPG100
  • Design for different country
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Condition
New
Type
Spray Drying Equipment
Place of Origin
Liaoning, China (Mainland)
Brand Name
WANDA
Model Number
LPG100
Voltage
Design for different country
Power(W)
81KW
Dimension(L*W*H)
4.6*4.2*6 m
Weight
2000KG
Certification
ISO9001
Warranty
One Year
After-sales Service Provided
Engineers available to service machinery overseas
Application
Chemical,food,pharmacutical industy
Material
Stainless Steel
Capacity
100kg/h water evaporation
Heating source
Steam, electricity, gas, oil
Raw material
Liquid Form Material
Installation
Engineer's Guidance
Model
LPG100
Drying Oven Application
hot air furnace
Advantage
Low Consumption High Efficiency
Name
Centrifugal Spray Drying Equipment

DETAIL DESCRIPTION

Rotary Spray Atomizer Powder Spray Drying Machine







Description

Spray drying process is the widest used in the liquid forming process and in drying industry. The drying technology is most suitable for powder, particle products from materials, such as,solution, emulsion, SC and pumpable paste states material. For this reason, when the particle size and distribution of the final product, their residual water contents, the stacking density and particle shape must meet the precision standard, spray drying process is one of the most desired processes.



Principle

After filtering and heating, the air enters into air distributor on top of the Drying Equipment. The hot air enters into the drying tower spiral form and uniformly. By .passing through high-speed centrifugal atomizer on top of tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads. Through the very short time of contacting with heating air, the material can be dried into final products. The final products will be discharged continuously from the bottom of drying tower and from cyclone separator

The waste gas will be discharged from exhaust fan.


Features

At a high speed of drying, after spraying of the material liquid, the surface area will be increased greatly. In the hot air flow, 95%-98% of water can be evaporated at a moment. The time of completing the drying needs only several seconds.

This is especially suitable for drying the heat sensitive materials. Its final products own good uniformity, mobility, dissolving capacity. And the final products are high in their purity and good in their quality.

The production procedures are simple and the operation and control are easy.The liquid with the moisture contents 40-60% (for special materials, the contents may reach 90%) can be dried into the powder of particle products for one time. After drying, there is no need for crushing and sieving, so as to reduce operation procedures in the production and to enhance product purity. The product particle diameters, looseness and water contents can be adjusted through changing the operation condition in a certain scope. It is very convenient to carry out control and management.



Working principle





Product technical parameter

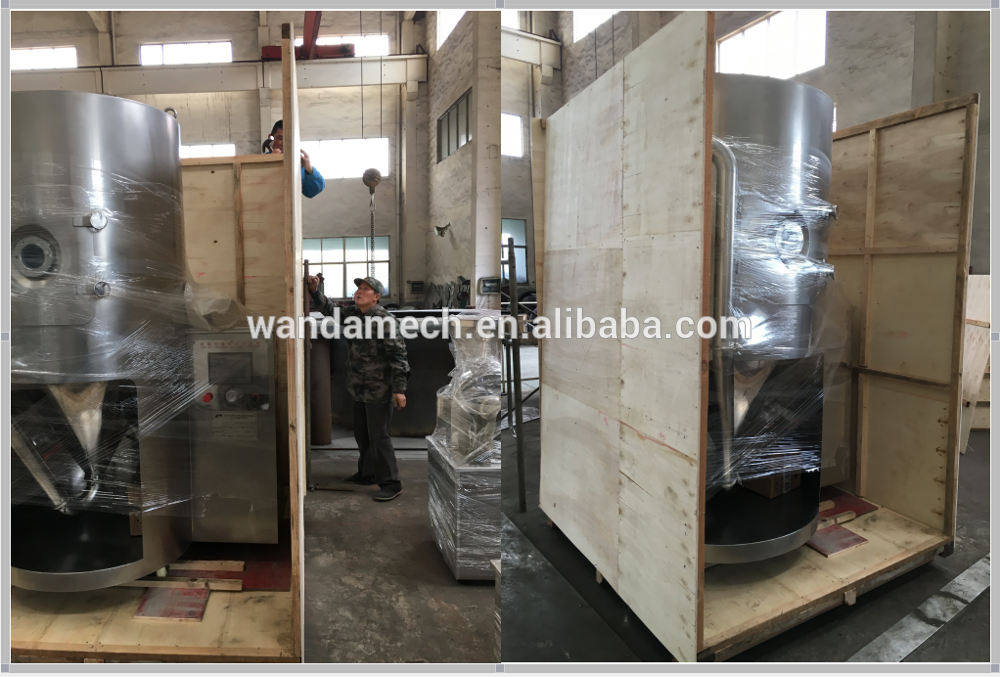

Product picture



Some import parts



















 LIAOYANG WANDA MACHINERY CO.,LTD is specialized in design, development, manufacture and sale of pharmaceutical, chemical and packaging machinery.Our products include filter, centrifuge, mixer, tablet press machine, granulator, dryer, packing machine, teabag packing machine, etc. Looking to the future with a commitment to design innovation and quality products, supported by an outstanding level of customer service. The unexcelled quality medical machinery can be easily obtained from us because we maintain the quality and standard of our products from incoming raw materials to the finished products. Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process. Our research and development wing is our asset that develops and incorporates innovative ideas and products. Our Team is full of experienced and qualified professionals, who have sound knowledge about the quality of our medical machinery. Our products are far sold to Europe, U.S.A., and the southeast Asia. They are well received by customers both at home and abroad.
