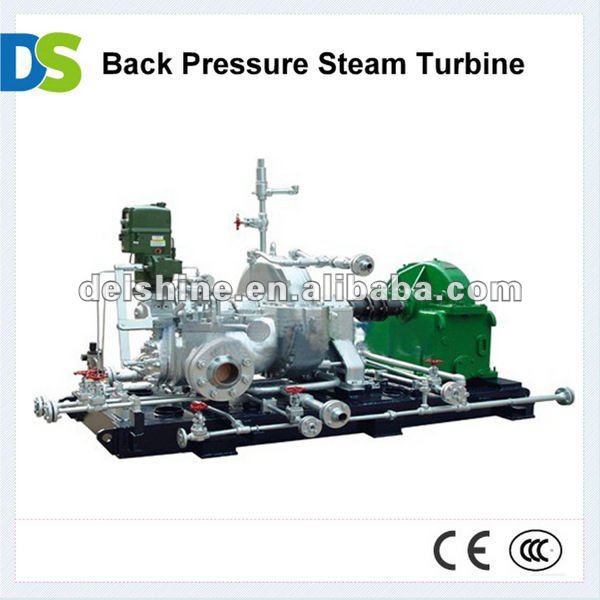

HB Series Single Stage Back Pressure Steam Turbine

HB Series Turbine are well-sale turbines in the United States, the Netherlands, France, Italy, Japan and other countries, and the industrial production of mapping and research-driven turbine, absorbing the new technological achievements,  which forming a

Technical Feature

  • Zhejiang, China (Mainland)
  • D&S
  • 15 ~ 1000KW
  • up to 440℃
  • 6300r/min
  • 4.0 ~ 5.0MPa
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin
Zhejiang, China (Mainland)
Brand Name
D&S
Output power
15 ~ 1000KW
Inlet temperature
up to 440u2103
Max Speed
6300r/min
Inlet pressure
4.0 ~ 5.0MPa
Outlet pressure
0.72 ~ 1.14MP
Maximum exhaust pressure
up to 2.1MPa
Output Power
15 ~ 1000KW

DETAIL DESCRIPTION

Name:HB Series Single Stage Back Pressure Steam Turbine



Performance range:

Output power: 15--1000kW
Max Speed: up to 6300r/min
Inlet  pressure: 4.0--5.0MPa

Outlet pressure:0.72 ~ 1.14MP

Maximum exhaust pressure:up to 2.1MPa

Inlet  temperature: up to 40degree



Summary

    HB Series Turbine are well-sale turbines in the United States, the Netherlands, France, Italy, Japan and other countries, and the industrial production of mapping and research-driven turbine, absorbing the new technological achievements,  which forming a series of independent research and production of steam turbine.

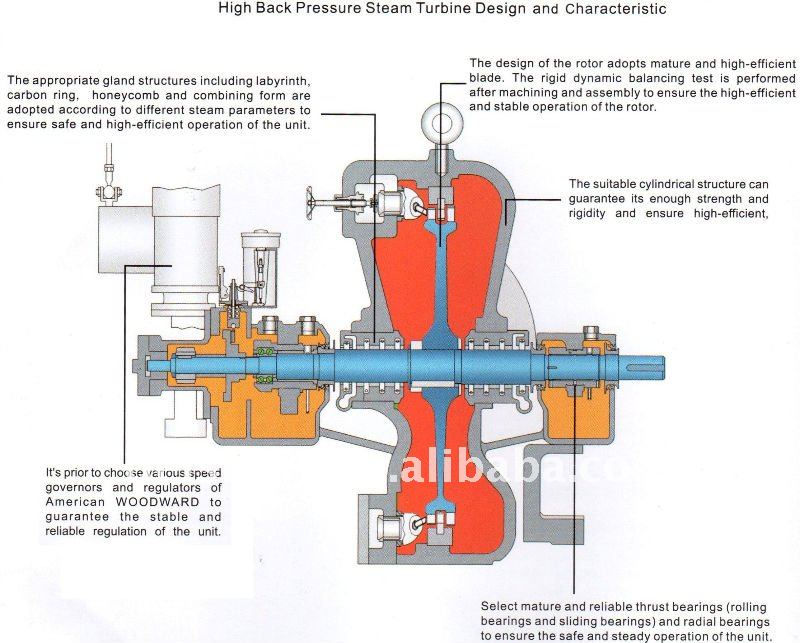

    HBA, HBH for the horizontal structure, HBAV for the vertical structure, single-stage two-speed impeller re-listed. It has a compact structure, reasonable design, reliable operation and high efficiency. Turbine is one of CRLH series high back-pressure steam for the company's design parameters, selection of special materials and special structure design and development, the maximum exhaust pressure up to 2.1MPa. Can completely replace the imported models.



Application

    Mainly used in driven pumps, compressors, blowers and small generators of electric power, petroleum, emical, paper-making and other industries, and it can be used for electric power production by waste heat recovery.
