ISO Automatic Sorbitol Production Plant

Glucose syrup adjustment: Glucose syrup coming from crystal glucose plant is adjusted to the qualified DS with water.

Technical Feature

  • Tianjin, China (Mainland)
  • MecKey
  • MKGL-116E
  • Liquid
  • Extractor
  • Engineers available to service machinery overseas
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin
Tianjin, China (Mainland)
Brand Name
MecKey
Model Number
MKGL-116E
Application
Liquid
Type
Extractor
After-sales Service Provided
Engineers available to service machinery overseas
Project
Sorbitol Production Plant
Process
Continuous Flow Hydrogenation Reacting
Control
Automatic/Semi-automatic/Manual
Installation Time
2-4 months
Delivery Time
3-4 months
Finished Project Qty.
26 pcs
ROI
1.8-2.8 years
Construction Area
800 to 3200 square meter
Worker Qty.
10-12 persions per shift
More Info
Special design based on customer's requirement

DETAIL DESCRIPTION

Sorbitol Production Plant,

Sorbitol From Crystal Glucose!!!





PROCESS FLOW BLACK DIAGRAM





Sorbitol liquid:

Item

Standard

Result

Character

Crystal, sweetness, viscous liquid

Qualified

DS/%

69.0-71.0

70.2

Mass fraction/%

≥70.0

78.6

PH

5.0-7.5

6.0

Relative density

1.285-1.315

1.297

Reducing sugar (glucose)/%

≤0.21

0.17

Total sugar (glucose)/%

≤8.0

7.25

Residue/%

≤0.10

0.03

Heavy metal (Pb)/%

≤0.0005

<0.0005

Pb/%

≤0.0001

<0.0001

As/%

≤0.0002

<0.0002

Chloride (Cl)/%

≤0.001

<0.001

Sulphate (SO2)/%

≤0.005

<0.005

Ni/%

≤0.0002

<0.0002



 DESCRIPTION OF CRYSTAL GLUCOSE TO SORBITOL



General process description:

(1) Glucose syrup adjustment: Glucose syrup coming from crystal glucose plant is adjusted to the qualified DS with water.



(2) Decoloring and filtration: The qualified glucose syrup is sent to the decoloring tank for decoloring with active carbon input. After that the AC will be removed by the filter, and the syrup will be sent to the next section.



(3) Ion exchange: Tiny foreign items and bad odor is removed via ion exchanger. Then, the material will be qualified to the hydrogenation section.

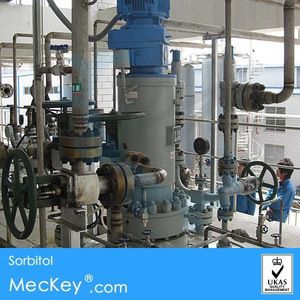

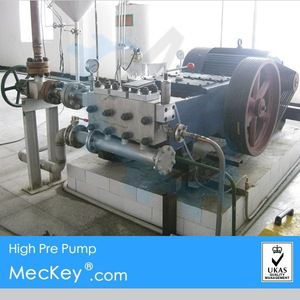

(4) Hydrogenation: After burdening, the qualified material is sent to the reactor with aid of high pre. H2. By the reaction, the material will be turned to the crude sorbitol. Then the material is sent to the flash tank for cooling. And then it will be sent to the sedimentation tank.

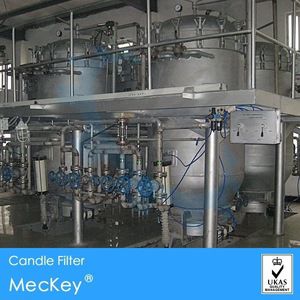

(5) Sedimentation and filtration: After sedimentation tank, the accelerant is separated from the crude sorbitol, then recycled and reuse. The material is sent to the next section after filtration.



(6) Decoloring and filtration: The crude alcohol is sent to the decoloring tank for decoloring with active carbon input. After that the AC will be removed by the filter, and the syrup will be sent to the next section.



(7) Ion exchange: Tiny foreign items and bad odor is removed via ion exchanger. By this way, the material will be turned to be qualified.



(8) Evaporation: The qualified sorbitol is totally cleaned through safety filter, then it is sent to evaporator for concentrating to reach the required DS as final product.



PRODUCT CHARACTERISTICS



1)  Implementations of automation systems, computer 2D/3D modeling and advanced

    CAD/CAM technology.



2)  Turn-key plants for the production of wheat starch, corn starch, potato starch and

    starch derivatives such as glucose, fructose, crystallized glucose, sorbitol,

    etc.



3)  Professional engineers with ample on-the-job training experience.



4)  A team working at site for the guidance of installing, commission works.



5)  Low water and low energy consumption design to save your money.



6)  Equipments are made of stainless steel, one year warranty, life-long maintenance.
