Rasping Mill Grinding Mill
Application
Cassava flour, cassava/potato/sweet potato starch processing mechinery.
Description
The potato rasper is used to crush/grind the potato into starch slurry and granules.
The rasper is widely used in potato starch processing industry for potato crushing. Potatoes spin into the gap of stator and rotor in which it is crushed into granules and the uniformity starch slurry falls into the basin via the sieve.
The device is made of stainless steel, the rotor is made of special stainless steel by forging process, and rotor is installed on hundreds of specially designed, two-way combination rasps with the thickness of 1.25mm.
MecKey manufactures the equipment for customers wholeheartedly. The distance between the stator and rotor is only 1 ~ 2mm, which ensures higher efficiency of the rasping mill. The simple rasp clamping system ensures rasp works in the best position. And it is very simple to assemble and disassemble the mill, there is no need to use special tools, general staff is OK. The capacity of the entire production line can be adjusted by adjustable speed feeding conveyor.
Characteristics of the equipment
1. The equipment is made of stainless steel to prevent starch pollution;
2. The equipment surface is treated in a special process, beautiful and oil & dirt resistance;
3. The capacity of the entire production line can be adjusted by adjustable speed feeding conveyor.
4. The device features simple and reasonable design, beautiful appearance and stable quality, easily maintenance.
Technical Specification
Model | MKRM300 | MKRM400 | MKRM500 |
Rotary speed r/min | 2100 | 2100 | 2100 |
Rotor width mm | 300 | 400 | 500 |
Power kW | 90~110 | 132~160 | 160~200 |
Capacity t/h | 18 | 25 | 32 |
Weight kg | 2500 | 2600 | 3500 |
Outside dimension mm | 2170×1090×1190 | 2170×1190×1190 | 2170×1290×1190 |

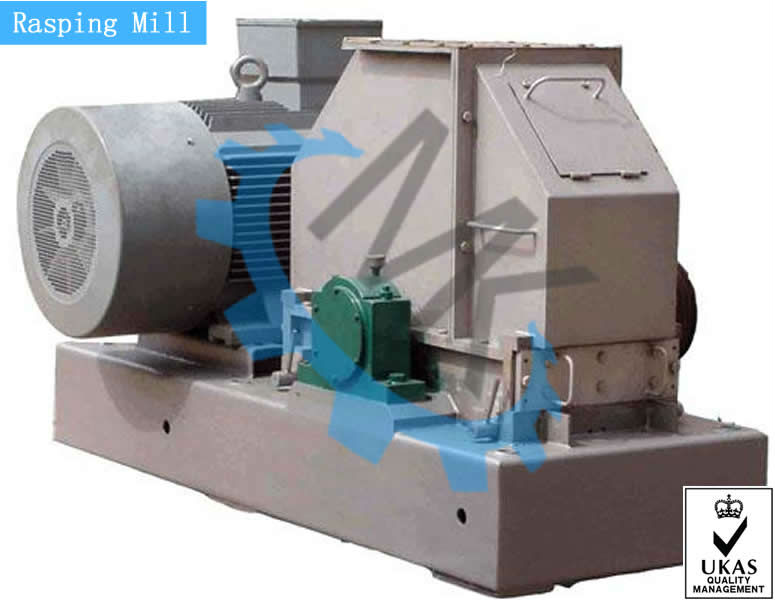

Equipment photos
Our team
1.Strong and vigorous technological force member.
2.Abundant theory and practical experience.
3.The zealous service and fast reply.
4.The scientific management system.
Our team will offer specialized and kindly service for you from end to end.
Our culture
Keeping Integrity, Profession, Efficiency, and Win-Win as our spirit and making friends through business contacts as our goal, we are always ready to provide satisfactory services for our friends from all over the world.
WE ARE WHERE YOU ARE!
By choosing MecKey you are choosing the perfect long-term partner for your daily operations. Our service network can reach you wherever you are.
Payment item
As a routine, 30% down payment, 70% by L/C at sight, 10% Bank guarantee supplied by Meckey. Workable details should be as per discussion based on the contract.
Delivery
Both your destination port or China port are available according to terms of contract. All exporting transactions can be on our duty.
Warranty
The warranty period of each item of equipment delivered shall be 12 months from the date of the signing ACCEPTANCE MEMO or 17 months from the date of shipment, whichever is earlier.
About Meckey
Meckey is a shareholding company in corn, wheat, potato, cassava, processing area, secialized in project engineering & construction, equipment manufacturing, technical support & sevices to customers worldwide.
Turnkey solutions
1. Corn grain to corn starch, gluten, germ/corn oil, fiber.
2. Wheat flour to vital gluten, A starch, B starch.
3. Potato(cassava) to potato(cassava) starch, cassava flour.
4. Starch to glucose, DMH, sorbitol, HFCS55.
5. Corn flour(rice) to glucose, DMH, sorbitol, HFCS55.
6. Modified starch, maltodextrin, potato flakes.
7. L-lysine, GSM.
