wheat processing plant to make flour and somalina
Capacity | wheat processing plant to make flour and somalina |
Raw grain | Wheat |
Final product | wheat flour, bran |
Flour extraction rate | 70-85% |
( wheat processing plant to make flour and somalina )
Introductions

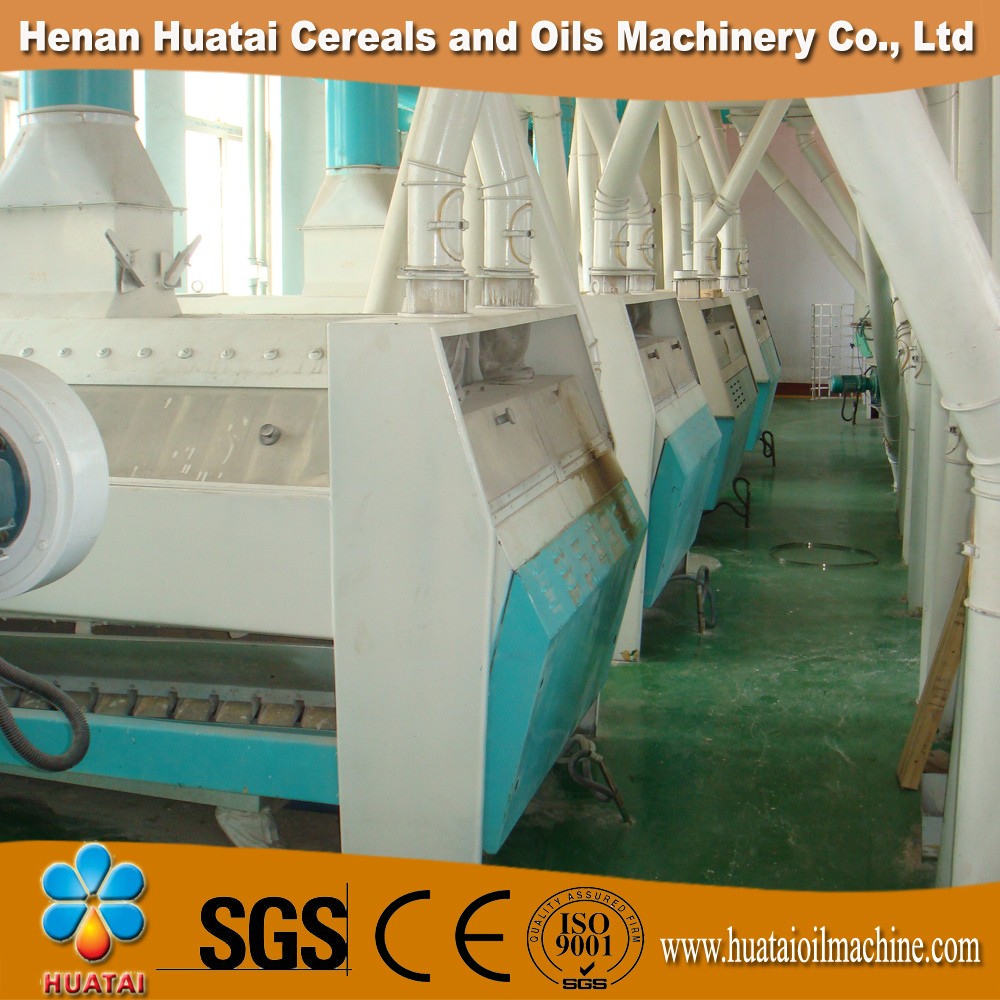

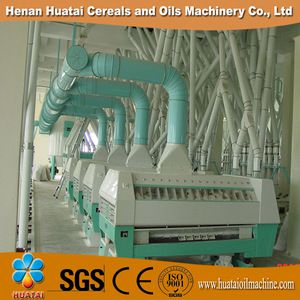

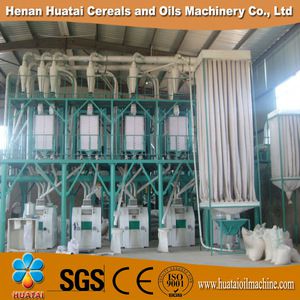

The machines of this series of compact wheat flour mill are designed and installed together with the steel structure support. The main support structure is made of three levels: the roller mills are located on the ground floor; the sifters are installed on the first floor and the cyclones and pneumatic pipes are on the second floor. The materials from the roller mill are lifting by a pneumatic transferring system. The whole mill can be installed in a warehouse and individual designs can meet customer different requirements.
Reference of wheat processing plant to make flour and somalina
Type | Final Products | Power Requirement(KW) | Power Consumption /Per Ton(KW/h) | Capacity (Per ton of wheat/24h) | Workshop Dimension |
100t |
| 360 | 70-74 | 100 | 37*7.5*18.5 |
120t | special purpose | 470 | 70-74 | 120 | 40*7.5*18.5 |
140t | flour | 560 | 68-72 | 140 | 41*7.5*19 |
160t | Grade I | 650 | 68-72 | 160 | 47*7.5*19 |
200t | Grade II | 740 | 65-71 | 200 | 49*7.5*19 |
220t | Standard | 850 | 65-71 | 220 | 49*12*22.5 |
250t | (Co-production) | 960 | 65-71 | 250 | 51.5*12*23.5 |
300t |
| 1170 | 65-71 | 300 | 61.5*12*27.5 |
350t |
| 1210 | 65-71 | 350 | 61.5*12*27.5 |
400t |
| 1675 | 65-70 | 400 | 72*12*29 |
500t |
| 1950 | 65-70 | 500 | 87*12*30 |

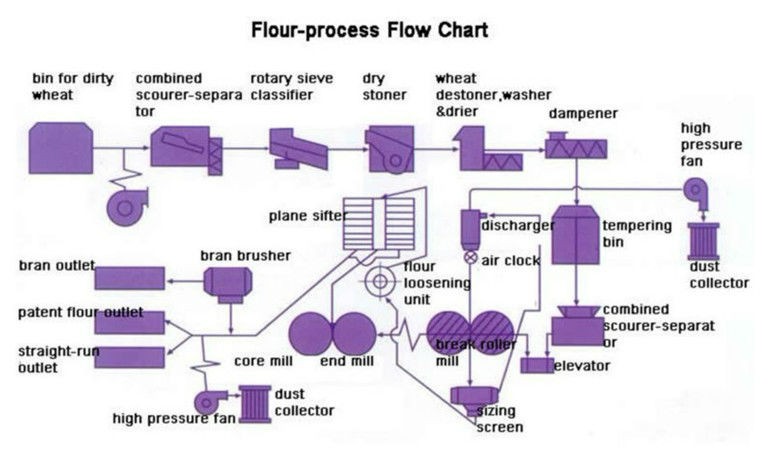

Working process: Cleaning→Milling→Packing
Cleaning Section:
Main equipment | Attention |
| Remove large, small and magnetic impurities from raw material, wheat, corn, maize raw material. |
Milling section:
Main equipment | Attention |
| Mill material into small sizes, classify different sizes through double sifter series, brush the flour from bran to improve flour extraction rate. |

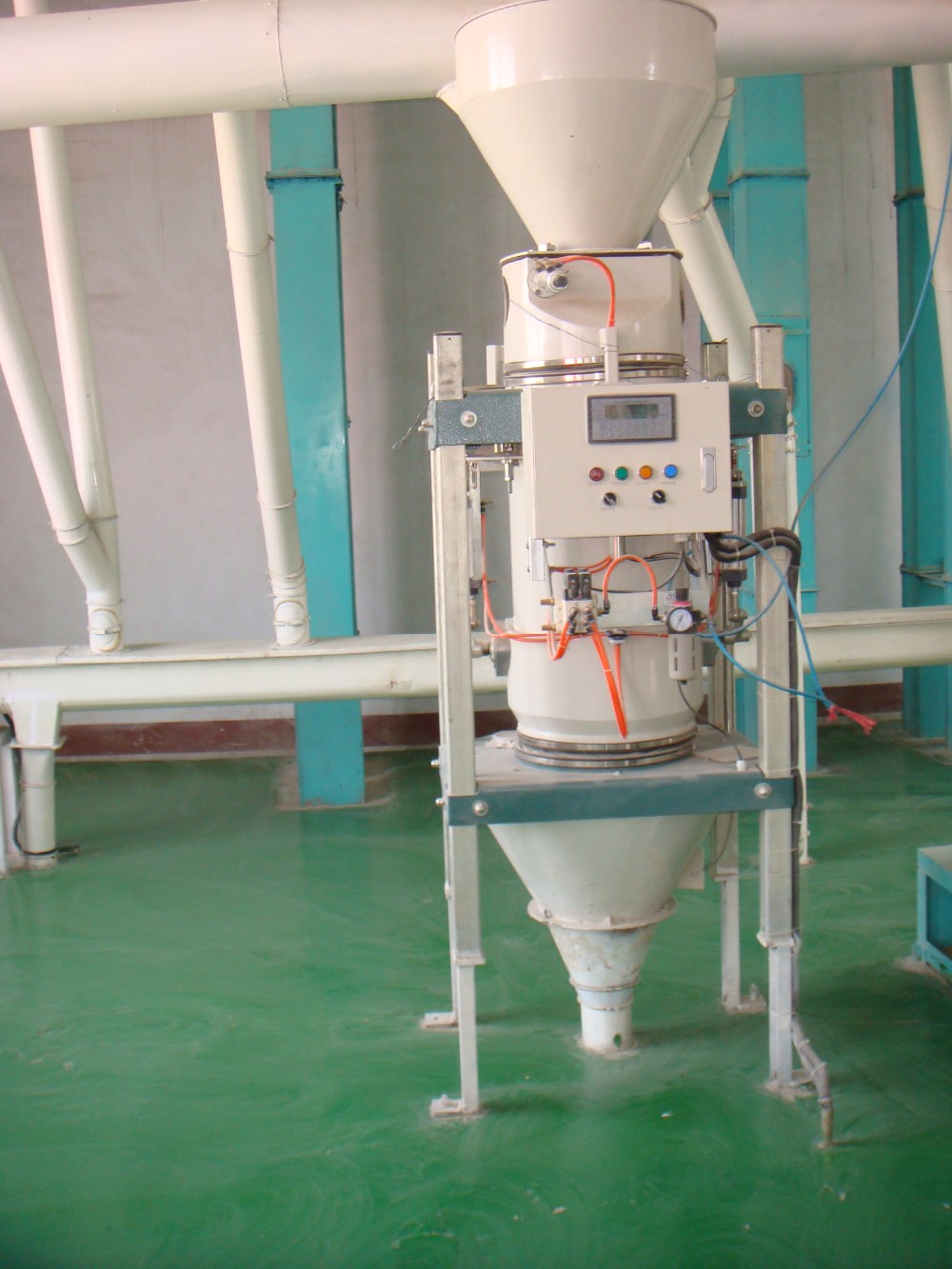

Packing Section:
Main equipment | Attention |
 | There are manual packing and automatic packing, depend on you. |
- Especially suitable for the investor who is a freshman in wheat processing.
- Economical choice.
Features of wheat processing plant to make flour and somalina

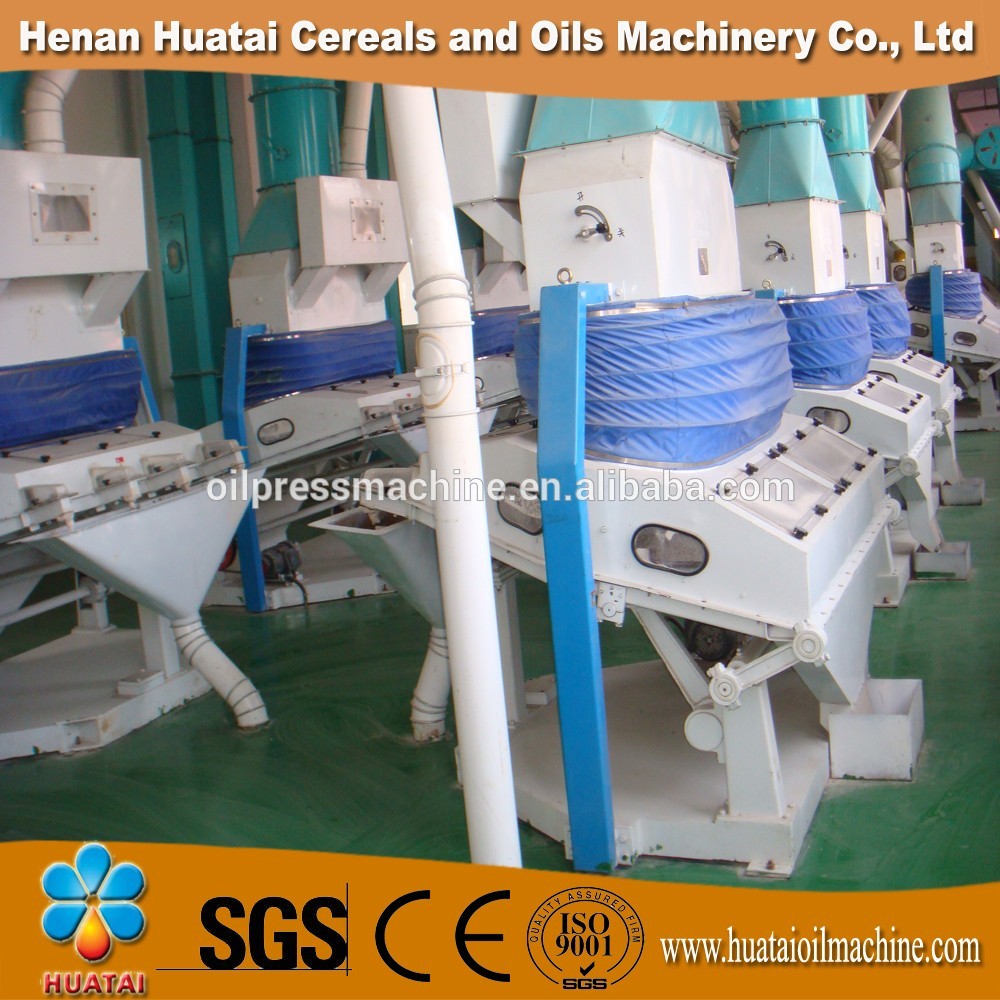

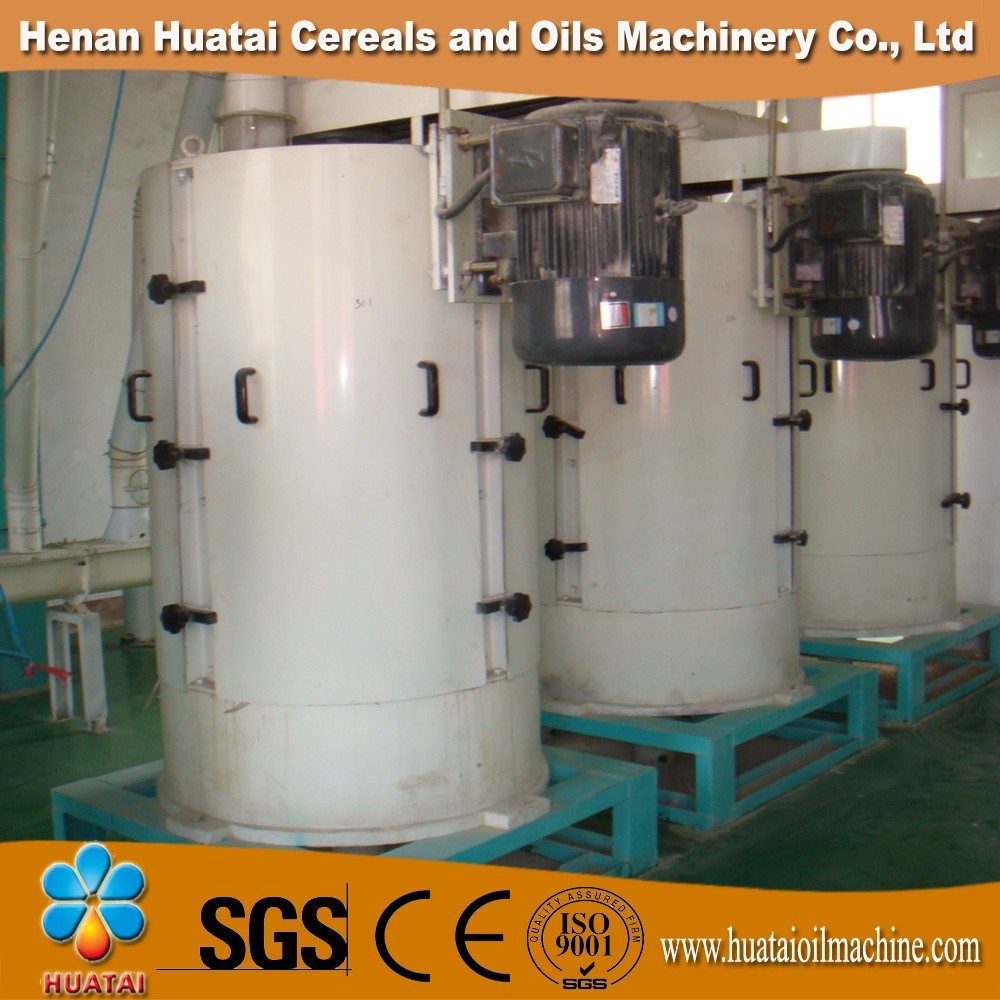

1) High efficiency cleaning equipment, including aspiration seperator, vibro sparator,destoner,
dempener,disc cylinder selector.
2)Advanced milling equipment, including pneumatic control roller mill, electric control roller mill,

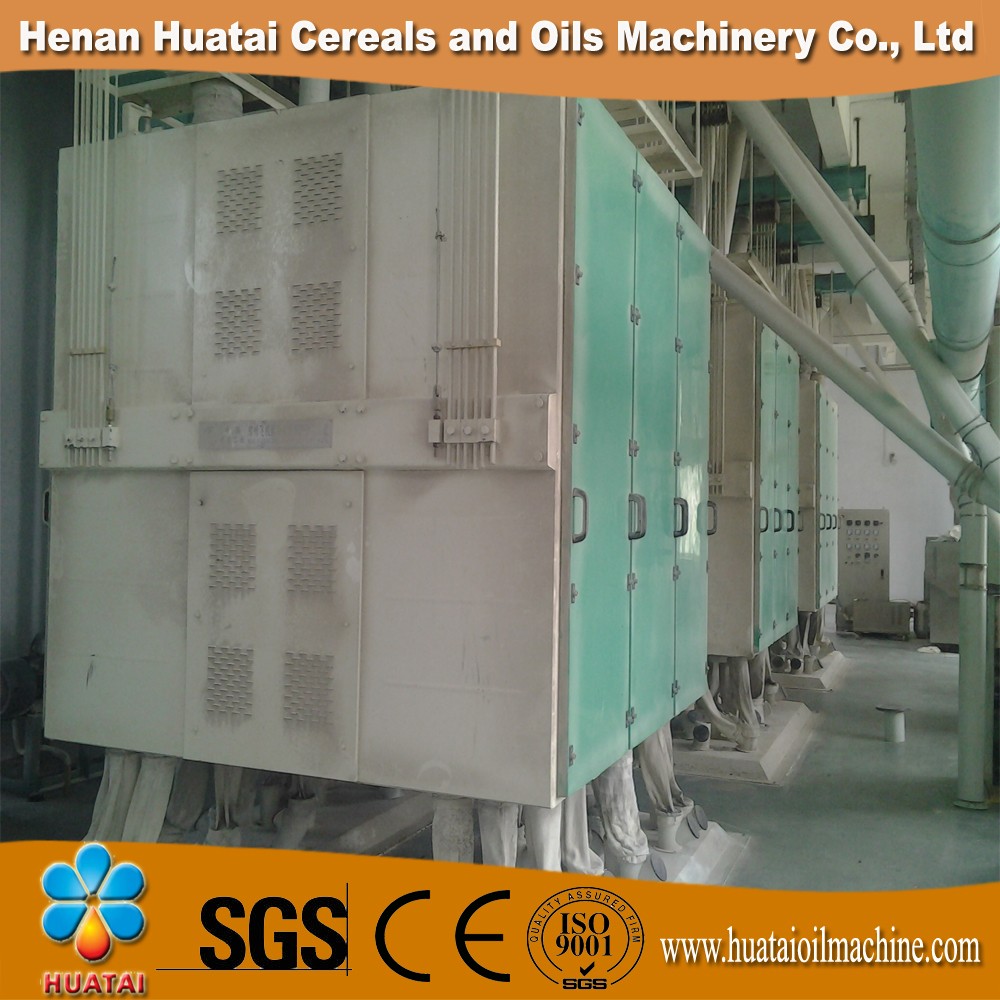

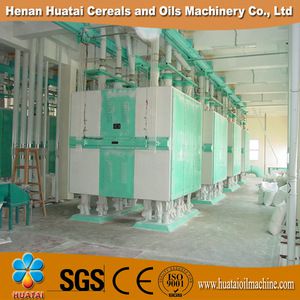

square plansifter, purifier.
3) High precision packing machine from 5kg to 50kg.
Welcome to
-- Henan Huatai Cereals & Oils Machinery Co., Ltd.
--- Our equipments have got ISO9001, SGS, CE, IAF and CNAS certifications.
-- 22 items national patents, 6 international prizes, etc.
--- Best aftersale service,sound logistics department
--Specialized in researching, designing, manufacturing, installation
-- Oversea customers include Bolivia, Sudan, Kazakhstan, Russia, Tajikistan,
Malaysia, Indonesia, Bangladesh, Egypt, Vietnam, Thailand, Burma, etc.
--Professional engineer teams are always here ready to help you
wheat processing plant to make flour and somalina
1. Are you the real manfuacture or just trading company?
Our company is a professional manufacturer of oil machines, glad to make a brief introduction of our company for you!
- 60 years' experience
- The largest-scale oil machinery manufacturer in China, covering an area of 100,000 square meters, owning more than 580 staffs.
- The outstanding membership corporate of Chinese cereals and oils association, and they do quality quarantee for us.
- Obtain 23 national patents (including 7 invention patents, 6 international medals, 2 national awards and 2 provincial prizes.
- With 180 person professional R&D team to customize scheme for customers
2.Can we visit the running oil factory?
Yes, we can find running factory for you to visit! Welcome for your coming!
3.Can you do turn-key project?
Yes, we can. We have the experience to undertake big project.
After delivering the equipments, we will offer you all the relevant documents, like manual book, equipments layout,installation drawing and so on. And we will delegate engineers to customer’s place according to customer’s requests to help installing all of the equipments ,commissioning and debugging until the plant running smoothly.
