Industrial powder sifter mill sifter for maize grits plant

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin

Henan, China (Mainland)

Brand Name

Remont

Model Number

MFD series

Type

Grain Processing Equipment

After-sales Service Provided

Engineers available to service machinery overseas

Item Name

Industrial powder sifter mill sifter for maize grits plant

material

stainless steel

function

sieving and refining

color

customized

package

Wooden cases

certification

ISO9001

type

Plansifter machine

application

Starch industry

capacity

1.5-6.0t/h

degree of fineness

99.9%

DETAIL DESCRIPTION

Industrial powder sifter mill sifter for maize grits plant

Product Description

Details of Industrial powder sifter mill sifter for maize grits plant

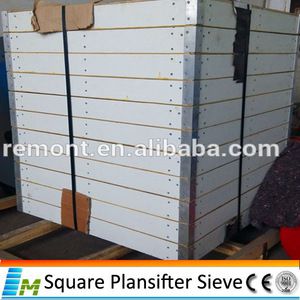

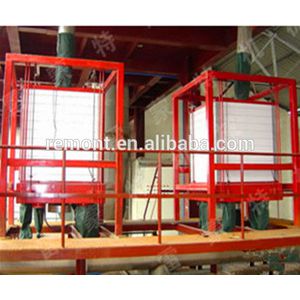

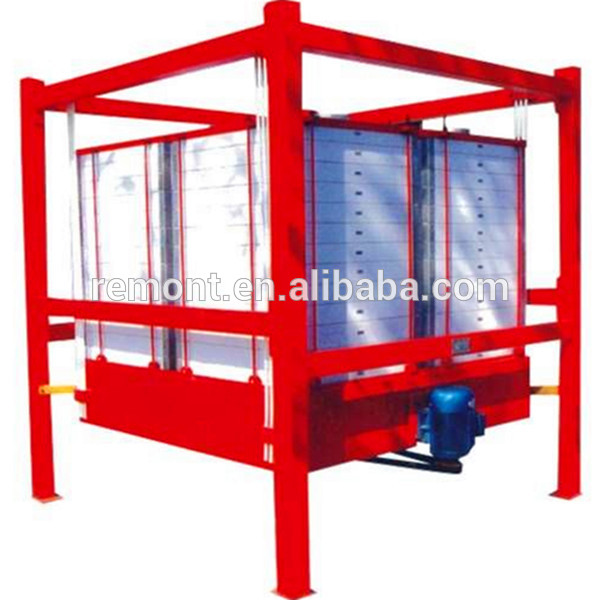

MFD series of high-side screen is a kind of special product of Xinxiang city Remont Machine Co., Ltd. It has been approved by many years’ applications of starch industries at home and abroad that high-side screen is the ideal equipment of screening starch. The equipment is suitable for screening management of starch and powdery materials such as protein powder, feed grains, sugar powder and white gluten. We use the 304 stainless steel which completely meet the food grade needs as the materials, so it can be safely used.

Features of Industrial powder sifter mill sifter for maize grits plant

1.Large output, scope of use is wide; the appearance of the sieve cell is new, strong and durable, it can not only solve the fine starch particles problem but also has a good cooling effect on the dry starch.

2. Long screen way, screen management area is large, do not take up place, high efficiency, low energy consumption, works steadily and easy to maintain.

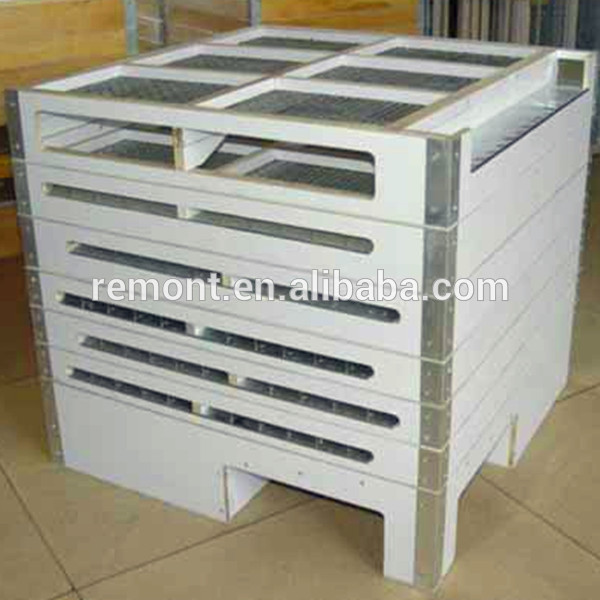

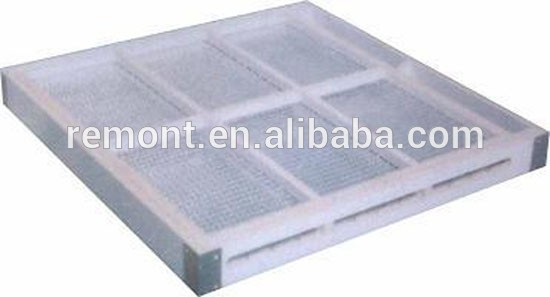

3. Sieve cells are combined together in a professional way, convenient to remove and install, good sealing performance; there are special designed screen and pusher structure in each layer, no block mesh; boom is made of durable stronger glass fiber; after being polished the appearance of the whole equipment is beautiful and nice.

Technical Data

Technical Parameter of Industrial powder sifter mill sifter for maize grits plant

A, The processing capacity :1.5-6 .0 t / h .

B, Fineness: 99.9% (100-mesh sieve corn starch, tapioca starch, modified starch, moisture ≤ 15%, potato starch, water ≤ 21%) .
C, Pure theory sieve area: 2.5-15 square metres.
D, Sieve plane radius of gyration 30-60mm (adjustable) .
E, Power 0.75-2.0Kw .
F, Weight :500-2500Kg / set.
G, Efficiency: Few things on the screen, essentially free of fine powder.

Model	barn	Sieve area(m²)	Power(KW)	capacity(t/h)	Weight(kg)	Dimension(mm)
MFD11088	1	5.2	1.1	3-4	550	150017001800
MFD110120	1	7.1	1.1	4-5	800	190020002200
MFD21088	2	12.6	1.5	5-7	1000	225015202200
