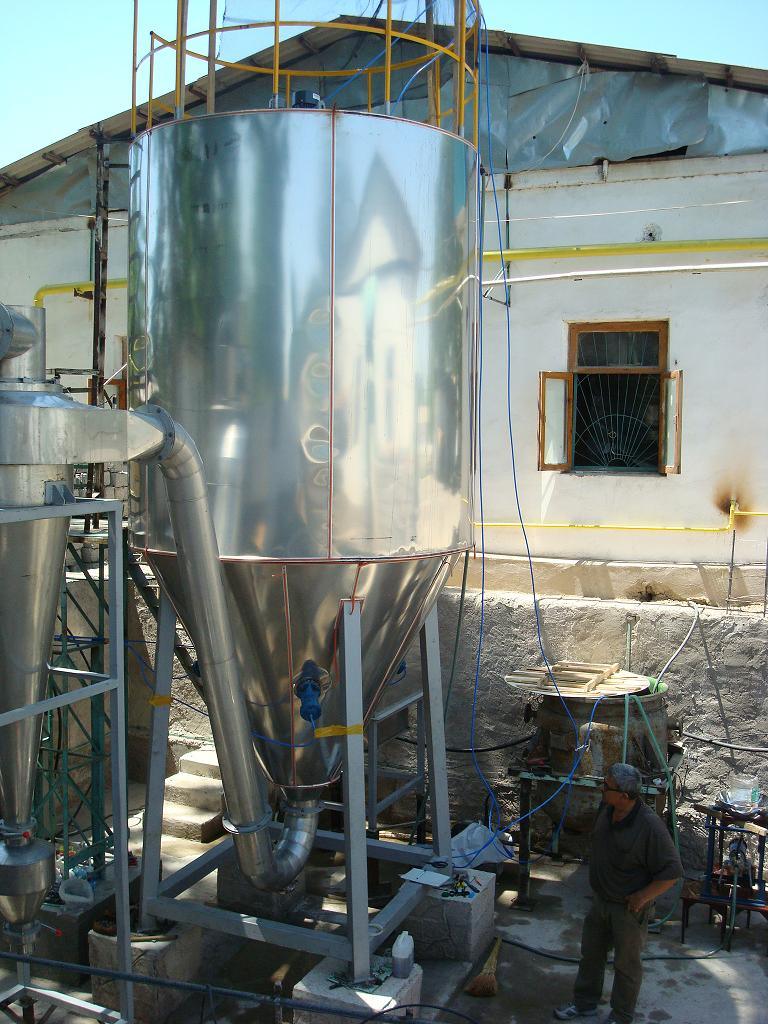

Spray Dryer for Liquid Like Coffee, Milk, Low Energy

Ealed circulation spray drier is a special equipment and is suitable for drying emulsion, suspending liquid, liquor and so on. Particularly it has unique for drying polymers and resins; Dyestuff and pigment; Ceramics, glass; Derust agent; Pesticide;

Technical Feature

  • Shanghai, China
  • 5kg-10000kg
  • L/C, T/T, Western Union, Paypal
  • Transmission
  • Spraying Drier
  • Continuous
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~5

PRIMARY PARAMETERS

Model NO.
LPG
Type of Flow
Cross Flow
Type of Atomization
Rotary Atomization
Sprayer
Centrifugal
Appearance of Dried Sample
Liquid
Trademark
changgan
Transport Package
Plywood
Specification
CE
Origin
China
HS Code
8419399090

DETAIL DESCRIPTION

Spray Dryer for Liquid Like Coffee, Milk, Low Energy
Ealed circulation spray drier is a special equipment and is suitable for drying emulsion, suspending liquid, liquor and so on. Particularly it has unique for drying polymers and resins; Dyestuff and pigment; Ceramics, glass; Derust agent; Pesticide; Carbohydrate, dairy products; Detergent and surfactant; Fertilizer, organic compound, inorganic compound and so on.

Features:
Its dry speed is very quick. In general, it needs 5-15 seconds. It has feature of momentary dry.
Because raw material can be dried momentarily. Especially, it is suitable for drying thermal sensitive raw materials. It can maintain color, smell and smell of raw materials.
Its operation is stable and simple. Its regulation and control is very convenient. It is easy to realize continuous operation.
The distribution, fluidity and solubility of product are good.

Principle of work:
Air is turned into hot air through air filter and heater and enters into hot air distributor at the top of dry chamber and then enters into dry chamber and rotates in the state of helix. At the same time liquid of raw material is sent to centrifugal atomizer at the top of dry chamber pumped by pump through filter, lnwhile liquid of raw material atomizers small drops. Air ad liquid of raw material flow and contact each other fully. The moisture vaporize rapidly. Liquid of raw material is dried into finished product in a short time. The finished product is discharged through cyclone separator at the bottom of drier. The wasted air is exhausted through fan.
itemtypeLPG-5LPG-25LPG-50LPG-100LPG-150LPG-200LPG-500LPG-800-1000
max evaporated zmount of moisture
 kg/h
52550100150200500800-1000
spay typehigh speed centrifugal atomizer
revolution of atomizer rpm25000180001600011000-13000
diameter of atomizer mm50120150by craft
diameter of tower mm0.91.752.32.733.24.7
power of eletric heating kw931.5steam+18steam+36steam+54by craft
heating sourceelectric,stream+electric and oil fuel ,gas fuel,hot air furnace
overall dimension
(L×W×H)m
1.6
×9.1
×1.75
4
×2.7
×4.5
4.5
×2.8
×5.5
5.2
×3.5
×6.7
7
×5.5
×7.2
7.5
×6
×8
12.5
×8
×10
basis ground
