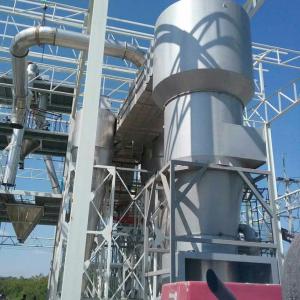

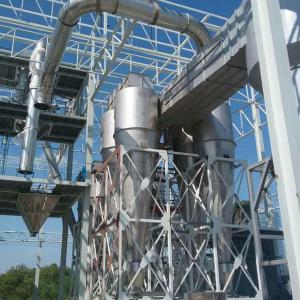

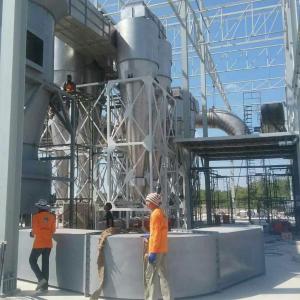

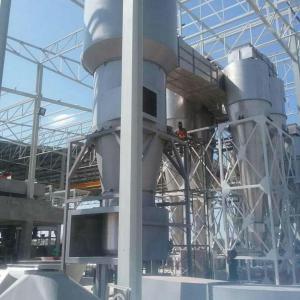

| XSG Series High-Speed Rotating dryer | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Description XSG series flash dryer is developed by our factory, and its' techinology is based on advance techinology adorad. The machine is including many superioity, such as reasonable design, compact stuction,widly utilization,great productive capacity, good quality, high effect and save energy. Drying,grinding and sieve are completed in one euqipment in once time. It eliminate pollution and the techinology is reached international 80' advance level. Features There are many kinds feeding equipment for choosing,and feeding is continue and static. At the bottom of drier, where is high temperature area,heat sensitivity raw material can not contact with heat surface directlu,therefore it solves the carbonized and changed color problems of heat sensitivity raw material. There are air pressure equipment and shaft equipment,so canlonger life of machine. There is special equipment for sharing wind,and raising the amount of amount of hot air. There are rotational flow pieces inside the drying chamber. It is used to control the moisture and granle of raw material to needed level. The density will be added in the machine. Becausw gas speed at circle inside the drying chamber is high and the staying time of raw material is short,high efficiency and quick speed can be realized. It is possible for small equipment to carry out large-scale production. Principle of work Hot ir enters into stirring and crushing and drying chamber from the bottom of drier with suitable atomizing speed. It exerts strong shearing, blowing, floating and rotating effect to raw material. There fore raw material is granulated through centrifuge, shearing, impacting and friction effect. It strengthens the process of gear exchange. At the bottom of drier,the lage and damp granule is crushed under the action of stirer and the granule that is small in partical and con tain less moisture will lift acoompainied with revolving air stream. During the periaod of lift,it is dried further. Because gas and solid two phase flow in rotating and the intertia of solid phase is more than that of gas and the relative velocity between solid and gas phase is large,so it strengthens the process of heat exchange.Therefore the machine has strong drying capacity. Typical customers Gansu tianhong chemical co., ltd. (XSG-14 2 sets) Jiangyin chengxing phosphate chemical group (XSG-10 1 set) Zhejiang fuyang wanzh0u chemical co., ltd. (XSG-6 1 set) Technical parameters
Materials Inorganic compounds: borax, calcium carbonte, hydroxide, copper sulfate oxide, barium carbonate, antimony trioxide, all kinds of metallic hydroxide, all kinds of heavy metallic salt, synthetic cryolite and so on. Organic compounds: fenatrol (insecticde of agrochemicals), cadmium laurate, benzoic acid, germicide, sodium oxalate,c ellulose acetate and so on. Ceramics: kaoline, silicone trioxide, clay and so on. Dyestuff: anthraquinone, black ferric oxide, indigo blue pigment, butyric acid, titanium hydroxide, zinc sulfide, all kinds of intermediate of azo dye-stuff. Foodstuff: soya protein, agglomerative starch, less, tritcin, wheat starch and so on. Technological process |
China Supplier Industrial Hot Air Flow Flash Dryer
XSG Series High-Speed Rotating dryerDescriptionXSG series flash dryer is developed by our factory, and its' techinology is based on advance techinology adorad. The machine is including many superioity, such as reasonable design&com
Technical Feature
- Shanghai, China
- 100-1000kg/H
- L/C, T/T, Paypal
- Combined
- Contra-Flow
- Convective
$0~10
PRIMARY PARAMETERS
Model NO.
XSG
Structure
Air Flow Drier
Appearance of Dried Sample
Cream
Trademark
changgan
Transport Package
Wood Case
Specification
CE SGS
Origin
Changzhou, China
HS Code
8419399090
