Tag:Sanitary Food Grade Chocolate Transfer Lobe Rotor Pump/Gear Pump
Structure
Rotory lobe pump is also named rotary lobe epump, three-lobe pump, sole pump,etc. When the 2 simultaneous reverse rotating rotors(with 2-4 gears)revolve, it produces suction force at the inlet(vacuum),which intakes the material delivered.The 2 rotors divide the rotor housing into many smaller parts and revo-Ive in the sequence of a→b→c→d. When it revolves to position a,only housing I is filled with medium;when it revolves to position b,housing B encloses part of the medium,when it goes to position c,housing A encloses medium,and finally it goes to position d,then housing A,B and II are interlinked and the medium is transported to the outlet.As this process is repeated,medium(material)is transpor-ted continuously.
Technical Parameters
Driving System

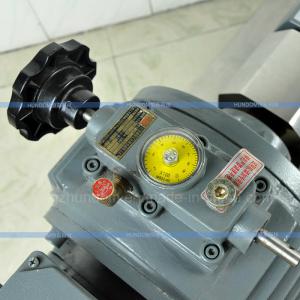

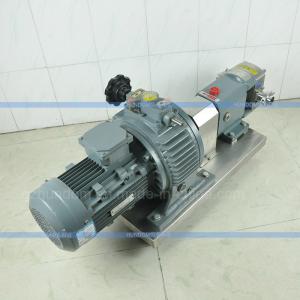

Stepless Speed Regulation . The speed regulator changes the speed by manual adjustment, which is safe, reliable and infinitive flow adjustment. But the non-automatic adjustment is also troublesome. Speed regulating should be done in operation not in shut-off state.
Fix Speed Output Reducer : The driving is easy with constant rotary speed of the rotor,which also leads to non-adjustablity of flow.
Variable Frequency Motor : It realizes both automatic adjusting and infinitive adjustment of flow. It is highly automatic and has large torque in low speed.

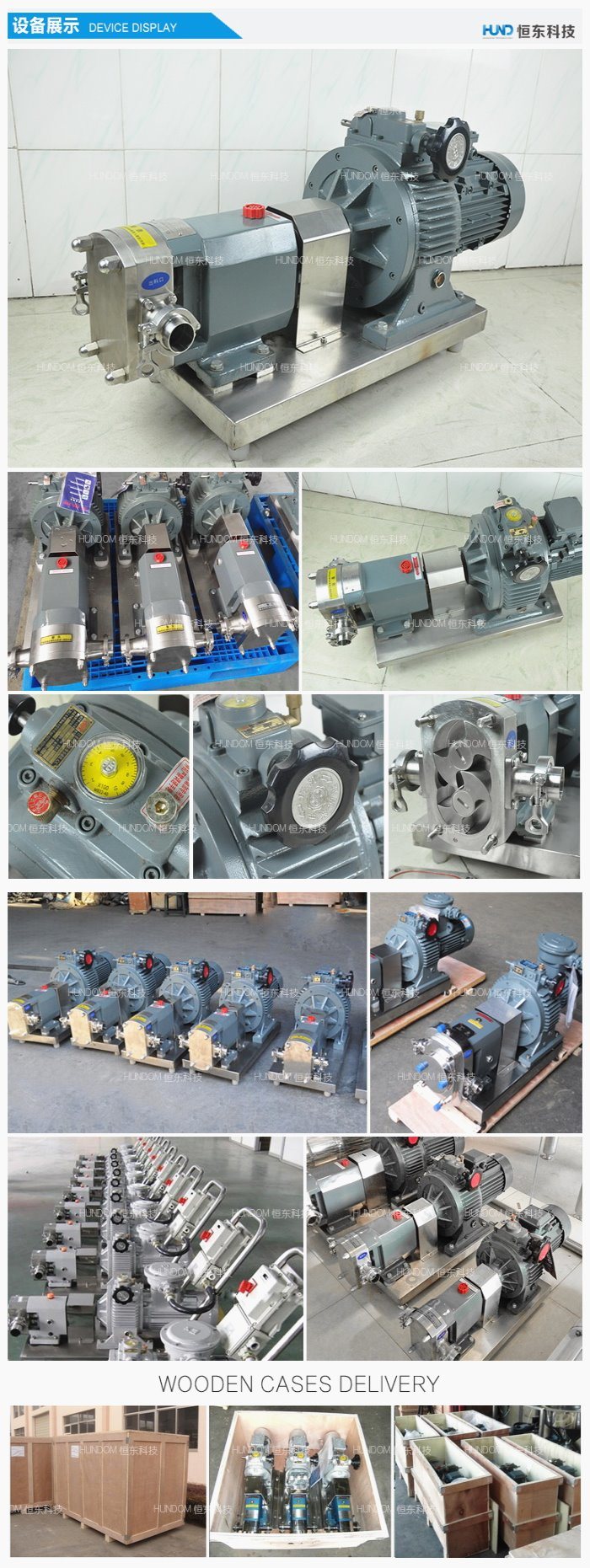

Product Show
Structure
Rotory lobe pump is also named rotary lobe epump, three-lobe pump, sole pump,etc. When the 2 simultaneous reverse rotating rotors(with 2-4 gears)revolve, it produces suction force at the inlet(vacuum),which intakes the material delivered.The 2 rotors divide the rotor housing into many smaller parts and revo-Ive in the sequence of a→b→c→d. When it revolves to position a,only housing I is filled with medium;when it revolves to position b,housing B encloses part of the medium,when it goes to position c,housing A encloses medium,and finally it goes to position d,then housing A,B and II are interlinked and the medium is transported to the outlet.As this process is repeated,medium(material)is transpor-ted continuously.
Technical Parameters
| Model | Capacity(L) | Speed(rpm) | Flow(L/H) | Power(kw) |
| HD-3 | 3 | 200-500 | 300-800 | 0.55 |
| HD-6 | 6 | 200-500 | 650-1600 | 0.75 |
| HD-8 | 8 | 200-500 | 850-2160 | 1.5 |
| HD-12 | 12 | 200-500 | 1300-3200 | 2.2 |
| HD-20 | 20 | 200-500 | 2100-5400 | 3 |
| HD-30 | 30 | 200-400 | 3200-6400 | 4 |
| HD-36 | 36 | 200-400 | 3800-7600 | 4 |
| HD-52 | 52 | 200-400 | 5600-11000 | 5.5 |
| HD-66 | 66 | 200-400 | 7100-14000 | 7.5 |
| HD-78 | 78 | 200-400 | 9000-18000 | 7.5 |
| HD-100 | 100 | 200-400 | 11000-22000 | 11 |
| HD-135 | 125 | 200-400 | 15000-30000 | 15 |
| HD-160 | 160 | 200-400 | 17000-34000 | 18.5 |
Stepless Speed Regulation . The speed regulator changes the speed by manual adjustment, which is safe, reliable and infinitive flow adjustment. But the non-automatic adjustment is also troublesome. Speed regulating should be done in operation not in shut-off state.
Fix Speed Output Reducer : The driving is easy with constant rotary speed of the rotor,which also leads to non-adjustablity of flow.
Variable Frequency Motor : It realizes both automatic adjusting and infinitive adjustment of flow. It is highly automatic and has large torque in low speed.
Product Show
About HUNDOM
Guangzhou Hundom Machinery Equipment Co., Ltd.has been manufacturing colloid mill, jacketed kettle, rotor pump, mixing tank and other machinery equipment for 14 years , putting quality as our first consideration. We own a team with rich experience in the field, if you have any question, contact us for the professional answer.
