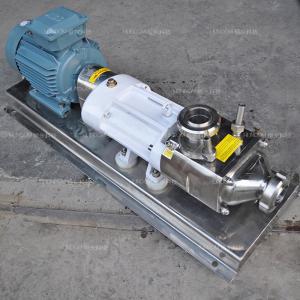

Tag:Sanitary Food Industry Inox Double Screw Delivery Pump
This product is applicable for feeding medium which has following properties:
High solid content(diameter of the biggest particle is 50mm)or no solid content
Medium with all viscosities(1mPas~3,000,000mPas)
Medium that is easy to be generated and swelled
Shearing sensitive medium
Medium with/without self lubrication
Erosive medium(PH=0~14)
Adhesive medium
Toxicity hazard medium

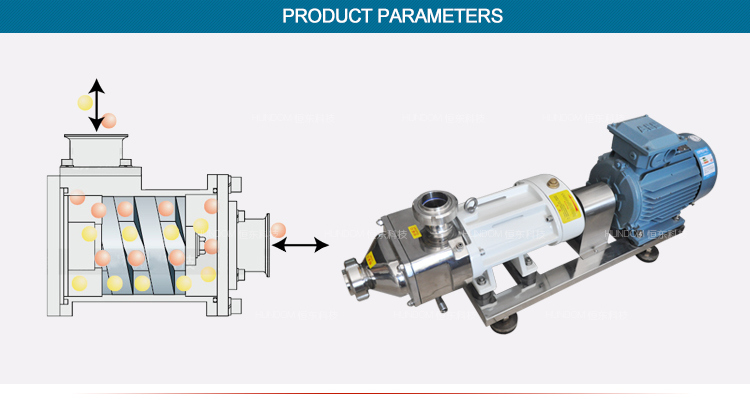

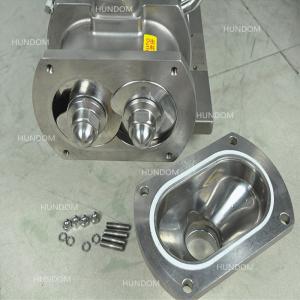

Structure
Twin screw pumps are used for cautious, low-pulsation conveying of liquids. The pumps can
convey abrasive media and solids up to max. Ø29mm. Due to the high speed of 100 to 3000rpm, viscous media and cleaning fluids can be conveyed with one pump. The pump are capable of CIP and SIP.
Advantages
>>Pumping and cleaning processes with one pump
>>Low shearing to the pumped fluid, gentle handling
>>Minimal maintenance, reduction in cleaning pumps and pipes
>>Saves space through this 2 in 1 technology
>>Abrasion-free and safe to run dry ( option )
>>Extremely favorable cost effectiveness
Characteristics
Capacity: Up to 100m³/h
Working pressure: Up to 16 Bar
RPM:up to 3600rpm
Viscosity:Up to 100000 cst
Working temperature:130ºC
Cooling and heating jacket Available
Technical Parameters

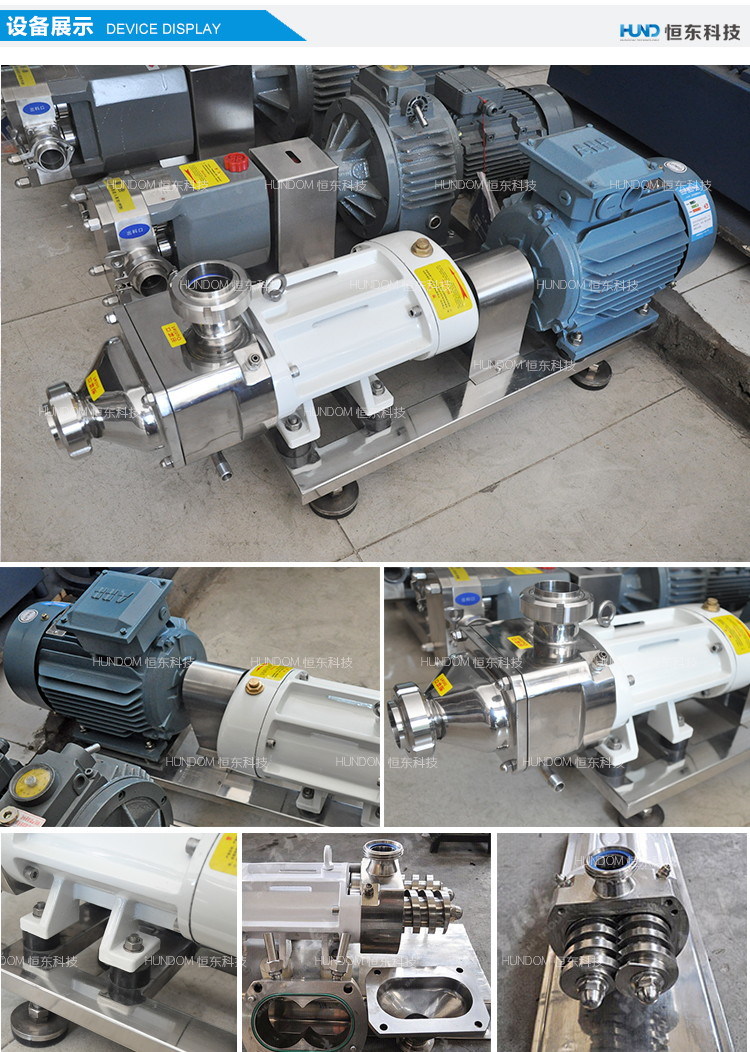

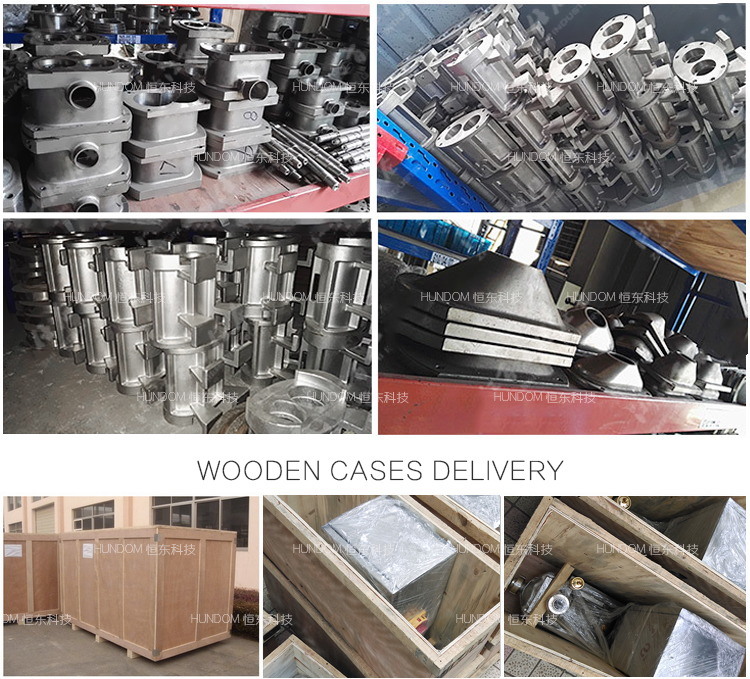

Product Show
About HUNDOM
Guangzhou Hundom Machinery Equipment Co., Ltd.has been manufacturing colloid mill, jacketed kettle, rotor pump, mixing tank and other machinery equipment for 14 years , putting quality as our first consideration. We own a team with rich experience in the field, if you have any question, contact us for the professional answer.
Guangzhou Hundom Machinery Technology Co.,Ltd.
Add:No. 115, No. 7, Haina Industrial Park, Shibi Street, Panyu District, Guangzhou City, Guangdong Province, China
Sales:Shum
Tel:+86-020-89081205
Mobile:+86-138-2213-4643
Welcome to visit our factory !
This product is applicable for feeding medium which has following properties:
High solid content(diameter of the biggest particle is 50mm)or no solid content
Medium with all viscosities(1mPas~3,000,000mPas)
Medium that is easy to be generated and swelled
Shearing sensitive medium
Medium with/without self lubrication
Erosive medium(PH=0~14)
Adhesive medium
Toxicity hazard medium
Structure
Twin screw pumps are used for cautious, low-pulsation conveying of liquids. The pumps can
convey abrasive media and solids up to max. Ø29mm. Due to the high speed of 100 to 3000rpm, viscous media and cleaning fluids can be conveyed with one pump. The pump are capable of CIP and SIP.
Advantages
>>Pumping and cleaning processes with one pump
>>Low shearing to the pumped fluid, gentle handling
>>Minimal maintenance, reduction in cleaning pumps and pipes
>>Saves space through this 2 in 1 technology
>>Abrasion-free and safe to run dry ( option )
>>Extremely favorable cost effectiveness
Characteristics
Capacity: Up to 100m³/h
Working pressure: Up to 16 Bar
RPM:up to 3600rpm
Viscosity:Up to 100000 cst
Working temperature:130ºC
Cooling and heating jacket Available
Technical Parameters
| Model | Flow(T/H) | In/Outlet(mm) | Weight | Speed(rpm) | Outlet Pressure(Mpa) | Power(kw) |
| HD03-15 | 0-3 | 1.5''/1.25'' | 72 | 1480 | ≤1.0 | 1.5 |
| HD05-22 | 0-5 | 2'' | 81 | ≤1.5 | 2.2 | |
| HD10-40 | 0-10 | 2.5'' | 96 | 4.0 | ||
| HD15-55 | 0-15 | 3'' | 112 | 5.5 | ||
| HD20-75 | 0-20 | 3'' | 132 | 7.5 |
