Brief introduction
YL high viscosity liquid transfer pump is self-priming, valveless, positive displacement pumps. With the characteristics of low rotation speed and high output torque, pump shows its talents to transfer high viscosity liquid products. Its unique working principle works with a strong drive system, ensure that the pump can output a strong driving torque at low speed, can guarantee continuous, non-stagnant transferring, and ensure that the transferred material not damage, viscosity can be as high as 1500000CP.

Pump Applications
Consumer chemicals: AES, LAS, AOS, K12, glycerol, fatty alcohol, bathing shampoo, skin cream, shampoo, detergent liquid, toothpaste soap, washing powder slurry, etc.
Refined chemicals: Dyes stuffs, pigments, all kinds of pulp, chemical additives, adhesives, silicone oil, leather oil, a variety of colloidal materials, etc.
Foods: Chocolate, concentrated milk, yogurt, honey, syrup, cane sugar, tomato juice, concentrated juice, jam, ice cream, milk, yeast slurry, meat slurry, jelly, condiment, lees, soybean protein, flour slurry, etc.
Paper making: Polyacrylamide, calcium carbonate, starch paste, carboxyl poly, starch paste, rosin size, paper pulp, filling dry strength agent, wet strengthen agent, sizing agent, filtering agent, anti foaming agent, spreading, water treatment chemicals, etc.
Chemical fiber: Pectic slurry, PVA, spandex slurry, vinylon slurry, Acrylic slurry, polyester slice, terylence, polypropylene fiber, rayon, functional fiber, etc.
Pharmaceuticals: Ointments, extractum, medicine latex, pill paste, syrup, health care products, drugs, etc.
Coating: Paint, dope, printing ink, insulating paint, resin, additives and assistants, organic
solvent, etc.

Pump Working principle


The even rotation of the rotor pair creates a vacuum on the priming side of the pump, which can be defined by the direction of rotation of the drive. This vacuum draws the liquid into the pump chamber. With further rotation, the pumped medium is conveyed past the pump wall into the pressure area. Up to six chamber charges are displaced with each drive rotation depending on the rotor type. When the rotor is at a standstill, the pump seals off almost completely.

Pump Structure

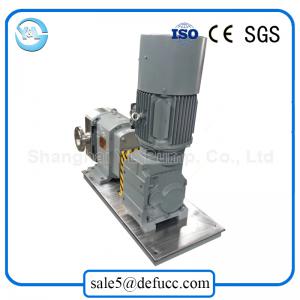

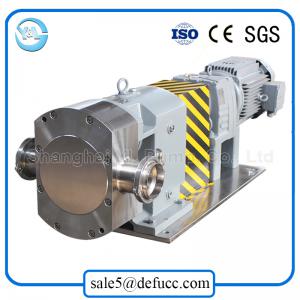

Complete pump consists of bare shaft pump, coupling& shield, gear reduer with motor and baseplate. You can only have our bare shaft pump.

Pump Specifications

Note*

2. Speed, flow rate, electrical power and pressure will be varified according to different liquid properties.

3. Port size can be changed as needed.

4. YL reserves the right to change specifications without prior notification.

How to choose our pump
Dear Customer,
To ensure satisfactory performance of required pumps, it is important that the pump must be properly selected. Below table is for your selection guideline, which is nessary to supply us for a targeted solution and offer.

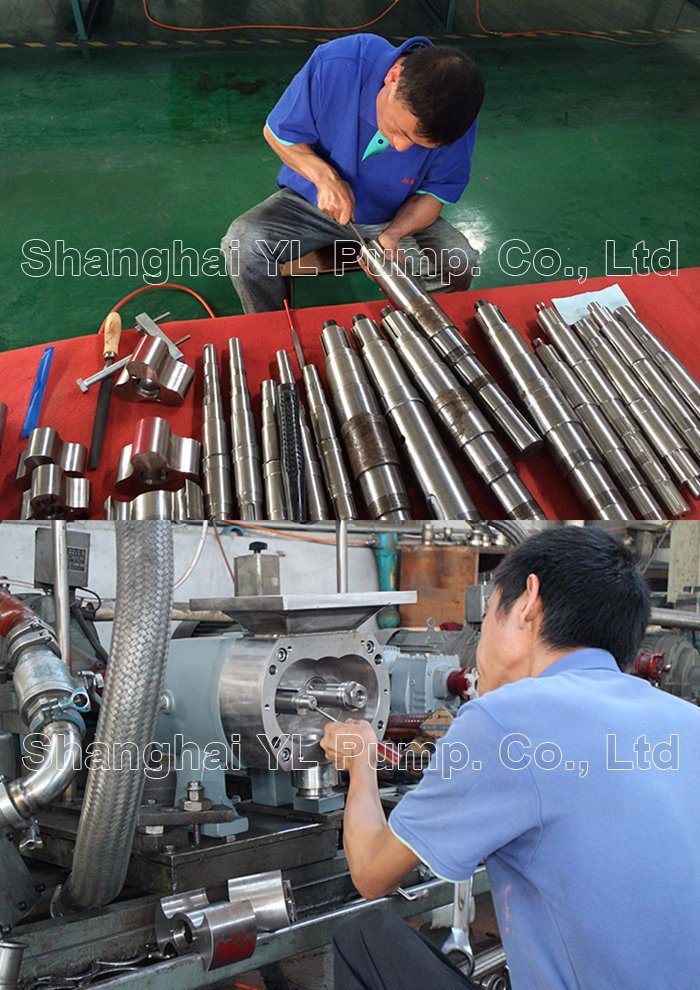

Factory workshop showing
