1. Introduction
JT&JU series self priming centrifugal sewage pump is a kind of specialized sewage disposal equipment, designed with super strong anti-clogging and impurity disposal capability. It can be used to dispose ultra long fiber impurities and more than 3 inch solids. In addition, because of it's self priming function and high suction lift performance, our water pump can transfer water from river or well. Therefore, This pump can be used as agriculture irrigation pump, dewatering pump,fire fighting pump and other pump.
2. Specification
| Model | Rotation Speed | Capacity | Head | Motor Power | Outlet | Max.Passing Solid Dia. | Max. Suction Lift | ||
| rpm | m3/h | I/s | m | kw | hp | mm | mm | m | |
| JT-6 | 750* | 100 | 27.8 | 3.2 | 3 | 4 | 150 (6inch) | 76 | 2.4 |
| 850 | 125 | 34.7 | 3.8 | 4 | 5.5 | 2.7 | |||
| 950* | 150 | 41.7 | 5.5 | 7.5 | 10 | 3.6 | |||
| 1050 | 160 | 44.4 | 6.5 | 7.5 | 10 | 4.2 | |||
| 1150 | 180 | 50.0 | 8.1 | 11 | 15 | 5.5 | |||
| 1250 | 200 | 55.6 | 9.8 | 15 | 20 | 6.4 | |||
| 1350 | 220 | 61.1 | 11 | 22 | 30 | 6.4 | |||
| 1450* | 230 | 63.9 | 14.6 | 30 | 40 | 6.7 | |||
| 1550 | 250 | 69.4 | 16 | 30 | 40 | 7.0 | |||
| 1650 | 280 | 77.8 | 18.3 | 37 | 50 | 7.6 | |||
| 1750 | 310 | 86.1 | 20.5 | 37 | 50 | 7.6 |

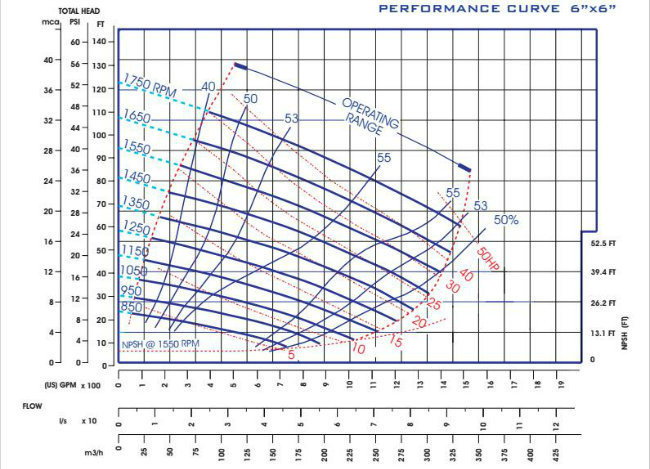

Peformance Curve

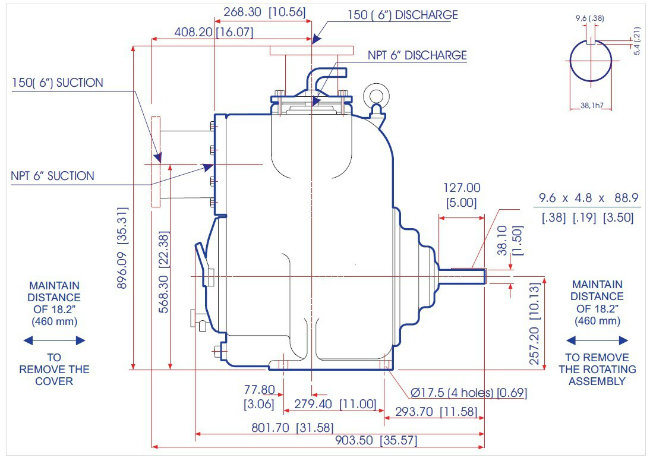

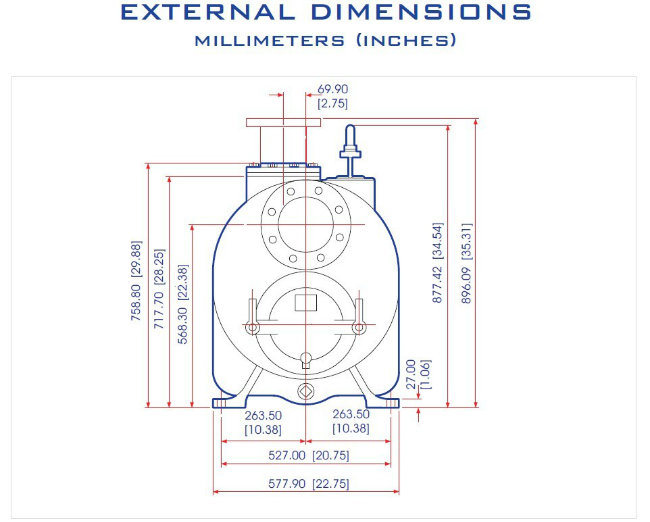

Installation Size

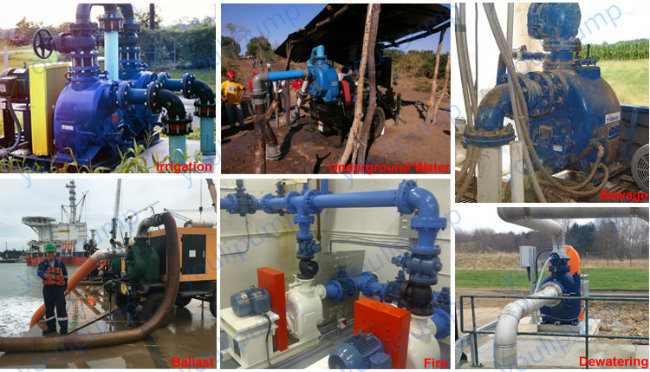

3. Application
1. Municipal engineering ,waste water treatment ,constructional engineering
2. Sewage collection or discharge in residential community
3. Sewage discharge in hospital and hotel
4. Centralized and staged disposal in sewage treatment plant
5. Water drainage station
6. Seriously polluted water discharge
7. Agricultural irrigation etc.
4. Our Service
1. Delivery: Delivery time will be on time as the contract. Usually, our company need 25 working days for diesel engine pump, and for bare shaft pump, it takes 15 working days,
2. Warranty: 12 month for the pump body, 3 month for the main working parts.
3. Package: We use plywood case to pack our pump, which is durable for ocean transport.
4. On-sales Service: we will clear show you everything in fact when you place an order with us. We will take photos or videos to show you our production situation, and report the production situation to you.
5. Quality: we will test our pump before delivery, and we will follow up the pump working conditions per three months when the pump put into use. If you need spare parts, we can send to you in 1 or 2 weeks.
5. Our Company

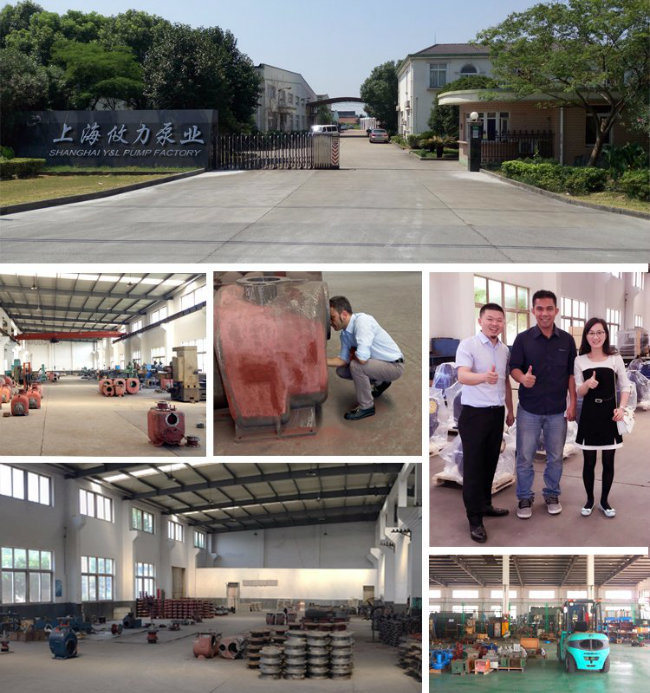

Welcome to visit our factory!
