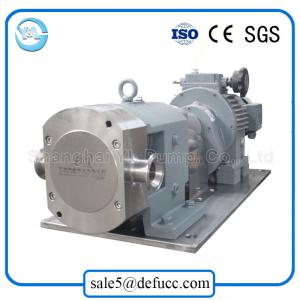

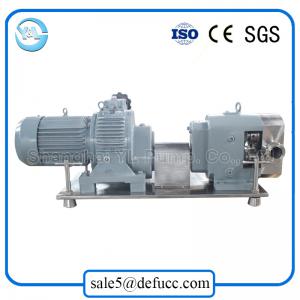

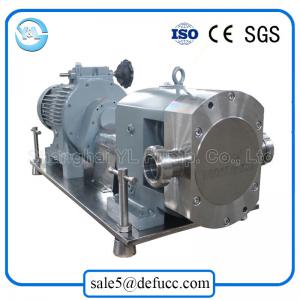

Stainless Steel Colloid Lobe Pump with Speed Controller Instead of Mono Pump

Brief introductionYL rotary lobe pump is self-priming, valveless, positive displacement pumps. With the characteristics of low rotation speed and high output torque, pump shows its talents to transfer high viscosity liquid products. Its unique workin

Technical Feature

  • Ningbo, China
  • 2000units Per Year
  • L/C, T/T, D/P, Western Union, Paypal, Money Gram
  • Positive Dispalcement Pump
  • Rotary Lobe Pump
  • Tri-Lobe, Double-Lobe, Single Lobe and Multi-Lobe
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~1

PRIMARY PARAMETERS

Model NO.
BV
Rotor Material
SS304, SS316, SS316L
Pump Installation
Fixed, Movable with Trolley
Motor Installation
Horizontal, Vertical
Seal Type
Single Face, Double Face Mechanical Seal
Trademark
YL
Transport Package
Plywood Case
Specification
Less 1 CBM
Origin
China
HS Code
8413603190

DETAIL DESCRIPTION

Brief introduction
YL rotary lobe pump is self-priming, valveless, positive displacement pumps. With the characteristics of low rotation speed and high output torque, pump shows its talents to transfer high viscosity liquid products. Its unique working principle works with a strong drive system, ensure that the pump can output a strong driving torque at low speed, can guarantee continuous, non-stagnant transferring, and ensure that the transferred material not damage, viscosity can be as high as 1500000CP.

Pump Applications
Consumer chemicals: AES, LAS, AOS, K12, glycerol, fatty alcohol, bathing shampoo, skin cream, shampoo, detergent liquid, toothpaste soap, washing powder slurry, etc.
Refined chemicals: Dyes stuffs, pigments, all kinds of pulp, chemical additives, adhesives, silicone oil, leather oil, a variety of colloidal materials, etc.
Foods: Chocolate, concentrated milk, yogurt, honey, syrup, cane sugar, tomato juice, concentrated juice, jam, ice cream, milk, yeast slurry, meat slurry, jelly, condiment, lees, soybean protein, flour slurry, etc.
Paper making: Polyacrylamide, calcium carbonate, starch paste, carboxyl poly, starch paste, rosin size, paper pulp, filling dry strength agent, wet strengthen agent, sizing agent, filtering agent, anti foaming agent, spreading, water treatment chemicals, etc.
Chemical fiber: Pectic slurry, PVA, spandex slurry, vinylon slurry, Acrylic slurry, polyester slice, terylence, polypropylene fiber, rayon, functional fiber, etc.
Pharmaceuticals: Ointments, extractum, medicine latex, pill paste, syrup, health care products, drugs, etc.
Coating: Paint, dope, printing ink, insulating paint, resin, additives and assistants, organic
solvent, etc.


Pump Working principle

Stainless Steel Colloid Lobe Pump with Speed Controller Instead of Mono Pump

The even rotation of the rotor pair creates a vacuum on the priming side of the pump, which can be defined by the direction of rotation of the drive. This vacuum draws the liquid into the pump chamber. With further rotation, the pumped medium is conveyed past the pump wall into the pressure area. Up to six chamber charges are displaced with each drive rotation depending on the rotor type. When the rotor is at a standstill, the pump seals off almost completely.

Pump Structure
Stainless Steel Colloid Lobe Pump with Speed Controller Instead of Mono Pump


Complete pump consists of bare shaft pump, coupling& shield, gear reduer with motor and baseplate. You can only have our bare shaft pump.

Pump Specifications

Model

Displace-ment

(L/r)

Speed range

(r/min)

Capacity
range
(M³/h)

Max.
Pressure

(Mpa)

Power

(Kw)

Suction

pressure

(Mpa)

Inlet

&outlet

(mm)

Max.
Viscosity

(cp)

25BV12-2

0.15

20-600

0.09-4.32

1.2

2.2

-0.02~-0.08

25

1000000

40BV12-5

0.32

20-550

0.18-7.92

1.2

4

-0.02~-0.08

40

1000000

50BV12-8

0.47

20-550

0.28-12.4

1.2

5.5

-0.02~-0.08

50

1000000

50BV12-10

0.65

20-550

0.39-17.16

1.2

7.5

-0.02~-0.08

50

1000000

65BV12-20

1.74

20-550

1.04-45.94

1.2

15

-0.02~-0.08

65

1000000

80BV12-30

2.5

20-550

1.5-66.00

1.2

22

-0.02~-0.08

80

1000000

80BV12-40

3.65

20-550

2.19-96.00

1.2

30

-0.02~-0.08

80

1000000

125BV12-50

4.6

20-420

2.76-92.74

1.2

37

-0.02~-0.08

125

1000000

125BV12-70

6.1

20-420

3.66-122.98

1.2

45

-0.02~-0.08

125

1000000

125BV12-80

7.0

20-420

4.20-141.12

1.2

55

-0.02~-0.08

125

1000000

150BV12-100

11.4

20-420

6.84-229.82

1.2

75

-0.02~-0.08

150

1000000

150BV12-150

12.5

20-420

7.50-252.00

1.2

90

-0.02~-0.08

150

1000000

175BV12-200

16.7

20-420

10.02-336.67

1.2

110

-0.02~-0.08

175

1000000

Note*

1. Tested medium: water. Your liquid's density, viscosity and temperature are necessary to supply when choose the pump.

2. Speed, flow rate, electrical power and pressure will be varified according to different liquid properties.

3. Port size can be changed as needed.

4. YL reserves the right to change specifications without prior notification.

How to choose our pump
Dear Customer,
To ensure satisfactory performance of required pumps, it is important that the pump must be properly selected. Below table is for your selection guideline, which is nessary to supply us for a targeted solution and offer.

Selection Guideline
Buyer information
Company name Contact person
Website Email
Address Mobile No.
Tel/Fax No. Online chat ID.
Liquid information
Your industry: __________ Liquid name:___________
Features:  Sanitary[  ]   Corrosive[  ]  Poisonous[  ]
Viscosity:_______cp Density:_______ Temperature:_____ºC PH value:________
Solid content:_______    Max. size of particle:_______
Using condition
Capacity:  Max. required:__________ L/H     Working required:__________ L/H
Discharge pressure: Max. required:__________Mpa    Working required:__________ Mpa
Suction pressure: Max. required:__________Mpa    Working required:____________ Mpa
Delivery head required:____________  Vacuum:________ Mpa
Heating jacket required: Yes[    ] No.[     ]           Heating temp.:_____ºC
Liquid inlet/outlet direction: Horizontal[     ]   vertical[      ]
Pipe size: Inlet___________ Outlet____________
Connection type required: Flange[     ] Thread[     ] Clamp[     ]
Installation type: Fixed [     ] Movable[     ]
Operating status: Continuous[     ]  Interruption[     ]
Liquid contact material: SS304[     ] 316[     ] 316L[     ]         Others________
Special request_____________________________________
