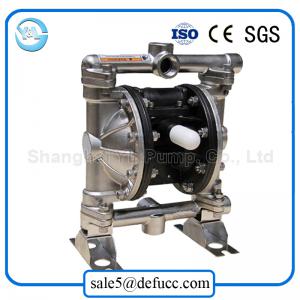

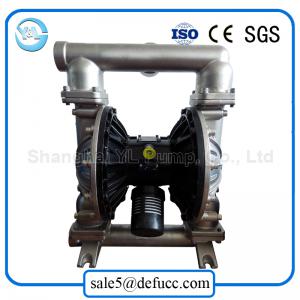

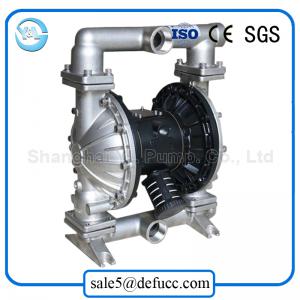

Stainless Steel Air Pneumatic Double Diaphragm Chemical Process Pump

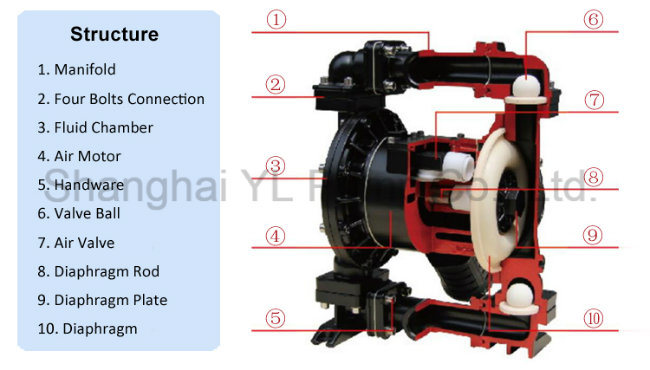

The air operated diaphragm pump is driven by air and the volume changes caused by compressing diaphragms in both side. The diaphragm pump is used as submersible pump in chemical industry, because of it is safe without power supply.
Features
1. The air diaphragm pump has the function of self priming without rotating parts. It can achieve dry priming and wet priming, which self -priming height is 5m and 8m respectively.

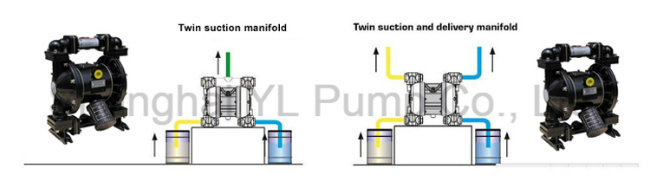

2. With sectional type structure, this self -priming pump can be used for conveying two different liquid by double diaphragm.

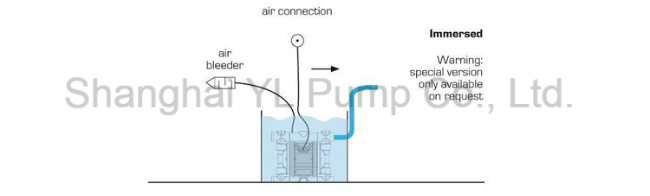

3. Our pump can be used directly as a submersible pump, it uses air as the power source, and does not have the leakage and other security risks. This diaphragm pump has lower cost than submersible pump which is caused by the maintenance of motor.
4. Pumps provide stall-free, ice-free operation.
5. Bolt joint design provides even sealing pressure for optimal performance.
6. Diaphragm,ball and ball seat adopt imported materials with longer service life.
7. Due to their pneumatic motor, they could be used in potentially explosive areas.
8. Can pump corrosive , volatile, flammable, poisonous fluids with particles and high viscosity.
Specification
| Model | QBK 06-80 |
| Inlet&Outlet Dia. | 06/10/15/20/25/40/80mm |
| Max. Capacity | 63.6m3/h |
| Max. Head | 84m |
| Max. Suction Lift | 8m |
| Max. Particle Dia. | 6mm |
| Max. Air Supply Pressure | 8.4 bar |
| Max. Air Consumption | 9.8m3/min |
| Pump Spare Parts | Pump casing, Diaphragm, Valve Ball, Valve Seat etc. |

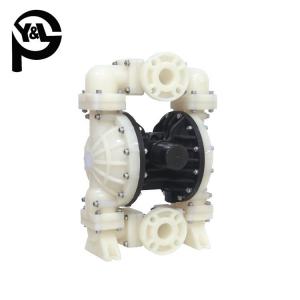

| Pump Material | PP( or Plastic, PVDF, Polypropylene) |
| Diaphragm Material | Teflon,Santoprene,Hytrel, EPDF, Buna-N, Geolast, Viton, Polyuretane |
| Center Block Material | Aluminum, Polypropylene(PP) |
| Seal Type | Mechanical Seal or Packing Seal |
| Valve Seat Material | Teflon, Santoprene, Hytrel, Epdm, Buna-N, Geolast, Viton, PVC, SS304, SS316, Polypropylene |
| Valve Ball Material | Teflon, Santoprene, Hytrel, EPDM, Buna-N, Geolast, Viton, PVC, SS304, SS316, Ceramic |
| Driving Type | Air Operated |
| Color | Optional |
| Package | Standard Plywood Case |
| Payment | T/T, L/C, West Union and so on. |
| Delivery Time | 7 working days |
| Shipping | By Sea |

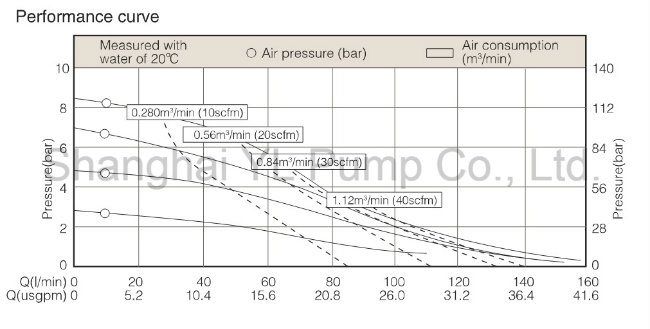

Performance Curve
Application
Chemical industry: various kinds of emulsion, stuffing, rubber slurry, abrasive material, corrosivee,

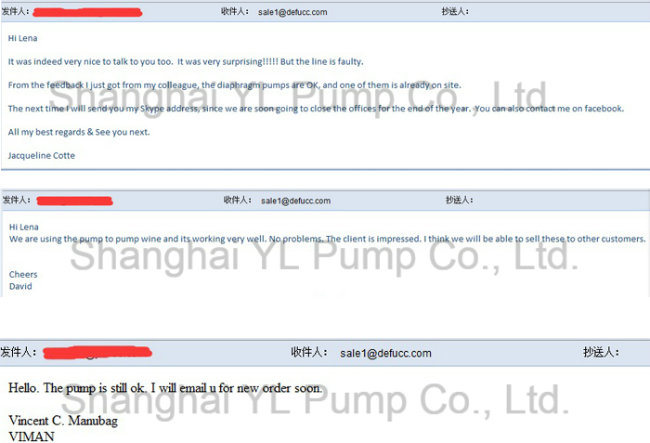

Customer Feedback
The Service
1. Warranty: 1 year for the pump body, 3months for the main working parts.
2. Pre-sales Service: According to your requirement, we will give you our profession advice of pump solution.
3. On-sales Service: We will clearly show you everything in fact when you place an order with us. We will takes photos or videos to show you our production situation.
4. After-sales Service: We will full report you the production progress and plan. Meanwhile, we will follow up the pump working conditions per three months when the pumps put into use, and can send the spare parts to you within one week if u need.
Our Factory
Shanghai Y&L Pump Co.,Ltd was founded in 2002, which is located in Shanghai. We producing water pumps for 15 years, especially diaphragm pump ,diesel engine pump and self priming pump.
Welcome to visit our factory!
