Product Application

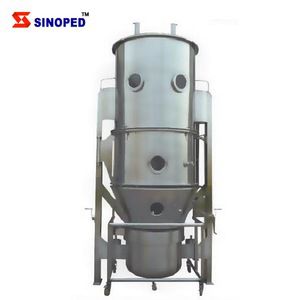

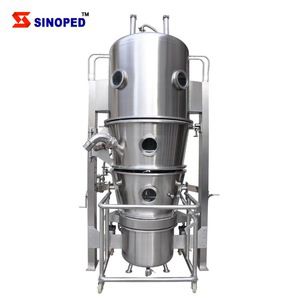

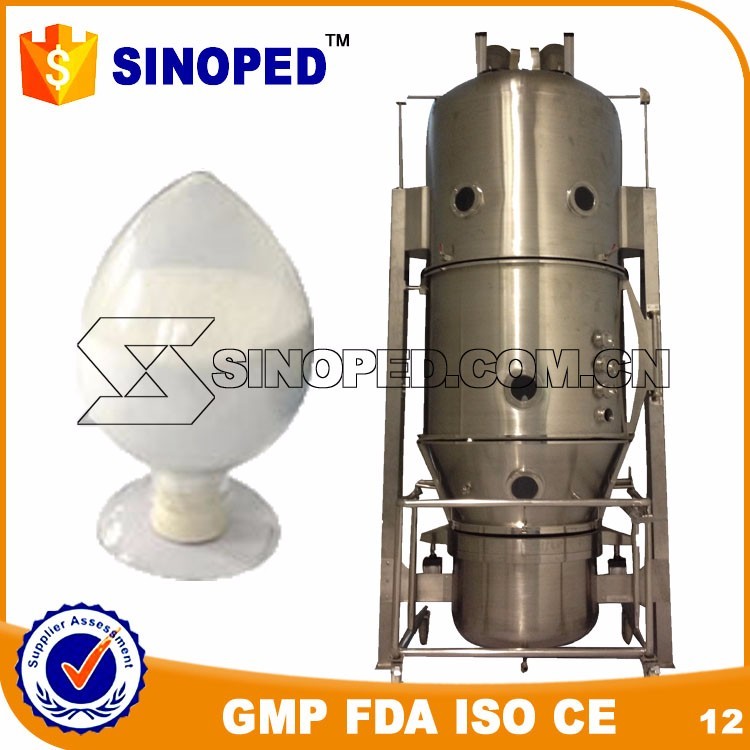

The advantage of fluid bed dryer technology rests with maintaining evenness and recurrence of product quality, which reflects an ideal balance between production efficiency and product quality. In the process of fluidization, the materials floats above the air, with surface in full contact with the heated air,and the materials therefore is evenly eated and reaches an ideal state for heat exchange thus to have a high efficiency. Configurated with proper spraying system and through further structural improvement, the fluid bed then becomes a multi-purpose processing facility in combined functions of drying, granulating, solution coating, and powder dressing.Final product usually instant solute granule
| odel | 5 | 30 | 60 | 120 | 200 | 300 | 500 |
| Capacity(Kg/Batch) | 5 | 30 | 60 | 120 | 200 | 300 | 500 |
| Material yield Rate(%) | >/=99% | ||||||
| Qualified Rate (%) | | ||||||
| Container Volume(L) | 22 | 100 | 220 | 420 | 670 | 1000 | 1500 |
| Diameter(mm) | 500 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 |
| Power of Fan(Kw) | 3 | 7.5 | 11 | 18.5 | 22 | 30 | 45 |
| Liquid Feed Power(Kw) | 0.37 | ||||||
| Pressure of Steam(MPa) | 0.4~0.6 | ||||||
| Consumption Steam(Kg/h) | 18 | 60 | 120 | 140 | 180 | 310 | 400 |
| Compress Air Pressure( MPa) | 0.4~0.6 | ||||||
| Consumption of Air(m3/min) | 0.3 | 0.9 | 0.9 | 0.9 | 1.1 | 1.1 | 1.5 |
| Working Temperature C | Room temperature~120C adjustable | ||||||
| Noisy(dB) | Installed separated with fan |
Main Features
1) Mixing-granulator-dryer in one-step.
2) Adopting double chamber filtering bags system, removing dust completely.
3) Adopting multi-fluid nozzle, it gurantees that the formed granule is uniform and the content of powder is very low.
4) Can choose two bars explosion-proof design
5) Designed, manufactured and laid out by GMP
6)Design&Manufactured in accordance with JB20014-2004
Machine Parts

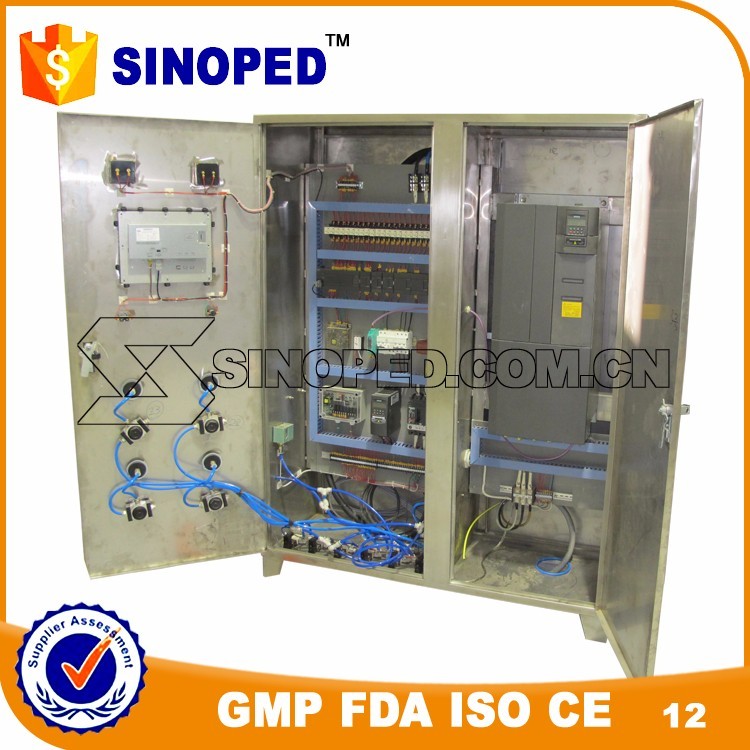

Name: Control Cabinet
Brand: SINOPED
Original: China
All SS304. IP55 Protection degree, able to design according to different electricity safety standard.
Main Features

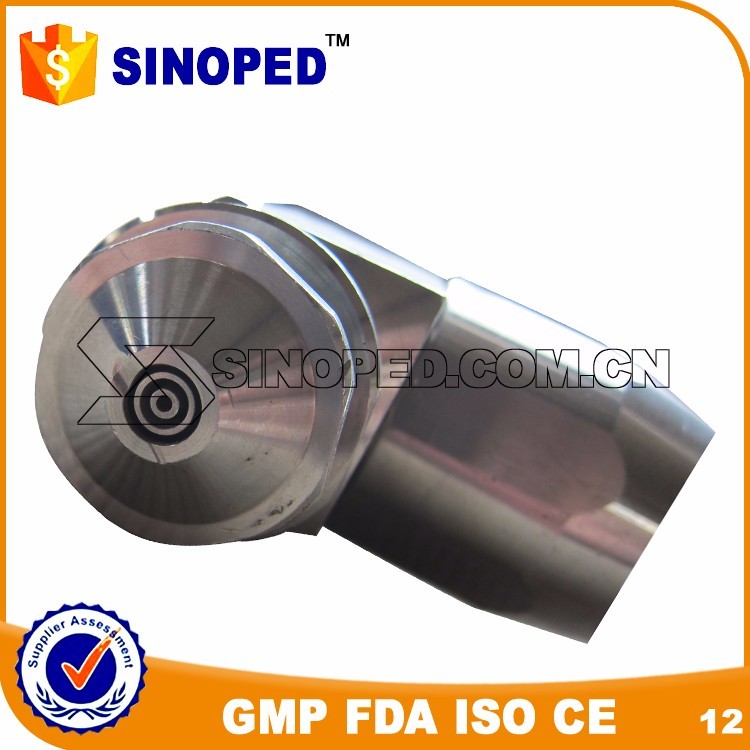

Name: Two Fluid Spray Gun
Brand: SINOPED
Original: China
Adopting multi-fluid nozzle, it gurantees that the formed granule is uniform and the content of powder is very low.
Machine Parts

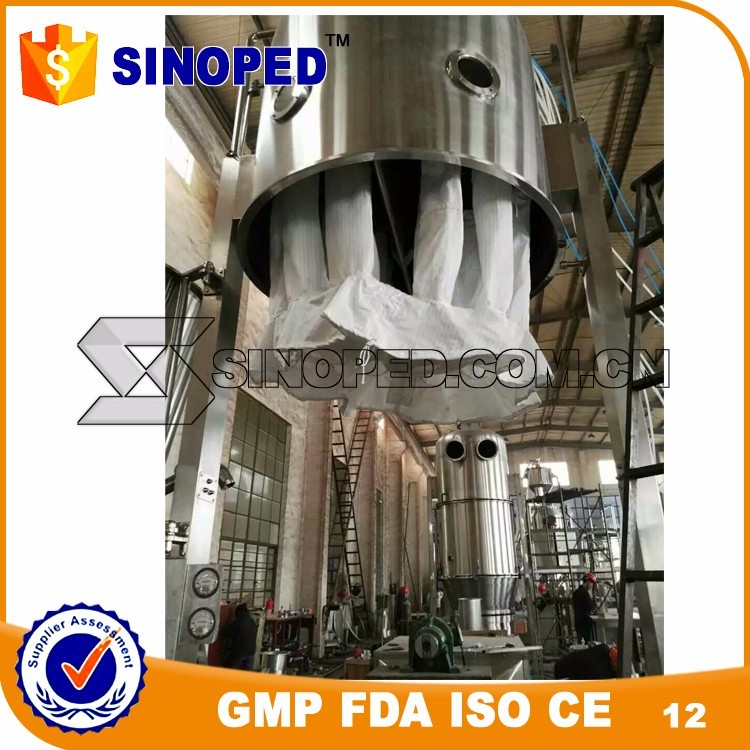

Name: Shake Bag Frame
Brand: SINOPED
Original: China
Adopting double chamber filtering bags system, removing dust completely.
Main Features
Main Features
Name: Anti-drop Bags Frame
Brand: SINOPED
Original: China
Ensure bags cannot drop during up and down .
Design&Manufactured in accordance with JB20014-2004
| Packaging | |
| Size | Actual size as practise |
| Weight | 3T |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |

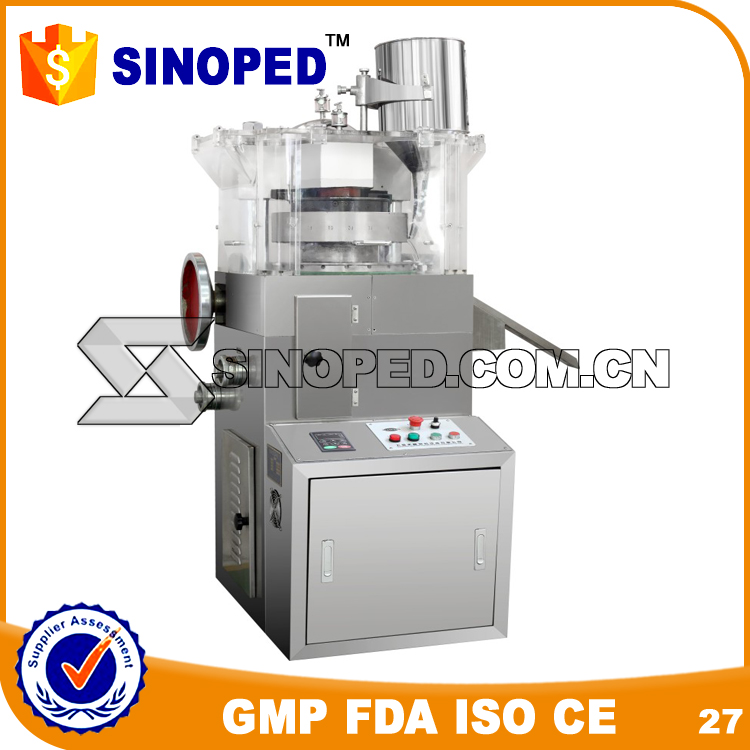

Tablet press machine with link
