PDF rotating liquid solid separating machine centrifugal sieve

PRIMARY PARAMETERS

Condition

New

Type

Separating Plant

Product Type

centrifugal sieve separation

Place of Origin

Jiangsu, China (Mainland)

Brand Name

STARK

Model Number

PDF

Voltage

380v

Power(W)

7.5kw

Weight

1350kg

Dimension(L*W*H)

1220*1220*1180mm

Certification

ISO

Warranty

one year

After-sales Service Provided

Engineers available to service machinery overseas

keyword

centrifugal sieve

name

rotating centrifugal sieve

title

separating sieve

type

PDF800 centrifuge machine

application

chemicals and pharmacy industry

diameter of drum

800mm

thickness of drum steel

8mm

capacity

100L

revolution of drum

1500r/min

maximum loading quantity

140kg

DETAIL DESCRIPTION

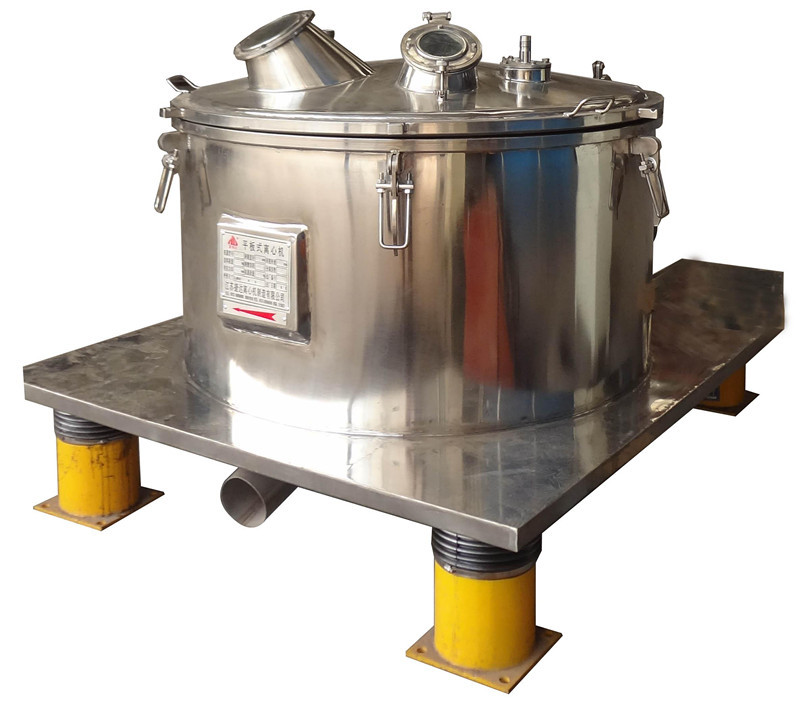

PDF flat plate centrifuge machine

Product Description

Main features

1.Started by frequency modulator, the start of the machine is stable, the separation coefficient is adjustable.
2.Package discharge reduces the labor stress and increases work efficiency.
3.Reasonable structure design can effectively eliminate the sanitation dead corner, the structure transition is very smooth, the surface has been polished, outside structure parts and tightening parts and tightening parts as well as rotating drum are all made of stainless steel. The outer shell is of turning over cover, the space between the outer shell and the rotating drum of the centrifugal machine can be completely cleaned.
Cleaning system (spray system) are arranged, the invisible parts of the centrifugal machine such as the inside part of the outer shell, the inside and outside surface of the rotating drum as well as the surface of the liquid collection channel can be washed and cleaned so that the clean extent can be guaranteed and the GMP standard can be corresponded to.
4.Simple structure, convenient operation, maintenance and repair.
5.Particles can not easily be broken.
6.Nitrogen protection system is arranged to guarantee separation of the inside parts of the centrifugal machine and the outside air.
7.Ouite universal, can be adopted for many items.
The sealing parts have applied silicon rubber or fluorine rubber. The machine can meet the requirement for sealing and explosion prevention, it is suitable for the application of poison and material which can easily get fire or explosion.

Technical Specifications

Item	Basket	Separation factor (ω2r/g)	Power of motor (KW)	Weight (kg)	Outer size(mm) (LWH)
Drum diameter mm	Drum thick mm	Drum max charge capacity L	Max volume Kg	Drum rotate speed R/Min
PDF800	800	8	100	140	1500	1000	7.5	1350	1200×1200×1180
PDF1000	1000	10	150	200	1100	675	11	1800	1500×1500×1350
PDF1200	1200	12/14	250	300	1000	670	15	2800	1750×1750×1500

Packaging & Shipping

The parts are bolted to the wooden cases. with layers of plastic and standard wooden cases for packaging, it provide safe and convenient shippings.

Our Services

We are specializing in environmental mechanism, chemical machinery, medical equipment, food machinery , such as industrial dust cleaner, centrifuge and stretcher. the PDF centrifuge is one of the top discharge type centrifuge which use in pharmacy and chemicals field. we also provide different inner special steel (or rubber) according to customer's requirement. It would be a great pleasure to present you all our products and services.Please don't hesitate to contact.
