Product Description

 Automatic Starch Dewatering Machine

Automatic Starch Separation/Cleaning/ Dewatering Machine

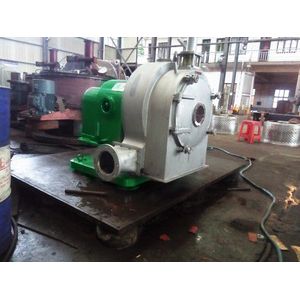

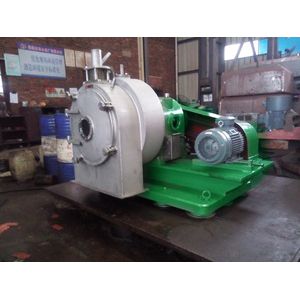

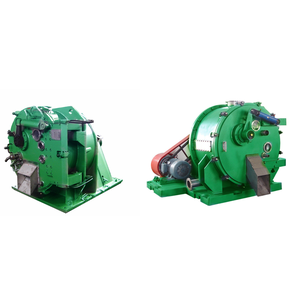

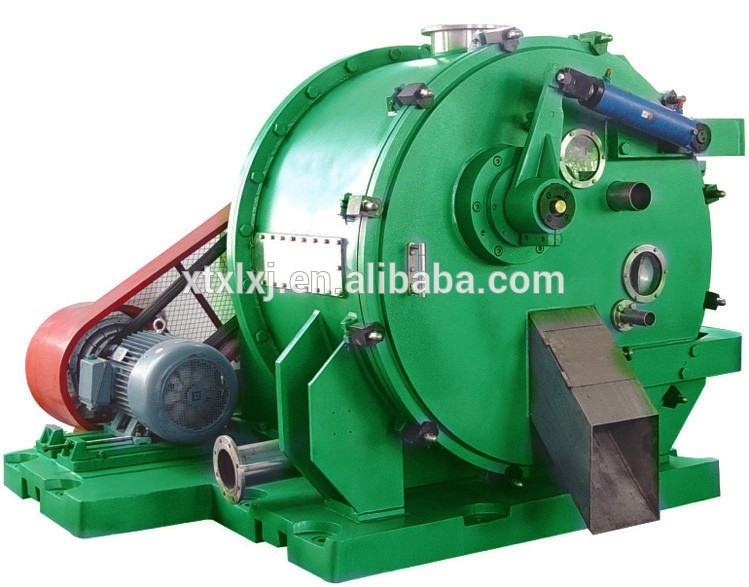

GK1250 Horizontal Peeler Centrifuge

Working Principle For Automatic  Starch Dewatering Machine

Introduction

GK Horizontal Peeler Centrifuge is mainly apply to separate /clean /dewater kinds of  material ,especially  kinds of powder,like starch, soda ash, NaCl, and other chemical/food/industrial materials.

GK Series are centrifuges with peeler batch discharge and full automatic/manual operation at full speed.. they are capable of full automatic (PC controller) or manual operation according to the requirement. Matching electric and hydraulic controller , it can control all the process of  the feeding ,separating ,washing and discharge at full speed

Principle

The motor drives the bowl at full speed, and the materials to be separated fed into and distributed on the wall of the bowl with the aid of the tine. Under the action of centrifugal force, the liquid phase through out the filter bag and the bowl, move out via the unloading pipe. With the increase of filter cake, the tine relatively is rotating, when tine rotate reaches at a certain Angle, touch the limit switch and cut off time relay, the feed valve closed, stop feeding. And washing valve automatically open at the same time, washing liquid by washing tube spray on the filter cake, after the filter cake washing adequately, close the washing valve, while the machine is continuously dehydrating and drying, and then the scraper rotatably scrape and discharge the cakes, then move out the machine by gravity.

Applications

It is applicable for two-phase (solid-liquid) separation in the chemical, pharmaceutical, environmental protection, mining, food and other industries.

Typical Production

Ammonium sulfate, sodium sulfate, nickel sulfate, ferrous sulfate, anthracene, polyethylene, polystyrene, polyvinyl chloride, urea, caustic soda, salt, boric acid, ammonium chloride, sodium carbonate, sodium pentachlorophenol, bleaching powder,

Corn starch, cassava starch, sweet potato starch, potato starch, banana taro starch, the kudzu root starch, wheat starch

 Features

GK series are capable of full automatic or manual operation of feeding, separating, washing and discharge at full speed.

1. compact structure,

2. minute extension

3. Automatic/manual patch operation

4. Stepless speed

5. High load capacity

6. Wide range of application

7. Low moisture content in the filter cake

 Working Condition

1 The materials to be separated are suspend liquid ,solid-liquid and so on .

2 There are density contract of the suspended liquid

3 the concentration of the solid phase >20%, while that of the liquid phase < 10-2Pa.s . and the diameter of the solid phase > 0.1mm

4 Working temperature: no more than 100 c

Optional Parameter

1 Material contactedthe liquid to be separated : Carbon steel(G), Corrosion resisting steel (N), Titanium(I), Metal coat (J), Rubber ,and so on

2 Motor Type: General motor or explosion proof motor

3 Speed controller: AC frequency , electromagetric or mechanical belt

4 The range of speed difference: 10 r/m - 50 r/m

5 Discharge: Mother liquid and washing solution can be discharged mixed or separately

6 All the machine made match the GMP standard

7 Design and produce all customized

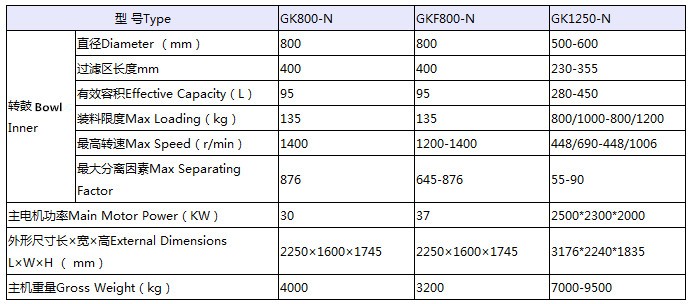

Techincal Parameter

GK Horizontal Peeler Centrifuge especially apply to  separate  of kinds of  power  material , like starch. soda ash, polyvinyl chloride  power and so on
