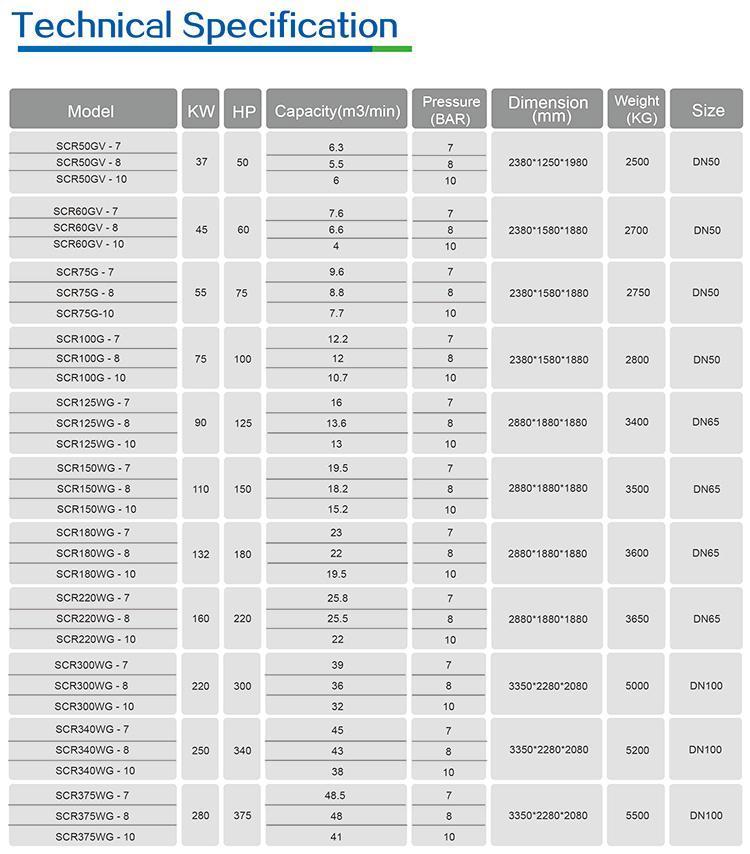

Model | Power(KW) | Porsepower(HP) | Capacity(m3/min) | Presssure(BAR) | Dimension(mm) | Weight(kg) | Size |
SCR220G-7 | 160 | 220 | 25.8 | 7 | 2880*1880*1880 | 3650 | DN65 |
SCR220G-8 | 25.5 | 8 | |||||
SCR220G-10 | 22 | 10 |
German original GHH oil-free airend
Leading Technology:
The durability of GHH Rand's two stage compression airend uses high performance rotors and durable bearings to ensure reliability. Stainless steel seals and the unique design of the labyrinth seals mean that this unique design is time tested, reliable and efficient.
Dry Oil Free Technology:
Since the launch of the GHH oil free airend thousands have been produced and are in use worldwide. Typically oil free air is used in processes such as pharmaceutical, food and beverage, and electron-
ic industries where high quality air is required.
Stainless Steel Rotors:
GHH Rand pioneered the use of stainless steel rotors to ensure longevity and reliability.
Oil Free Airend - UltraCoat TM Super Coating:
The surfaces of the oil free airend are coated with UltraCoat, a special coating which improves efficiency and extends the life of the stainless steel rotors. The strong coating adhesion and high tempera-
ture resistance ensures that there is no reduction in performance with age.
Product Technical Description
Description:

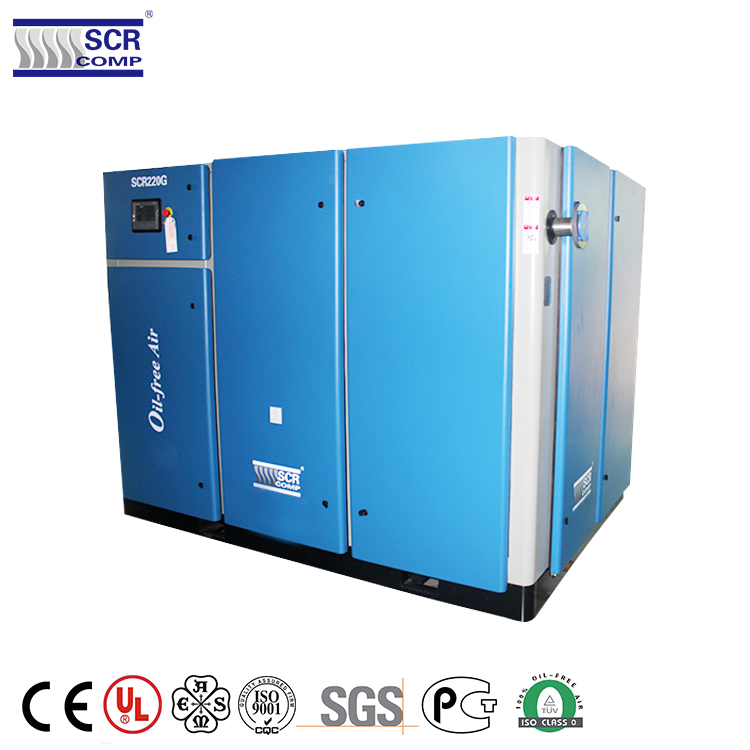

Model : Oil Free Series
Type: Oil Free Screw Compressor
Voltage: 380V/50HZ/3P, 220V/60HZ/3P, 400V/50HZ/3P, 415V/50HZ/3P or Customer′s Requirements
Working Pressure: 7~10bar
Installed Motor Power: 37~ 280Kw
Color: Blue
Driven Method:Direct Driven
Air End: Original GHH-Rand Air End from Germany.
Trademark: SCR
Transport Package: Standard Wooden Packing
Available Certificate: CE, ISO, UL, ASME, GHOST
Origin: Shanghai, China
Product Technical Data Sheet
Model | SCR220G-7 | SCR220G-8 | SCR220G-10 |
Capacity/Pressure(m3/min,/BAR) | 25.8/7 | 25.5/8 | 22/10 |
PM Motor | Power(KW) | 160KW(220H.P) | |
Speed(r/min) | 2965 | ||
Starting way | Star-Delta | ||
Volt(V) | 380/400/415(220) | ||
Motor safety grade | IP54 | ||
Motor isolation grade | F | ||
Electrical Supply | 380(400,415)V/50Hz/3Phase, 220(440)V/60HZ/3P | ||
Outlet Temperature(℃) | ≤ Environment Temperature+10℃ | ||
Driven way | Direct Driven | ||
Noise level at 1 meter | 78±3dB(A) | ||
Cooling method | Air cooling | ||
Oil content | 1~3 ppm | ||
Outlet Connection | DN65 | ||
Dimension | Length(mm) | 2880 | |
Width(mm) | 1880 | ||
Height(mm) | 1880 | ||
Weight(KG) | 3650 |
Product Features
1. Original GHH-RAND airend from Germany.

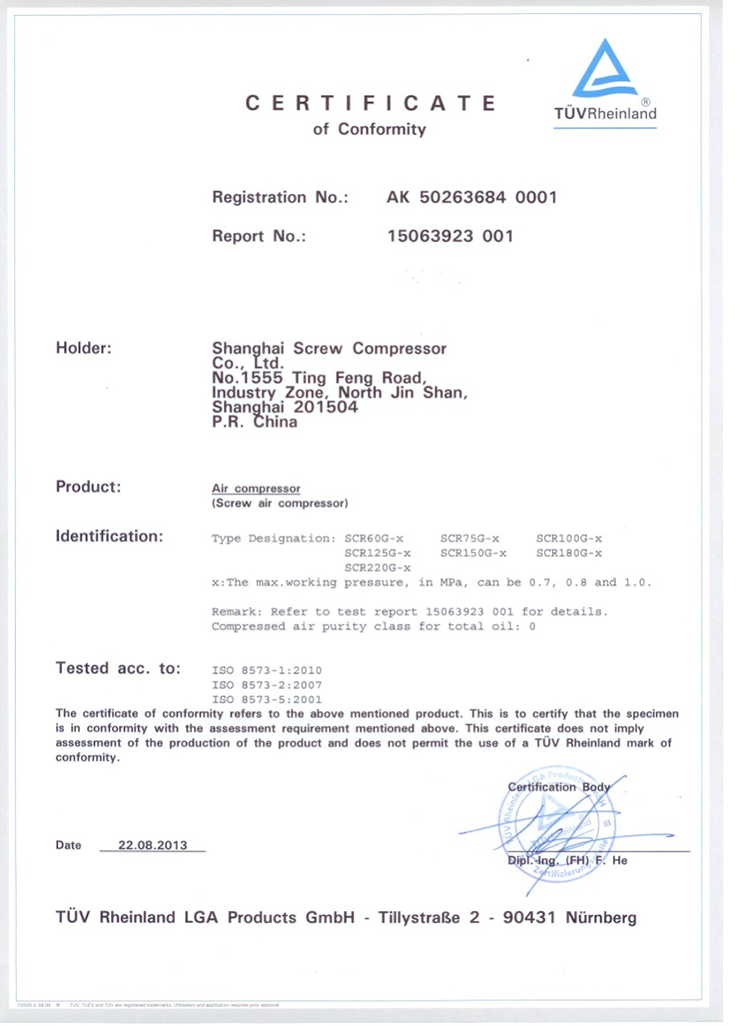

2. 100% oil free air certified by Germany TUV.
3. Centrifugal Fan for better cooling effect.
4. Stainless Steel Pipe.
5. Hydraulic Inlet Valve System.
6. Special venturi tube design to help reduce the noise down.
7. Double-layer structure to reduce he noise.
8. Air Cooling and Water cooling are available.
9. VSD control are available.
10.Touch Screen PLC with preset running schedule, more intelligent control.
Each Compressor has been well tested two hours in factory before delivery to make sure it’s well manufacturing.
——FAQ—— |
1 What trade terms do we provide? What kind of settlement currency do we offer? |
Trade term :CIF ,CFR ,FOB,Ex-Works |
2 How long is our delivery? |
Our standard delivery time is 30-40 days after confirmation order & receiving recipets for standard compressors, for the other non standard requirement will be discussed case by case. |
3 What is the voltage of the compressor? |
The available voltage include 380V/50HZ/3Phase, 400V/50HZ/3P, 415V/50HZ/3P, 220V/60HZ/3P, 380V/60HZ/3P, 440V/60HZ/3P. At the same time we provide other voltage according to customer requirement. |
4 Can our compressor run in high temperature environment? What is the working temperature range for our machine? |
Yes ,our machine would run in high temperature environment ,until now our products have been sold to many countries which would meet high temperature in summer ,such like Iraq, Saudi Arabia, Egypt, Algeria, etc. |
5 What’s the min. Order requirement ? |
Min. Order requirement is 1PCS. |
