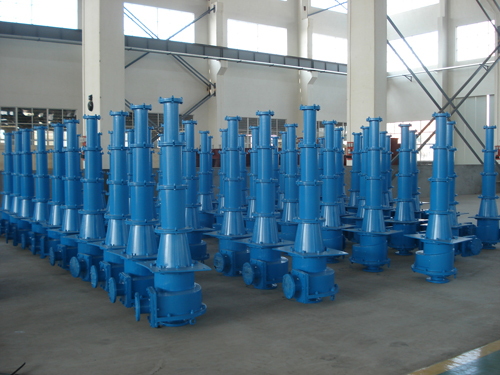

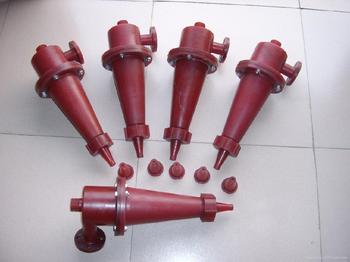

hydro-cyclone--mainly used in mineral processing as a classifier

hydraulic cyclone is widely used in concentrator of nonferrous and ferrous, chemical, pharmaceutical, ceramics and other industries.

Technical Feature

  • Henan, China (Mainland)
  • Yufeng
  • FX
  • New
  • Engineers available to service machinery overseas
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~5

PRIMARY PARAMETERS

Place of Origin
Henan, China (Mainland)
Brand Name
Yufeng
Model Number
FX
Condition
New
After-sales Service Provided
Engineers available to service machinery overseas
Brand Name
Model Number
Conditon
Model
Internal dia
Max feed dia
dimension
weight

DETAIL DESCRIPTION

 Introduction of Cyclone Separator:

hydraulic cyclone is widely used in concentrator of nonferrous and ferrous, chemical, pharmaceutical, ceramics and other industries. It is mainly applied to the process of second paragraph grinding, coarse or concentrates re-grinding and the closed-circuit composed by mechanical grading machine, its grading operation is according to the particle size.

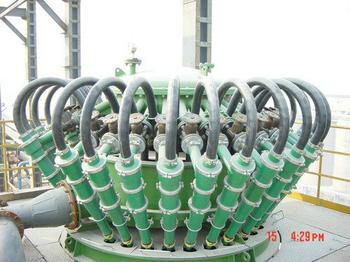

In closed circuit grinding system, it features high classification efficiency and fine over fall fineness under high mine concentration.



Features of Cyclone Separator:

The device has features of simple structure, long service life, large disposal capability, small land covering and no driving power consumption. It is a high efficient grading and de-sliming equipment of fine -particle material

Cyclone Separator Working principle:

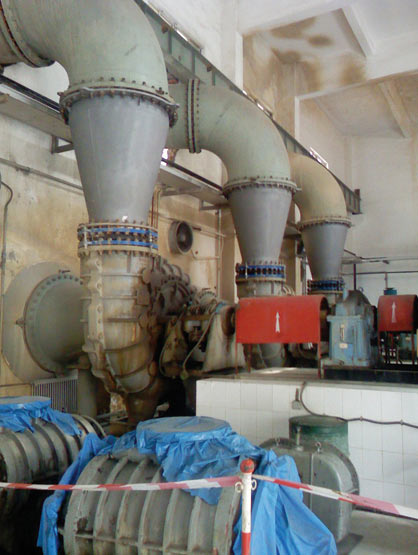

Ore-mud can enter the drum with the help of a certain pressure (usually 0.5 to 2.5 kg / cm) and velocity (about 5 to 12 m / sec) that caused by slurry pump, and the ore-mud will rotate with the surface of drum, and cause quite strong centrifugal force, rough or big ore-sand will move downwards with the centrifugal force and gravity. Then they will be discharged from the underside of the cone, whereas some thin sand will be discharged from the overfalling pipe.

Cyclone Separator General Applications:

Mineral Classification

Solids Concentration

Dewatering

Desliming

Sludge Clarification



Main technical parameters for your reference:

Diameter: mm

Settlement area: square

Capacity:

Cubic

Pai Mining Pipe: mm

Feeding size: mm

Processing capacity: t / h

By mine management: mm

 Weight:

Kg

1000

0.75

0.27

25

0.2 The following

4.5-52



500

1500

2

0.83

40

0.2 The following

4.5-52



 980

2000

3

2.27

50

0.2 The following

4.5-52

150

1483

2500

4.9

4

60

0.2 The following

4.5-52

150

1850

3000

7

6.65

70

0.2 The following

4.5-52

150

2100

 Note;

Pai ore concentration of 40-60%, 33-45% removal efficiency of mud
