Zhengzhou YUFENG Machinery Company offers all kinds of DRYER, Rotary DRYER, sand DRYER, sawdust DRYER, coal DRYER, wood chips DRYER, gypsum DRYER, limestone DRYER, iron powder DRYER, coconut shell, DRYER, fly ash DRYER, clay DRYER.
Rotary Dryer Machine is widely used in building materials, metallurgy, chemical industry and cement industry, which is widely used to dry the stuff such as limestone, coal powder, slag and clay.
coal rotary dryer is developed based on the rotary dryer. It can be widely used in:
1. The coal industry: Coal slime, coal, flotation clean coal, mixed clean coal etc.
2. The construction industry: Blast furnace slag, clay, bentonite soil, lime stone, sand, quartz stone etc.
3. Ore processing industry: Various metal concentrates, slag, tailings etc.
4. Chemical industry: Non-drying heat sensitive materials
Coal slime rotary dryer is a kind of stable and reliable heating drying equipment, designed to dry materials of high moisture and strong stickiness, such as coal slurry, mud, gypsum, humid swell soil, electroplate mud and so on. The performance of coal slime dryer is better than tube rotary dryer and blade rotary dryer.
Coal slime rotary dryer special features:
- · Drying material with co-current or counter-current hot gas, the heating efficiency can be up to 95%.
- · Coal Slime dryer should be operated under high temperature and low oxygen to avoid materials being burnt when drying.
- · Large drying capacity, highly industrialization and low cost.
Lignite rotary dryer main applicable areas:
- 1. Coal industry: drying coal, coal slime, coal with flotation, drying mixed coal;
- 2, Construction industry: drying cinder, blast furnace slag, clay, limestone, sand, quartz;
- 3, Mining processing industry: drying metal concentrates, slag, tailings;
- 4, Chemical industry: heat non-sensitive materials.
Specification | Shell Size (m) | Capacity (T/h) | Initial moisture(%) | Final water (%) | Total power (kw) |
GT1.6-16.5 | Φ1.6*16.5 | 3-5T/h | 20±3 | ≤10 | 57 |
GT1.8-18 | Φ1.8*18 | 5-7T/h | 20±3 | ≤10 | 60.5 |
GT2-20 | Φ2.0*20 | 7-10T/h | 20±3 | ≤10 | 80 |
GT2.2-20 | Φ2.2*20 | 10-15T/h | 20±3 | ≤10 | 95 |
GT2.5-22 | Φ2.5*22 | 15-20T/h | 20±3 | ≤10 | 108.5 |

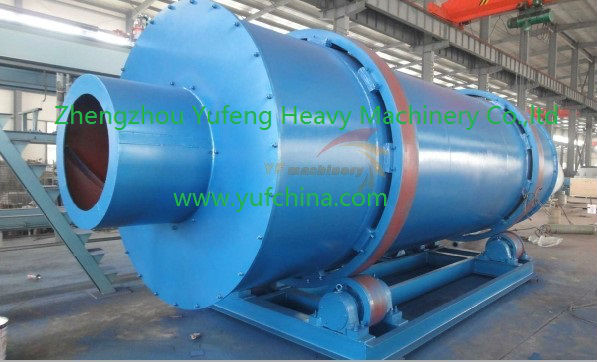

Three Cylinder Dryer Technicial Parameters
| Specification | φ2.0×6m | φ2.5×6.5m | φ2.7×7m | φ3×7m | φ3.2×7m | φ3.6×8m | φ4.2×8.5m | |
| Diameter(m) | 2.0 | 2.5 | 2.7 | 3 | 3.2 | 3.6 | 4.2 | |
| Length(m) | 6 | 6.5 | 7 | 7 | 7 | 8 | 8.5 | |
| Shell volume (m3) | 18.84 | 31.89 | 40.5 | 49.46 | 56.26 | 81.38 | 118 | |
| Shell rotary speed(rpm) | 3-10 | 3-10 | 3-10 | 3-10 | 3-10 | 3-10 | 3-10 | |
| Material stay time (min) | 12-30 | 12-30 | 12-30 | 12-30 | 12-30 | 12-30 | 12-30 | |
| Material moisture (%) | 6-25 | 6-25 | 6-25 | 6-25 | 6-25 | 6-25 | 6-25 | |
| Mafter moisture after drying(%) | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | |
| Max inlet temperature (°C) | 750-900°C | 750-900°C | 750-900°C | 750-900°C | 750-900°C | 750-900°C | 750-900°C | |
| Production capacity (T/H) | Ore slag | 20-25 | 25-30 | 30-35 | 35-10 | 40-45 | 50-65 | 70-85 |
| Flyash | 10-17 | 17-21 | 20-25 | 23-27 | 25-30 | 30-45 | 45-63 | |
| Sand | 20-27 | 25-40 | 27-45 | 30-45 | 35-50 | 55-75 | 75-99 |
