SBM Low Price Simple Structure and High Efficiency hydrocyclone

Hydraulic cyclone is high efficient beneficiation equipment that used for the separation to remove the heavier coarse particles sediment and substances from the sewage.

Technical Feature

  • New
  • Gravity Separator
  • 98%
  • Shanghai, China (Mainland)
  • SBM
  • CTB
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~9

PRIMARY PARAMETERS

Condition
New
Type
Gravity Separator
Production Capacity
98%
Place of Origin
Shanghai, China (Mainland)
Brand Name
SBM
Model Number
CTB
Voltage
380V
Power(W)
1.1kw
Dimension(L*W*H)
7000*2000*3000 Mm
Weight
750kg
Certification
ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Color
Iron Grey
After Sales Service
The whole time
Spare Parts Supply
Will Supply Any Time
Test & Installation
Professional Engineer Assigned
The Machines classification
Hydrocyclone
Specific Service for Customers
Online Engineers and Free Customer-built Design
Online Service Time
24 Hours per Day for Consultation, such as price, email, and call

DETAIL DESCRIPTION

SBM Low Price Simple Structure and High Efficiency hydrocyclone





Product Description



SBM Low Price Simple Structure and High Efficiency Hydrocyclone



SBM Low Price Simple Structure and High Efficiency Hydrocyclone ------ Hydraulic cyclone is high efficient beneficiation equipment that used for the separation to remove the heavier coarse particles sediment and substances from the sewage. Sometimes it can be used for sludge dewatering. Hydro-cyclone is a kind of equipment for classifying the ore pulp by use of centrifugal force. It has no motion and dynamic parts, and needs to be matched with corresponding slurry pump.



Advantages of SBM Low Price Simple Structure and High Efficiency Hydrocyclone



1. No moving parts

2. Simple structure

3. Large production capacity per unit volume

4. Accounting for a small area

5. Classification of high efficiency



Application of SBM Low Price Simple Structure and High Efficiency Hydrocyclone



SBM Low Price Simple Structure and High Efficiency Hydrocyclone ------- Hydraulic cyclone is mainly used for grading, sorting, concentration, and off the mud in mineral processing industry.It is mainly used in ore dressing industry for classifying, dewatering and des.When used as grading equipment, it is mainly equipped with the grinding mill and classification systems. As des equipment, it can be used for gravity separate plant des. When used as thickening and dewatering equipment, it can be used to dress and concentrate tailings and then sent to the filling of underground mining tunnel.

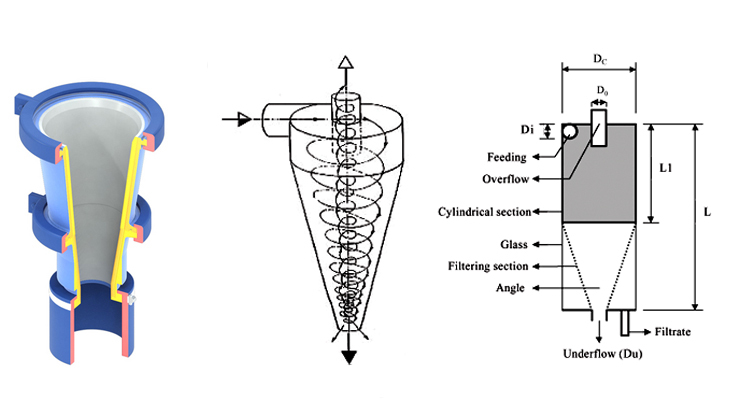

Working Principle of SBM Low Price Simple Structure and High Efficiency Hydrocyclone



SBM Low Price Simple Structure and High Efficiency Hydrocyclone ------- It is divided into pressure-style and gravity-style and often made by circular cylindrical structures or metal tube. The hydraulic cyclone is a hydro cyclone cylinder composed of the upper part of a hollow cylinder, and the lower portion of the vertebral body. In addition, hydraulic cyclone also has feeding pipe, overflow pipe, overflow conduit and grit mouth.





Technical Data of SBM Low Price Simple Structure and High Efficiency Hydrocyclone



Diameter(mm)

Feed opening(mm)

Overflow outlet(mm)

Flow-down opening

Tapper

Cone(mm)

Cyclinder height (mm)

Handling capacity(m3/h)

GXX100

30×5

14

11

20

275

60

1.5-9

30×7

15

30×10

26

GXX125

25×10

50

15-30

20

225

110

2.4-15

GXX150

40×8

20

15

20

326

100

4.8-54

40×10

30

40×2

40

GXX250

50×20

125

35

20

595

170

6.5-61.2

GXX300

75

125

50

20

800

200

24-60

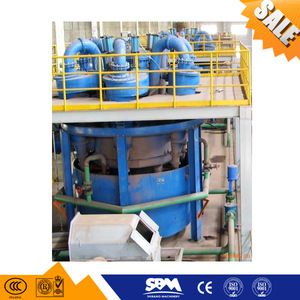

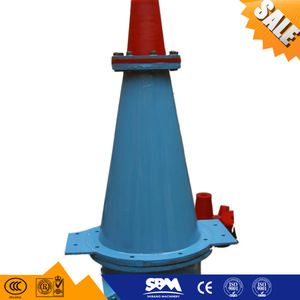

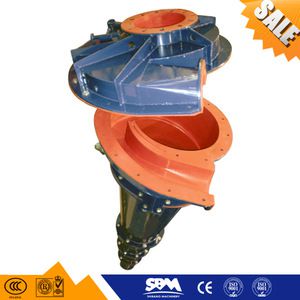

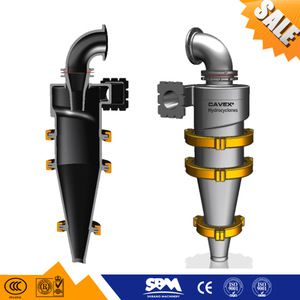

SBM Low Price Simple Structure and High Efficiency Hydrocyclone pictures





Packaging & Shipping


Certification


Our Services

WHY CHOOSE US



1 SBM as a good adviser and assistant of clients, we can enable them to get rich and generous returns on their investments.
2 We will continuously create more qualified products and more perfect technological service, bring more benefits to our clients.
3 We respect clients and always devote ourselves to improving the total value of clients



Parts and consumables support


SBM Machinery has developed a well earned reputation in the design and manufacture of equipment for the crushing and grinding equipment in mining, quarrying, recycling and waste management industries.
SBM Machinery will provide each customer with a world class service through every stage of every project and beyond, to ensure the delivery of projects which will consistently out-perform our customers expectations, and we maintain a highly efficient, worldwide service to make sure all essential parts and consumables are available to our customer.





Training service


Well trained people are fundamental to safety, high productivity and successful results in mining and construction. To help achieve optimum equipment performance, SBM Machinery offers intensive training courses tailored to the needs of individual customers.



Technical support


SBM Machinery has a wealth of experience and teams of experts spanning the globe to help you solve your equipment-related mining or construction challenges. Our aim is to support you in every conceivable way, with the right advice, the right actions and the right results, wherever and whenever you need them.


Warranty


SBM Machinery warrants its new equipment to be free of defects in material or workmanship for a specified period from the date the equipment is first placed into service.
