Fully Automatic Gypsum Board Making Plant

                                                Our products are sold to 130 countries, being the popular equipments in global crushing and grinding industry.  ---SBM Equipments   Fully automatic gy

Technical Feature

  • Shanghai, China
  • 2 Million-50million
  • L/C, T/T, D/P, Western Union, Paypal, Money Gram
  • CE, ISO
  • New
  • Gypsum Board Making Plant
Send Project Inquiry Add Inquiry List

0 Add Favorite


Project Design Scope

Project Service Scope


Model NO.
2 Million-50Million
Automatic Grade
Product Type
Gypsum Board Making Plant
The Machines Classification
Gypsum Board Making Plant
Yellow Iron Grey
After Sales Service
The Whole Time
Spare Parts Supply
Will Supply Any Time
Other Application
Mining, Quarry, Chemical Industry and Construction
Other Certification
Professional Engineer Assigned
Delivery Detail
30 Days
More Information and Price List Please Send Me
Transport Package
Standard Packing
based on model
HS Code


Our products are sold to 130 countries, being the popular equipments in global crushing and grinding industry.  ---SBM Equipments


Fully automatic gypsum board making plant:

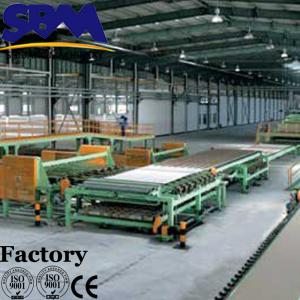

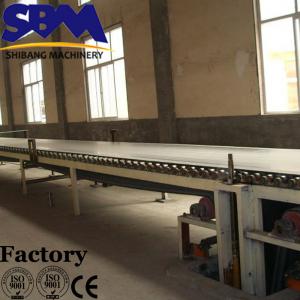

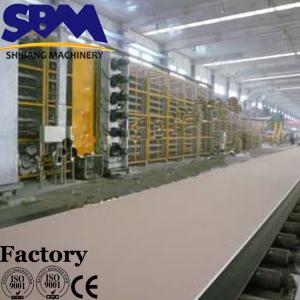

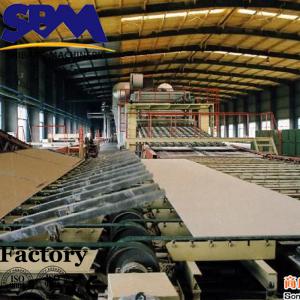

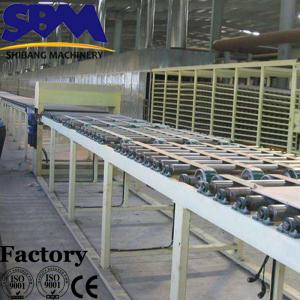

gypsum board making plant--- Gypsum board production line is composed of raw material supply system, the system board systems, conveyor systems, horizontal systems, drying systems, the panel system, cutting systems, and other components used in the production of gypsum board special equipment .

Fully Automatic Gypsum Board Making Plant

Fully automatic gypsum board making plant characteristic :
1, LB-4 hydraulic automatic Walking gypsum wallboard machine combines the advantages of similar equipment at home and abroad, to solve the traditional gypsum wallboard heavy weight, low strength, water moisture and poor performance shortcomings, the overall performance of the device to the leading domestic level ;
2, the device core components made of imported materials production, high-quality, small footprint, easy operation, high production efficiency;
3, good flatness products, small error, resistance to deformation, the length is adjustable, durable;
4, a device can produce 60mm, 90mm, 120mm, 150mm thickness and other specifications of the gypsum board;
5, the device forming two gypsum wallboard, raw measurement automation to ensure quality and accuracy of wallboard;
6, using a hydraulic opening and closing of the mold, core pipe line of new silicone materials, pressure expansion mode design, the pumping vascular resistance reduced to zero, forming sheet metal damage rate is reduced to zero. Wear tube butted synchronization is complete, the core tube without washing;
7, gypsum board machine key components, parts are used internationally renowned brand products, core components have been fatigue endurance test and reliability test equipment to ensure stable operation, the failure rate to a minimum.

Fully automatic gypsum board making plant application:
gypsum board making plant --- Features a small investment in equipment, products, high-profit, can recover the costs in the short term, non-polluting, recyclable waste. Is a national advocate for environmental projects. The production process is easy to learn, extensive source of raw materials, is an ideal investment in construction projects selection.

Fully automatic gypsum board making plant  specifications:

Gypsum board production line specifications
Annual capacity(m2) Daycapacity(sheet)
Drier layerControl
2 Million20004PLC
5-8Million5000-80008DCS computer

10-15Million10000-1500010DCS computer

20-50Million20000-5000012DCS computer

Fully automatic gypsum board making plant working principle :
gypsum board making plant
Ingredients section:
Modified starch, retarding machine, pulp, water-reducing agent, into the water after the quantitative measurement hydrapulper stirred into a raw pulp slurry is then pumped into the reserve tank spare;
Foaming agent and water in proportion to stir into the foaming agent preparation tank, pumped into the foaming agent reserve tank (with a heating device, maintained above 35 °C) backup;
Coagulant and gypsum powder raw materials to enhance the delivery device into the hopper back;
Reserve slurry tank slurry metering pump into the mixer using after using dynamic foaming device foam blowing agent into the mixer, coagulant and gypsum powder using automatic metering belt, said metered into the mixer, then all primary excipients in a blender mixed into qualified gypsum slurry.
Description: All the main materials are added encompasses automatic control system, with different line speed automatically adjust to accommodate large-scale, high-speed requirements
Production of raw materials :
Building, gypsum, phosphogypsum, citric acid plaster, gypsum and other fluorine.
Plasterboard knowledge:
gypsum board making plant--- Plasterboard is a building material made of gypsum as the main raw material. It is a light weight, high strength, thin, easy processing and noise insulation and fireproofing materials, such as better performance, is currently one of the new focus on the development of lightweight board. Plasterboard has been widely used in residential, office buildings, shops, hotels and industrial plants and other buildings within the wall, the wall cladding panel (instead of wall plaster layer), ceilings, acoustic panels, floor boards and various grassroots kinds of decorative panels.
Plasterboard (gypsum board is divided into ordinary (common), fiber gypsum board, gypsum board decorative "interpretation") which gypsum as the main material, adding fiber, adhesives, modifiers, after mixing pressing, drying a. With fire, noise insulation, lightweight, high strength, shrinkage characteristics and good stability, non-aging, anti-moth, available nails, sawing, planing, sticky methods such as construction.

Project Case:

Gypsum processing plant
In gypsum processing plant, crushing, grinding gypsum into powder is the important step.
Machine used for Gypsum mineral processing plant
In this gypsum powder making plant, the machinery used is crushing machine, hoist, electromagnetic feeder, grinding machine, fluidized bed furnace( gypsum calcining equipment ), bunker, belt conveyor and dust collector.
Crushing machine used in gypsum crushing process
The crushing machine used in gypsum powder making is hammer crusher, jaw crusher and cone crusher. They can crush gypsum rocks into particles.
Jaw crusher for gypsum: Jaw crusher is used as primary gypsum crusher in gypsum primary crushing process. It can crush gypsum into small particles less than 8 cm. SBM Jaw Crushers are crushing without rubbing Minimum dust Oil lubrication, devise having Oil/Grease lubrication system. Our jaw crushers are designed for long life service with minimum maintenance for hard, tough, abrasive material and overload high capacity.
Cone crusher and hammer crusher is the gypsum secondary crushing equipment in processing plant. These gypsum crushing machinery can crush gypsum into small pieces less than 2cm. Cone crusher is designed without rubbing Minimum dust Oil lubrication, Law wear parts Gap adjustment and overload protection High capacity, High operational eliability Long service and life time Easy replacement of wear and spare part Wide range of application.
Hammer crusher
Hammer crusher is usually used before grinding plant. It is mainly used to crush large stones or rocks into smaller particles for grinding powder production.
Gypsum mill used in grinding process
The grinding mill used in gypsum processing plant usually is the raymond mill. Raymond mill usually has three models: 3R2714, 4R3216, 5R4119. The finished size can be upto 0.044mm, and can be adjusted from 100 mesh to 325 mesh. Other grinding mill is also used such as ultrafine mill, trapezium mill.
Gypsum processing equipment manufacturer
SBM is a famous mining and construction equipment manufacturer in China, and can design and supply the complete gypsum mining and processing equipments for your gypsum powder production line such as gypsum crusher machine and grinding mill in USA, Iran, Canda, Spain, Mexico, Thailand, Japan, France, Australia, India, Egypt, Italy, Poland, Ethiopia.
The gypsum powder production line
The gypsum powder production line includes four process flow: crushing, grinding, calcine, storing and feeding.
By using loader to feed the gypsum rock to the raw material storage bin. And then it will be transferred to the crusher to be crushed. Gypsum rocks is crushed into particles less than 30 mm by gypsum crusher, Then gypsum particles is feeded into raymond mill for grinding into partical size by electromagnetic feeder. The gypsum powder that meet the requirement of size is transported into fluidized bed furnace for burning. When heating and calcining the dehydrate gypsum and chemical gypsum (ardealite, desulphurization plaster, fluorgypsum), the dehydrate gypsum was decomposed, we get the semi-hydrated gypsum, i. E., plaster of Paris.
Dry gypsum process flow: plaster stone go through primary crushing process using jaw crusher, the size is less than 8 cm, the go through secondary crushing process, in this process, cone crusher is used as fine crusher, then the sie is less than 2 cm. After calcination, the calcined gypsum is grinded into the powder with 200-325 mesh by gypsum mill.

Fully Automatic Gypsum Board Making Plant
