Huading Separator has been at the forefront in the field of centrifugal separation technology for more than 50 years – which is why disc stack centrifuges from Huading Separator perform this crucial separation function exceptionally well.

Today, Huading Separator is the leader in mechanical separating technology in China. Huading developments are used in a wide range of areas – in the beverage and dairy industries, in recovering and processing oils and fats, as well as in chemicals, pharmaceuticals, biotechnology and starch technology. Other applications include marine engineering, energy, oil fields and industry.

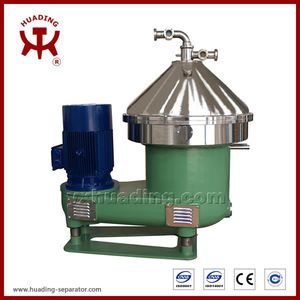

 this series disc centrifuge is specilized for wool lanolin processing. they are widely used in wool grease plants. special designed wear protection ensure centrifuge services long time.

the disc stack separator separates solids and one or two liquid phases from each other in one single continuous process, using extremely high centrifugal forces. When the denser solids are subjected to such forces, they are forced outwards against the rotating bowl wall, while the less dense liquid phases form concentric inner layers. The area where these two different liquid phases meet is called the interface position. This can be easily varied in order to ensure that the separation takes place with maximum efficiency. Inserting special plates (the “disc stack”) provides additional surface settling area, which contributes to speeding up the separation process dramatically. It is the particular configuration, shape and design of these plates that make it possible for a disc stack centrifuge to undertake the continuous separation of a wide range of different solids from either one or two liquids. The concentrated solids phase formed by the particles can be removed continuously, intermittently or manually, depending on centrifuge type and the amount of solids involved in the specific application.

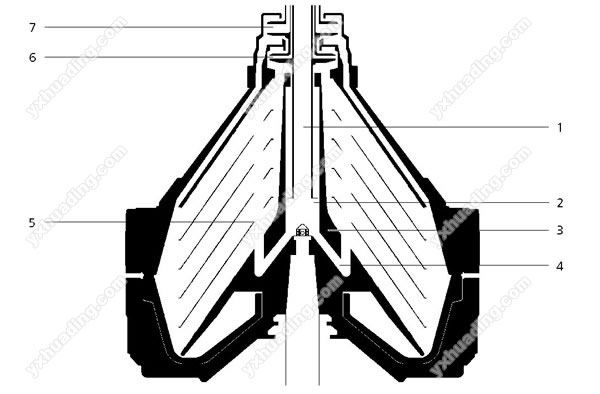

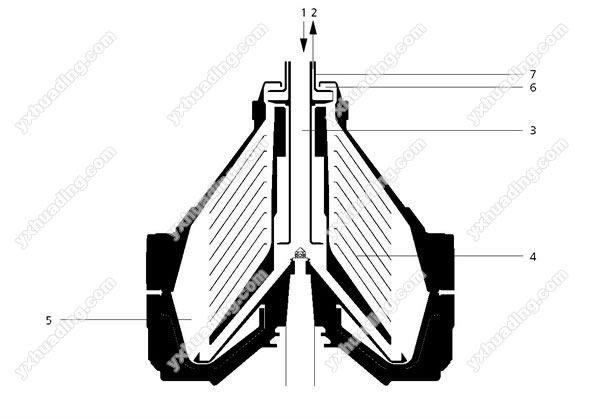

2-phase separation disc separator

1 Feed

2 Discharge

3 Inlet tube

4 Disc stack

5 Solids holding space

6 Centripetal pump chamber

7 Centripetal pump

3-phase separation disc separator

1 Inlet tube

2 Central bore

3 Distributor

4 Distributor bore

5 Rising channels

6 light phase centripetal pump

7 heavy phase centripetal pump

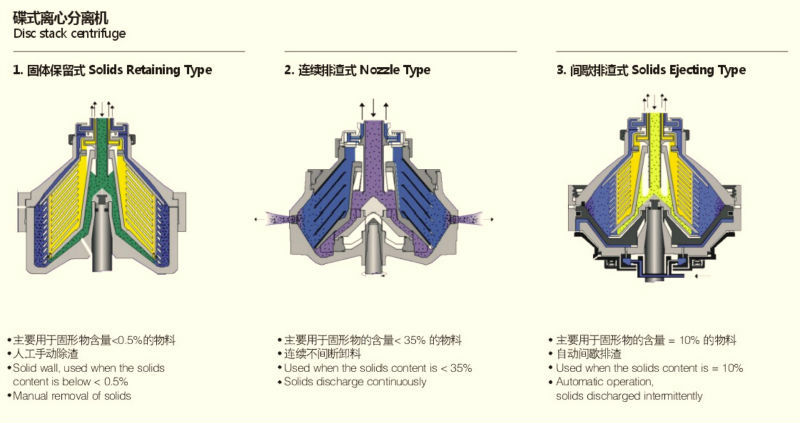

Usually, self-cleaning separator is divided into two types. One is used for solids and two liquid phases from each other in one single continuous process, it is so called purifier. The other is used for solids and one liquid phase from each other, it is so called clarifier.
