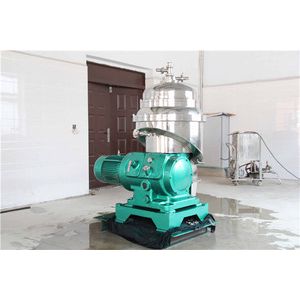

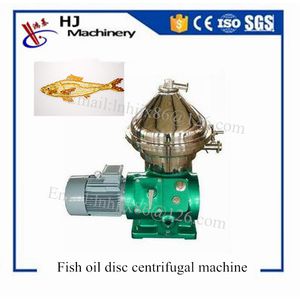

Edible fish oil extraction disc separator centrifugal machine

the disk stack centrifuge superior to the other separator or centrifuge is the advanced automatically system.

Technical Feature

  • New
  • Centrifuge
  • fish oil centrifuge machine
  • Liaoning, China (Mainland)
  • Hongji
  • DHC500
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Condition
New
Type
Centrifuge
Product Type
fish oil centrifuge machine
Place of Origin
Liaoning, China (Mainland)
Brand Name
Hongji
Model Number
DHC500
Voltage
380V
Power(W)
18.5kw
Weight
1000kg
Dimension(L*W*H)
1500*900*1500
Certification
ISO
Warranty
Within 12 Months
After-sales Service Provided
Engineers available to service machinery overseas
Bowl inner diameter
500mm
Rotating speed
4450rpm
Separation factor
5500g
Throughput capacity
10000L/hr
Motor power
18.5kw
Operation type
Automatic
Material
Stainless Steel 304
Discharge
Full-automatic

DETAIL DESCRIPTION

Product Description



DHC finsh oil disc centrifuge specification :

1.under food hygiene requirements
2.automatic discharge
3.refining animal fat
4.ISO



Product Description:

Disk centrifuge os a high efficiency ,large capacity and advanced automatic machinery which is suitable for the lower suspension liquid and proportion dissolve liquid .It is the essential machinery for Pharmaceutical ,Chenical ,Bio-products and beverage etc .The principle is based on the centrifugal forces by different liquid proportion force ,So it can achieve the separation purpose .the disk stack centrifuge superior to the other separator or centrifuge is the advanced automatically system.

Separation Principle:

 Disk centrifuge is our company patent products ,suitable for the lower suspension liquid and proportion dissolve liquid.

 The mixture fluid to be processed are fed to the bowl from feeding pipe ,under the effects of centrifugal force, he solids which has heavier density collects on the bowl wall .it include jams and impurities ,collected in sediment holding space .After a while ,the separated soilds are ejected from the bowl at controlling of PLC .the intervals at which de-slugging have to take place depend on the quality of the mixture fluid .De-slugging include automatic de-slugging ,total de-slugging ,partial de-slugging ,Normally customer don't need total de-slugging ,put up partial de-slugging under the condition of effects of automatic de-slugging are bad .the interval between two partial de-slugging is up to two minutes ,and electric current is normal .then re-establish the automatic de-slugging interval .The lighter products (lower density )flow along the inner side of the discs into the passage in the upper distributor ,the lighter product is discharged from the machine by the centrifugal pump .Thus the mixture fluid is separated well ,the centrifuge adopts self de-slugging and centripetal pump .Thus the machine can work continuously for a long time,attain good separation effects in long run.

Feature:
• Full automation possible with PLC automatic control panel.
• Centrifugal separation requiring no filter media.
• High reliability drive train system backed by delivery of over 1,000 units a year.
• Bowl design with superior separation performance and with good response to discharge loads.
• Pilot valve regulates total/partial discharge of solids.
• Super partial discharger (option) minimizes liquid loss and maximizes thickening of solid
• fraction for discharge.
• Vibration-proof design realizes long working life.
• Full automation possible with PLC automatic control panel


Application Scope:
• Beverage: Wine, tea, coffee and beer.
• Juices: Vegetable juices, various kinds of fruit juices
• Vegetable oil: Coconut oil, colza oil, cotton seed oil, corn oil, palm oil, soybean oil, peanut oil, rice oil,                                 sesame oil, safflower oil,
• Animal oil: Fish oil and other animal oil.
• Mineral oil: Fuel oil, diesel oil, lubrication oil, transformer oil and waste oils.

Technical Parameters:

ModelDHC300DHC400DHC500DHC550DHC730
Bowl Speed r/min73007056660062004500
Sedimentation Area cm^217.2*10^728.5*10^735*10^767*10^790*10^7
Through-output  T/H25101535
Motor Voltage Kw47.51118.555

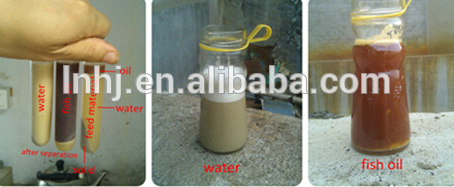

The separation effect:







Assembly Parts

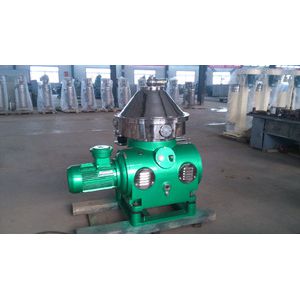

Finished Products

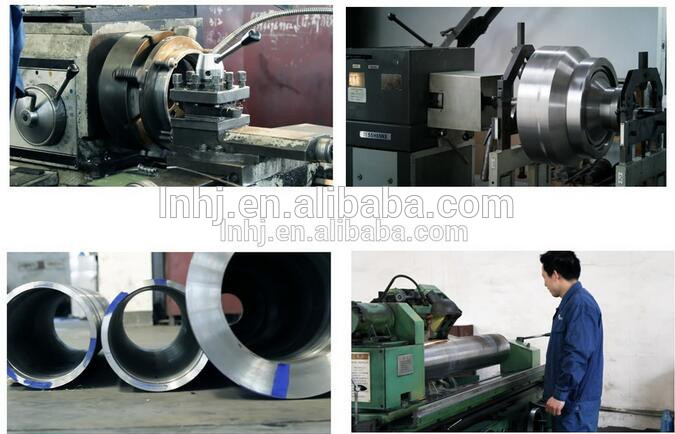

Manufacturing shop









After-Sales Service

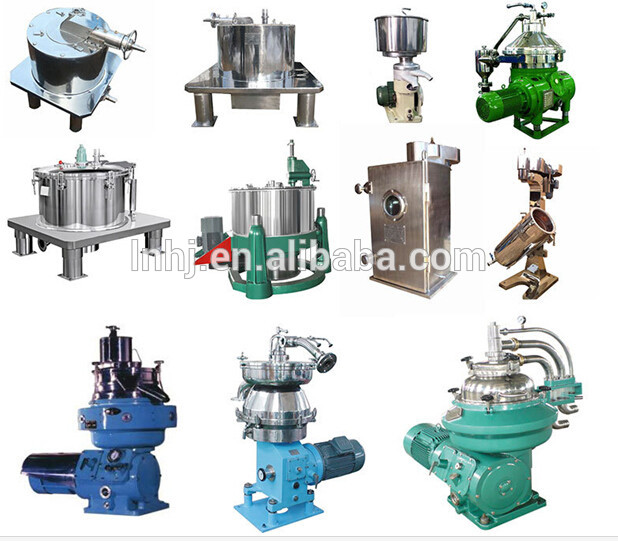

Related Machine



If you are intersetd in our fish oil disc centrifuge,plesae don't hesitate to contact with me ,thank you .
