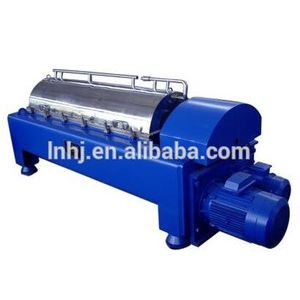

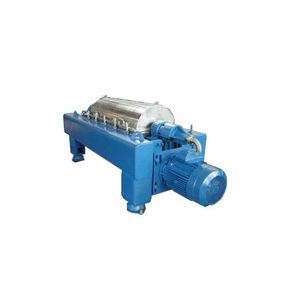

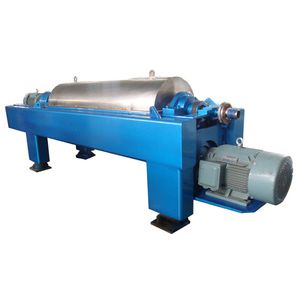

LW420 Decanter Centrifuges Municipal Sludge Dewatering

Sludge dewatering is the separation of a liquid and solid phase whereby, generally, the least possible residual moisture is required in the solid phase and the lowest possible solid particle residues are required in the separated liquid phase ("the centrate").

A typical example of this type of two-phase separation is the dewatering of sludge from municipal sewage plant or industrial waste water treatment. In this case, the residual moisture in the dewatered solids determines the disposal costs and the centrate quality determines the pollution load returned back to the treatment facility. Minimizing both must be achieved at the lowest possible cost, with the lowest possible polymer and energy consumption, with low maintenance costs and with the lowest possible number of required operating staff. In practice, the operator quickly realizes that there is no clearly defined operating point given daily and seasonal fluctuations; changes in system input or process configurations, as well as malfunctions of every sort always present new challenges that must be met. The LW model decanter centrifuge is a highly engineered piece of process equipment designed to separate insoluble suspended solids from a liquid. The centrifuge can be used to produce a relatively dry cake from the separated solids and are flexible enough to cope with a wide fluctuation in the feed material and still achieve excellent clarification and dewatering performance.

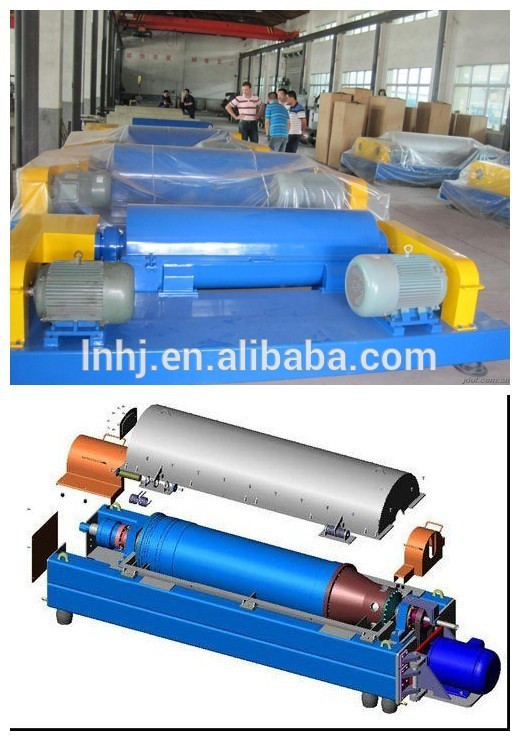

The centrifuge consists of a solid bowl, which rotates and contains the process. A screw conveyor, contained within the bowl, turns at a slightly different speed from the bowl.

Sludge Dewatering paramter:

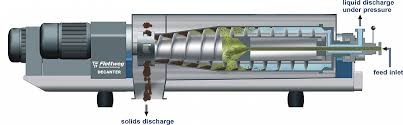

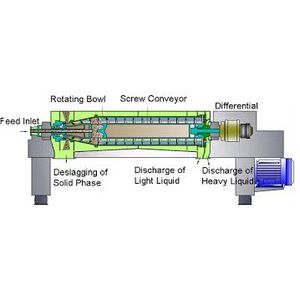

Working principle picture:
