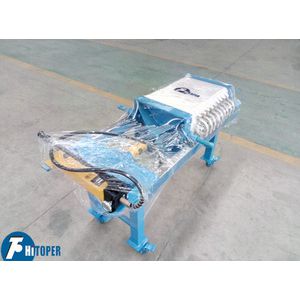

Polypropylene Plate-frame Filter press used for water water treatment
1.Brief introduction:
The slurry materials are sent to filter chamber by the pressure of feeding pump. Then filtrating media(filter cloth) separates solid and liquid in slurry material. When solid in slurry becomes cake shape, air is sent to diaphragm to fully squeeze the solid to reduce moisture content. If users have high requirements about filtration of sticky material and moisture content ratio, this machine has its own special characteristics to meet the needs.
It is available in manual, semi-automatic, and fully automatic units incorporating PLC control and automatic cake slagging system. You can easy to use our machine.
2.Application industry:
Filter press is usually used in all kinds of suspension liquids for separating solid and liquid, such
as food, environmental protection light industry,
medicine, chemical industry, metallurgy, petroleum industry, etc., oil filter press, as the name suggests, is widely used in oil industry.
Oil filter press is important equipment in oil mill plant which is quite suitable for clearing and filtering the different plant rudeoil, also
it could clear the waste water, waste cooking oil. Use the smaller mesh filtering cloth, which could be used for clearing the biodiesel oil .

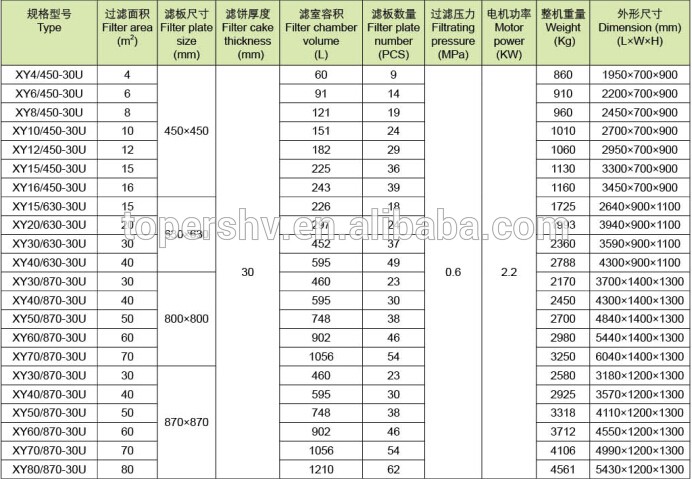

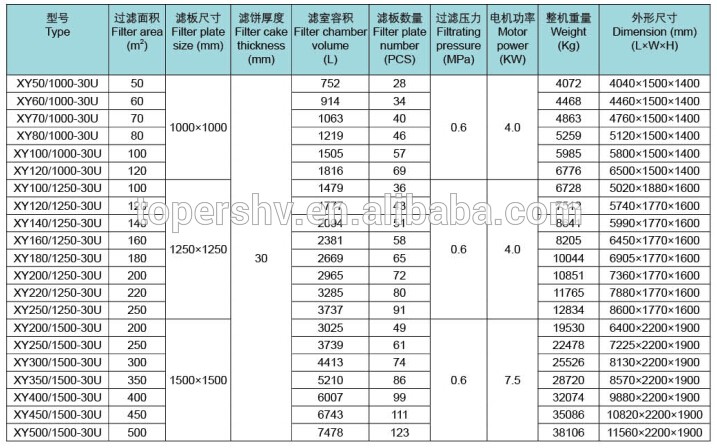

3.All types technical parameters:
4.Hydraulic station:
4.11Hydraulic unit, carbon steel bending welding and sealing.
A.Air filters external oil pumps of Shanghai Dazhong brand, with a better cooling effect and easy maintenance
B.Hydraulic valves of Shanghai Huadao brand.
C.High pressure oil pipe (36Mpa, 1.5m) and low pressure oil pipe (22.4Mpa, 2m), China standard soft connection.
4.12 Hydraulic cylinder, welded using material 27SiMn seamless steel pipe, Inner diameter and stroke is Φ120X400, pressing pressure is 18-20MPa.
4.13 Piston rod, Medium-frequency hardening with 45# steel, the surface hardness can be HRC48-50, and there is a protect cover outside.

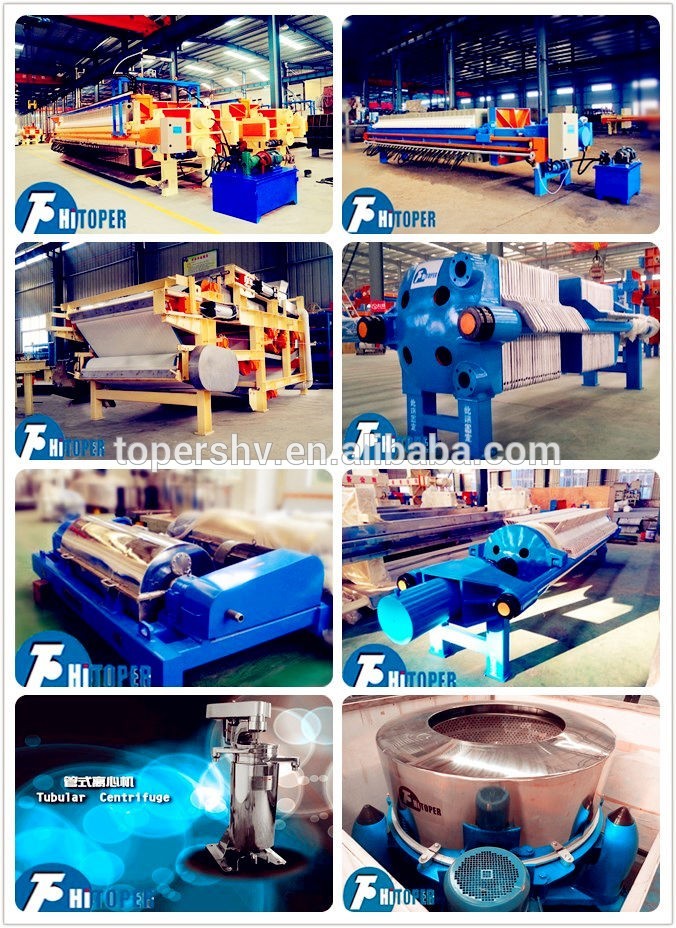

6.More photos:
Our manufacturing base of filter equipment mainly produce full automatic or semi-automatic membrane filter press, recessed filter press, belt filter press, centrifuge, etc. All these products are widely used in mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, food, alcohol, inorganic salt, coal washing, and waste water processing industry.
All of Toper's products:
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
15. SS type three-foot upper discharge centrifuge
16. SD type three-foot and filter bag hoist discharge centrifuge
17. PD type filter bag hoist discharge centrifuge
18. Centrifuge of up discharge, three foot, clean series SSB
19. SX type manual top discharge centrifuge
20. PS type manual top discharge centrifuge
21. SGZ type automatic scraper bottom discharge centrifuge
22. PGZ type scarper bottom discharge centrifuge
23. LW series decanter centrifuge
24. Tubular centrifuge
25. Multi-layer stainless steel frame filter
26. Bag filter
27. Diatomite filter
28. Filter late
29. Filter cloth
30. Vacuum disc filter
Reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
How to order filter press:
1.Select the model,plate and fram material,pressing mode and filtering form by considering the filter press introduction and parameters.
2.According to your products,select open flow and close flow ,washable or non-washable,and specify the conditions in the contract.
3.The unit is provided without pump.To order the unit complete pumps,state it in the contract.
4.Our company can supply non-standard model to meet your special demands.
