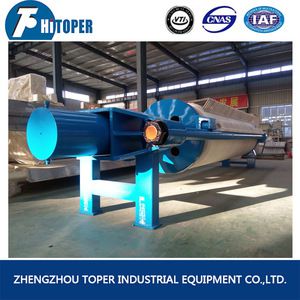

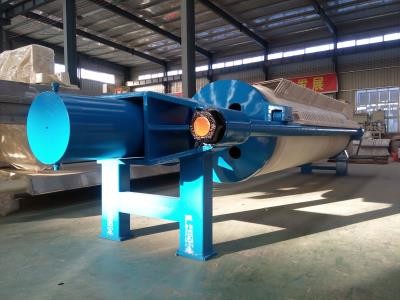

800mm Round plate Slurry Filter press for Waste Water Treatment
Filter area: 20-80m2
Filtration pressure: 1-2.5MPa
It is used for solid-liquid separation of stone wastewater, ceramic, kaolin, building materials and other industries, high filtration pressure, low moisture content.
Technical data of frame filter press with 800mm circular/round plate
Model | Filter area (m2) | plate size (mm) | Cake thickness (mm) | Number of plate (pcs) | Filter chamber volume (L) | Pressure (Mpa) | Maximum displacement | Rated pressure | Dimensions (mm) L x W x H(mm) | Weight (kg) | ||
L | W | H | ||||||||||
XMY20/800-25 | 20 | 800 | 25 | 20 | 255 | 1.0-2.0 | 500 | 22 | 3300 | 1100 | 1060 | 3346 |
XMY30/800-25 | 30 | 30 | 377 | 3780 | 3590 | |||||||
XMY40/800-25 | 40 | 40 | 499 | 4300 | 4554 | |||||||
XMY50/800-25 | 50 | 50 | 621 | 600 | 4820 | 5150 | ||||||
XMY60/800-25 | 60 | 60 | 753 | 5340 | 9710 | |||||||
XMY70/800-25 | 70 | 70 | 875 | 5860 | 5760 | |||||||
XMY80/800-30 | 80 | 30 | 80 | 1200 | 6860 |
Note:
1. if need add seal ring between plate sealing surface, overall dimension of L1 will be increased;
2. when generated orders, users should mark filter pressure in order to meet application requirements.
Our company produces various models of recessed plate and plate-frame mechanical filter press, hydraulic filter press, membrane filter press, cast iron type filter press, stainless steel filter press and fully automatic filter press and filter press spare parts. And our filter presses are used in a wide variety of mining, coal washing, acid clay, bentonite, kaolin, ceramics, cement, clay, sand industry etc.
For filter press, there are several kinds:
1. Membrane filter press
2. Hydraulic compress filter press(chamber type, plate and frame type)
3. Automatic filter press(chamber type, plate and frame type, membrane type)
4. Filter press of stainless steel plate
5. Cast iron plate and frame/chamber filter press(for palm oil)
6, High pressure round filter plate filter press(solid-liquid separation for stone, ceramic, kaolin, building materials)
7. Belt filter press (for sludge dewatering , waste water treatment, coal washing, printing and dyeing industry)
For centrifuge, there are several types for reference:
1. From structure: SS three-foot type, PD type, LW horizontal type, Tubular centrifuge, etc.
2. From usage: filter centrifuge, decanter centrifuge.
3. From drum dia.: 300-1600mm.
4. From drum load limit: 10-1200kg

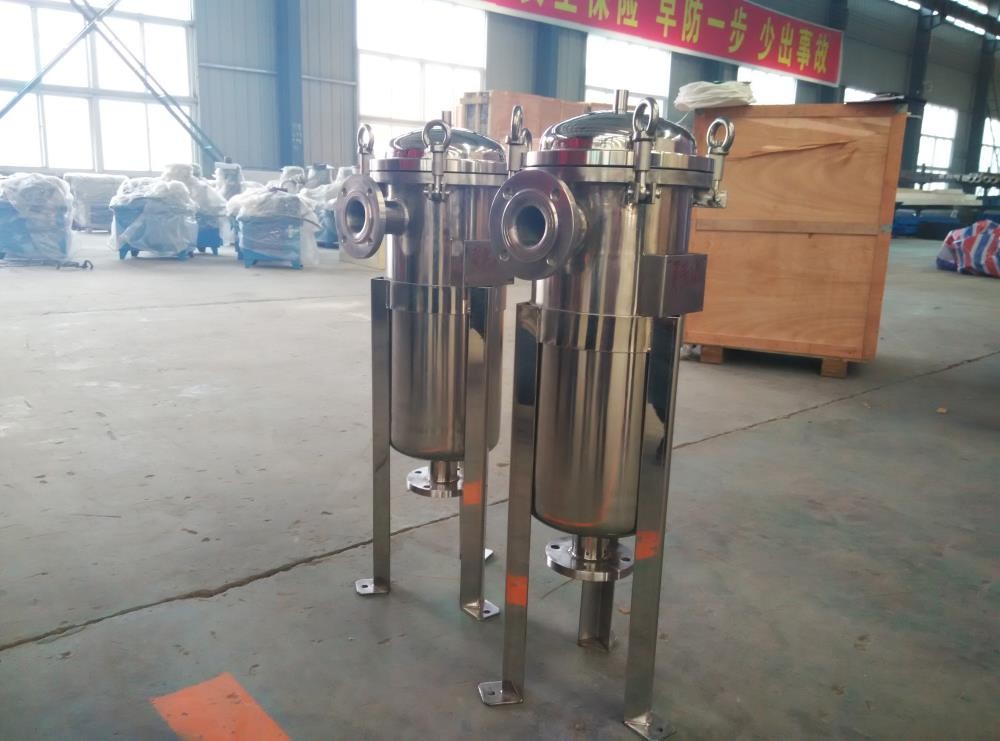

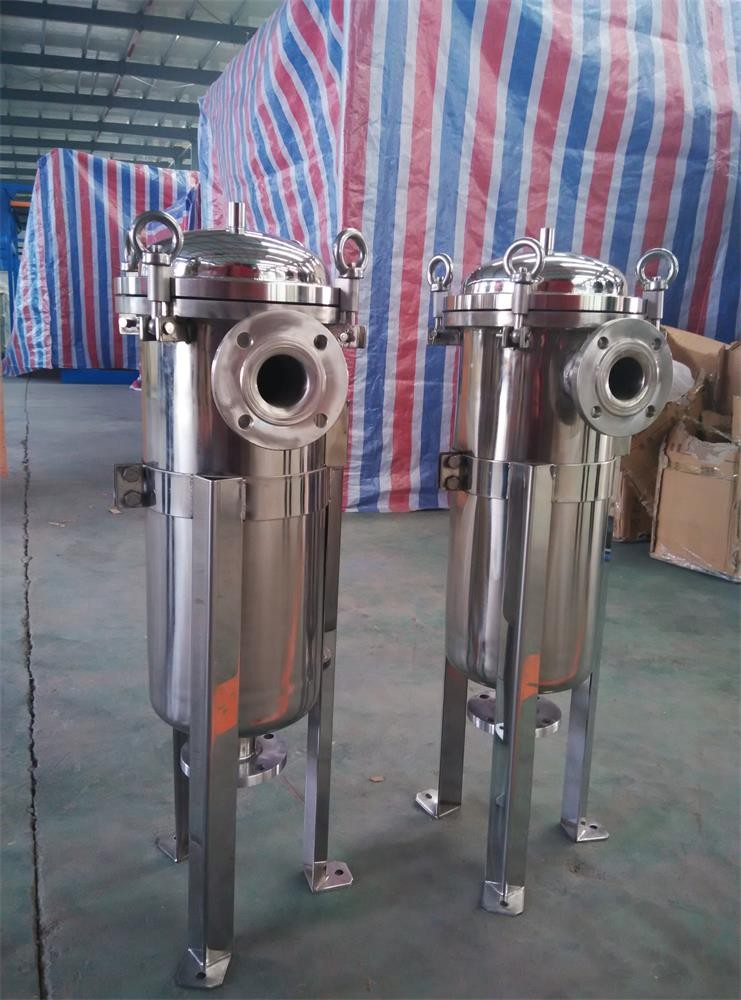

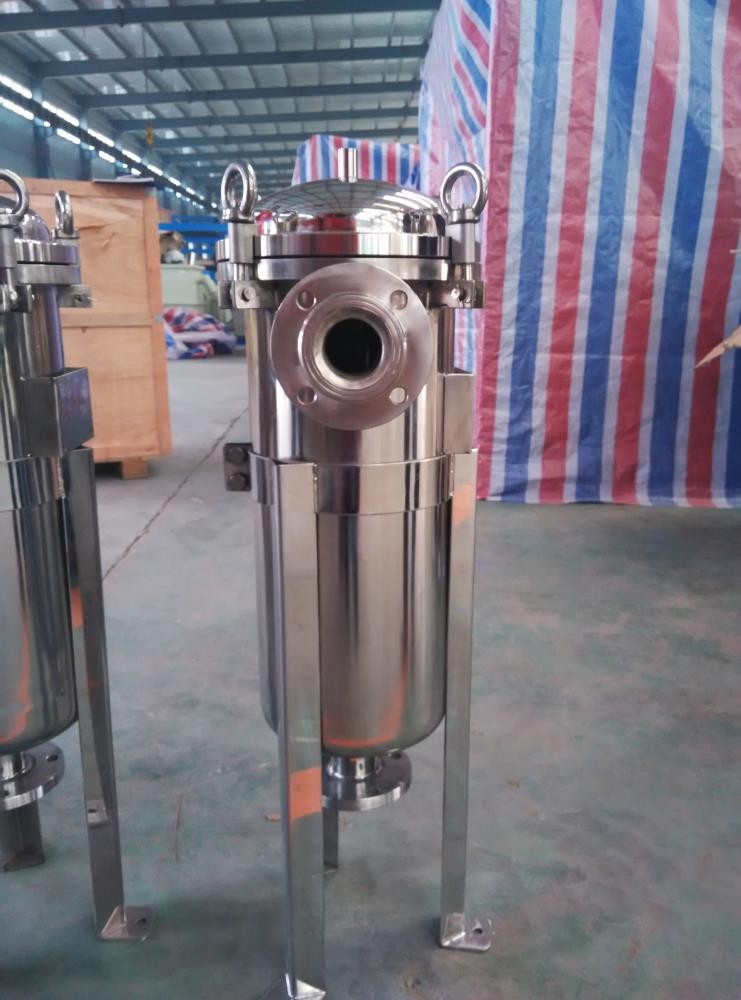

Bag filter:
