Plate and Frame Type Filter Press

filter press is a device for spasmic solid-liquid separation with plate, frame as filter room where liquid was transferred into by conveying pump, solid-liquid separation will be achieved by filter media.

Technical Feature

  • New
  • Automatic
  • Shandong, China (Mainland)
  • BETTER
  • XMJ
  • ISO9001; SGS
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$50~800

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Automatic
Place of Origin
Shandong, China (Mainland)
Brand Name
BETTER
Model Number
XMJ
Certification
ISO9001; SGS
Warranty
One year
After-sales Service Provided
Overseas service center available
Certificate
ISO9001; SGS
Material
Carbon steel, PP, steel compound rubber
Color
Blue
Payment
L/C or T/T
Delivery time
Within 30 days

DETAIL DESCRIPTION

filter press

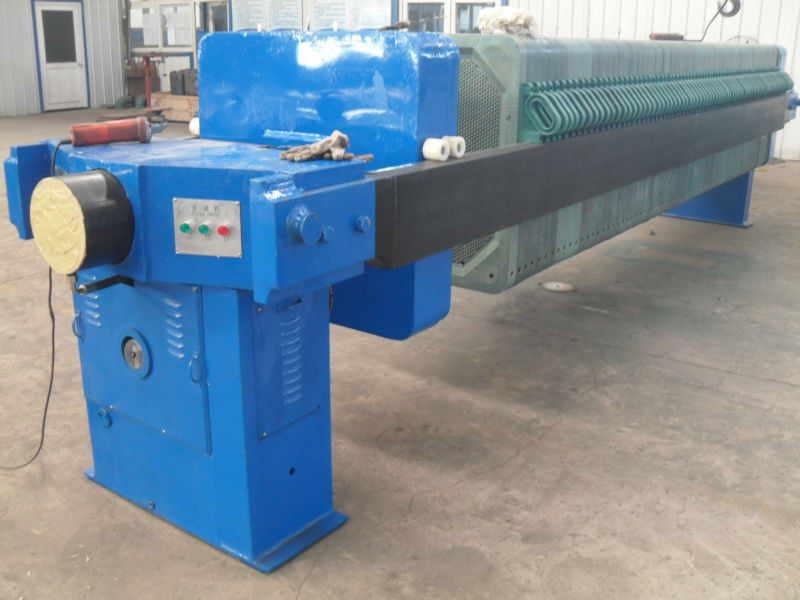

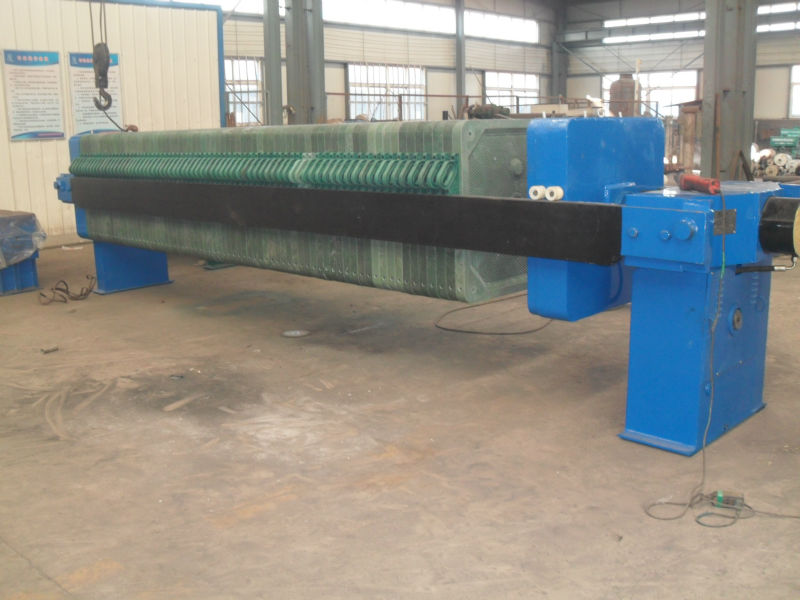

Plate and Frame Type Filter Press



Plate-and-frame (type) filter press is a device for spasmic solid-liquid separation with plate, frame as filter room where liquid was transferred into by conveying pump, solid-liquid separation will be achieved by filter media.



It is widely used in wastewater treatment for industries, such as chemical engineering, dyes, petroleum, pottery, pharmaceutical, sugar and food manufacturing, starch, syrup, painting, metallurgy and so on. It has a superiority in separation of adhesive material with advantages of good performance, wild application, easy operation, low cost etc.



Technical parameter

1.       Manual operation

Spec.

Filter area

Material

Form

450

1²--30²

PP, Steel compound rubber

Box, plate-frame

630

10²--40²

PP, Steel compound rubber

Box, plate-frame



2.       X AM J  Mechanical Tighten Filter Press

Spec.

Filter area

Material

Form

630

15²--40²

PP, Steel compound rubber

Box, plate-frame

870

40²--100²

PP, Steel compound rubber

Box, plate-frame



3.       X AM J  Hydraulic Tighten, Mechanical Tighten Filter Press

Spec.

Filter area

Material

Form

930

40²--100²

PP

Box, one plate one frame

1000

100²--180²

PP, Steel compound rubber

Box, one plate one frame

1250

130²--300²

PP, Steel compound rubber

Box



4.       X AM J  Automatic Filter Press

Spec.

Filter area

Material

Form

1000

100²--180²

PP

Box, one plate one frame

1250

130²--300²

PP, Steel compound rubber

Box

1500

160²--500²

PP, Steel compound rubber

Box
