LPG-5 high speed centrifugal spray dryer

Spray drying is the technology most widely used in the liquid technology shaping and in the drying industry.

Technical Feature

  • New
  • Spray Drying Equipment
  • Jiangsu, China (Mainland)
  • jinrui
  • LPG-5
  • 380V
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Condition
New
Type
Spray Drying Equipment
Place of Origin
Jiangsu, China (Mainland)
Brand Name
jinrui
Model Number
LPG-5
Voltage
380V
Power(W)
9kw
Dimension(L*W*H)
Varied
Weight
Depended
Certification
ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Inlet temperature
140-350u2103
Outlet temperature
about 80-90u2103
Maximum evaporation of water
5kg/h
Centrifugal spray head rotating form
Compressed air transmission
Rotation speed
25000rpm
Spray desc diameter
50mm
Heat source
Electricity
Electric heating at maximum power
9kw
Length X width X height
1.8*0.93*2.2m
Yield
u226595

DETAIL DESCRIPTION

Product Description

Spray drying is the technology most widely used in the liquid technology shaping and in the drying industry. The drying technology is most suitable for producing solid powder or particle products from liquid materials, such as: solution, emulsion, suspension and pumpable paste states. For this reason, when the particle size and distribution of the final products, residual water contents, mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technologies.

Principle

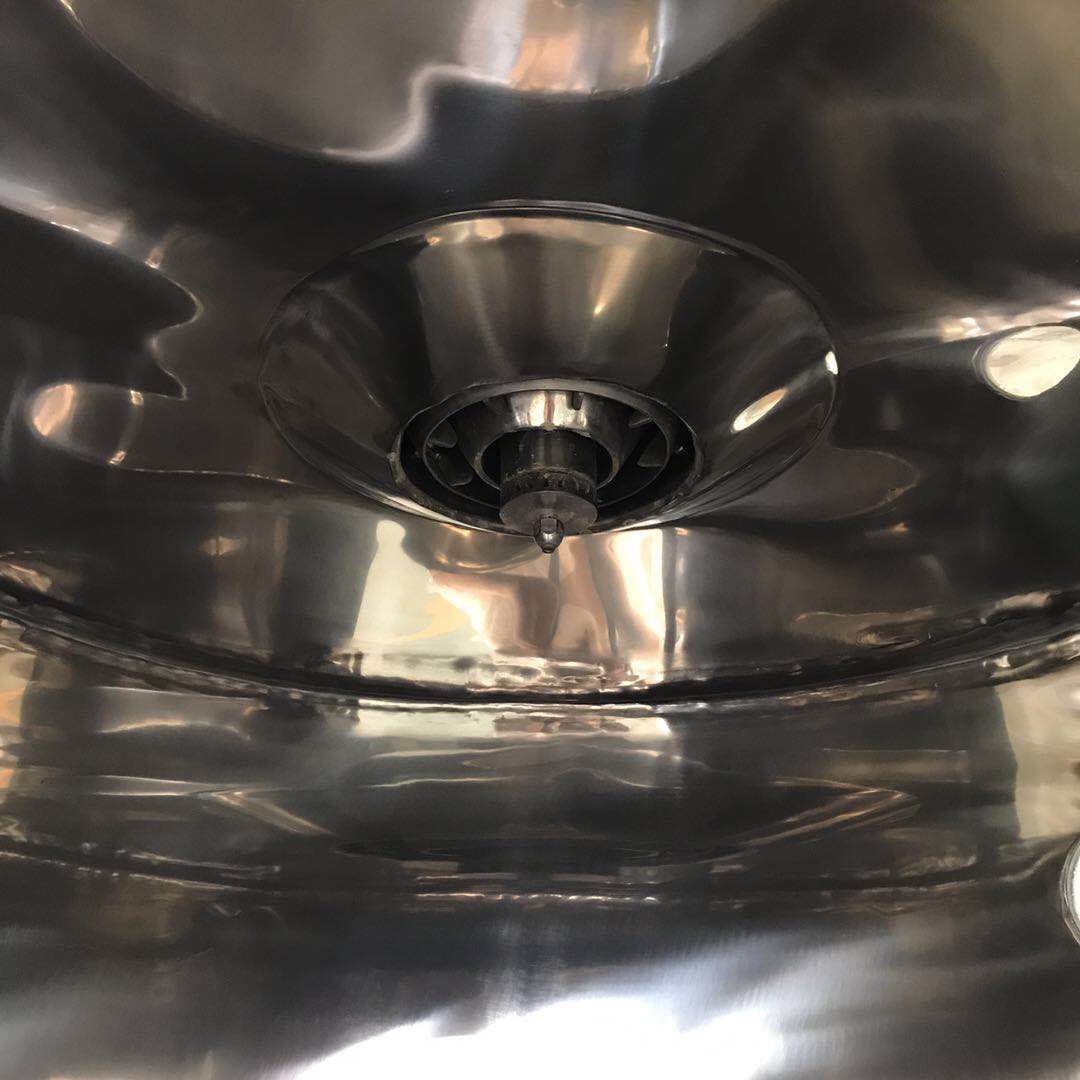

After the air been filtered and heated the air enters into the air distributor on the top of the dryer. The hot air enters into the drying room in the spiral form and uniformly. Passing through the high-speed centrifugal sprayer on the top of the tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads. Through the very short time of contacting the heat air, the materials can be dried into the final products. The final products will be discharged continuously from the bottom of the drying tower and from the cyclones. The waste gas will be discharged from blower.

Features

 (1)The drying speed is high when the material liquid is atomized, the surface area of the material will increase greatly。 In the hot-air flow, 95%-98% of water can be evaporated at a moment. The time of completing the drying is only several seconds. This is especially suitable for drying the heat sensitive materials.
 (2)Its final products own the good uniformity, flow ability solubility. And the final products are high in purity and good in quality.
 (3)The production procedures are simple and the operation and control are easy.

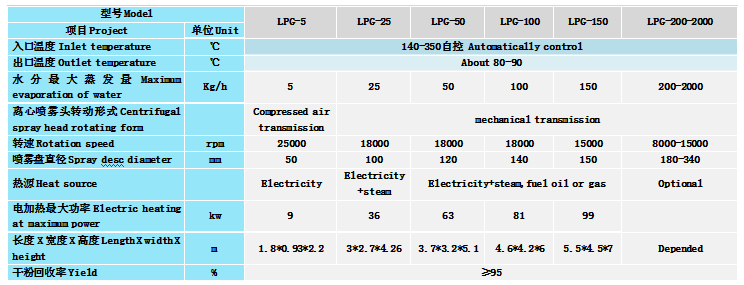

Technical parameter

Our Service

Pre-sales service

1)Professional advice and rich experience help to choose machine.
2) Inquiry and consulting support
3) View our factory

After-sales service

1)Training how to install and use the machine
2)Engineers available to service machinery overseas.
3)one year guarantee,whole life service.

Packing & Delivery

We have long-term working shipping forwarder. We can do our best to send machine to your port safe and sound.
If you need, we can help you do custom clearance.
Packaging Details: 1. Outside package: Standard export wooden cases.
                                    2. Inner package: Air bubble film and stretch film.
Delivery Details:    about 40 workdays after payment.
