All parts in contact with materials are stainless steel 304

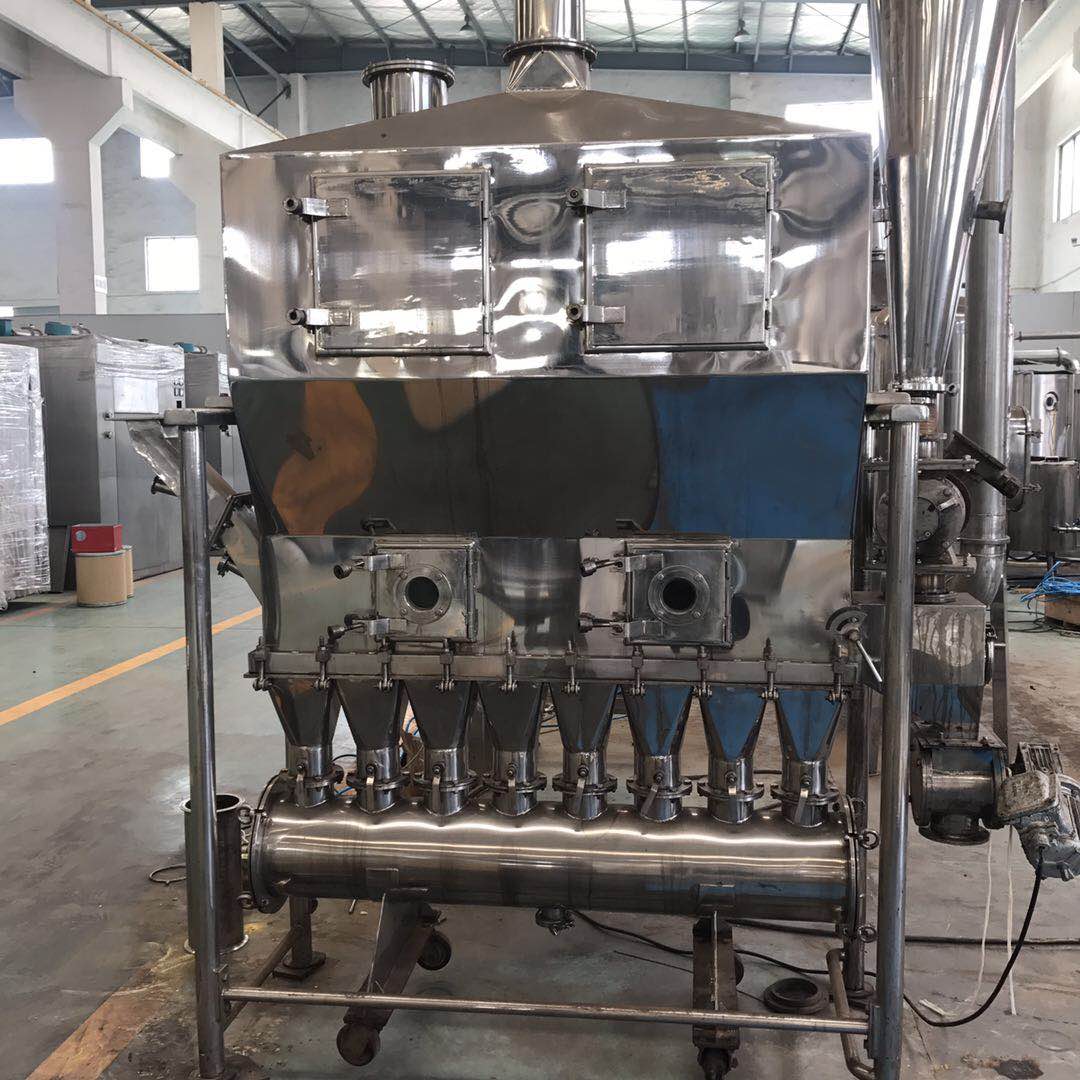

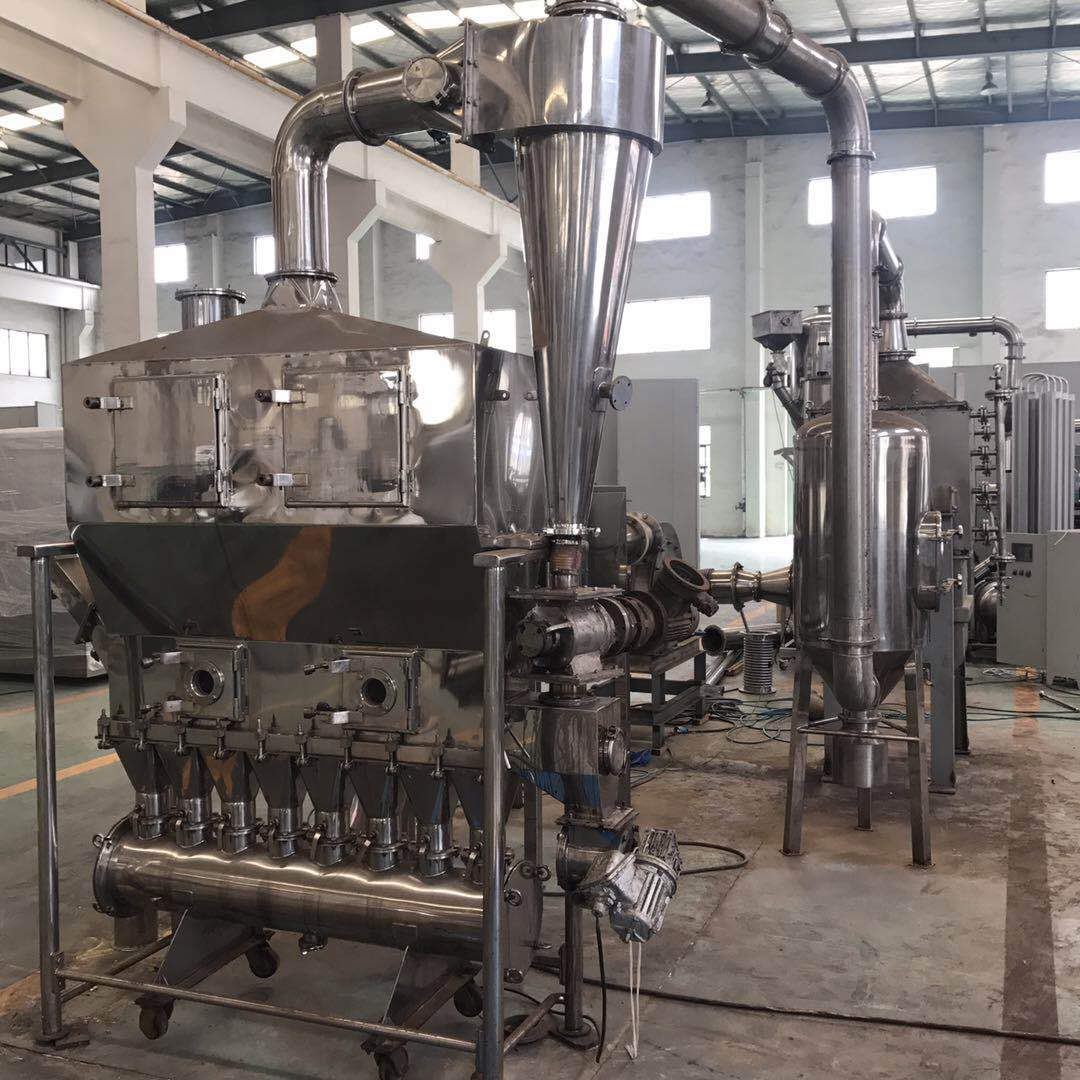

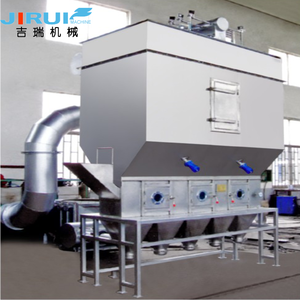

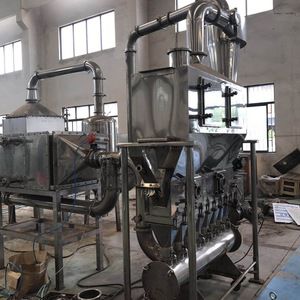

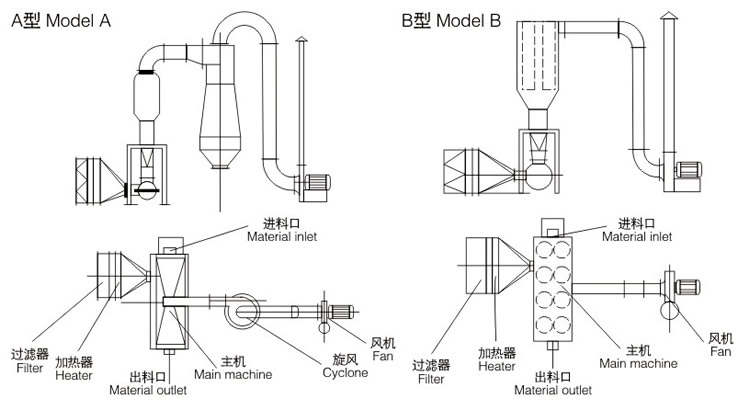

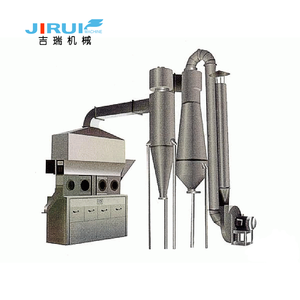

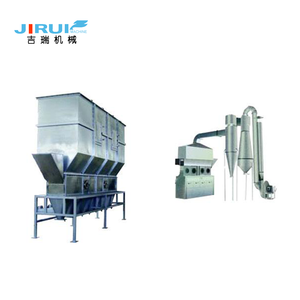

The fluid bed is composed of air filter, heater, fluid bed main machine,cyclone separator, bag dust collector, high pressure centrifugal fan,operation platform, etc. Due to different properties of materials to be dried, when equipping the dryer with dust removing devices, you can select the cyclone separator and bag dust collector, or select one of them according to the needs. Generally, you only need to select the cyclone separator for materials with relatively high specific gravity such as medicinal granules and granular materials, and select the bag dust collector for materials with relatively low specific gravity such as small granules and powder materials. The pneumatic feeding device and belt conveyor are also available for selection.

It can be equipped with the steam, electric or hot air furnace(according to user requirements).

The granular solid materials are fed by the feeder into the fluid bed dryer. The clean air after filtration and heating will be sent by the blower to the bottom of the fluid bed and contact the solid materials after passing through the distribution board, so as to form fluidizing and realize heat and mass exchange between gas and solid. The materials after drying will be discharged from the material discharging hole. The waste gas will be discharged from the top of the fluid bed and then pass through the cyclone dust collector and bag dust collector for recovery of solid powders before discharging.

It is suitable for drying granular materials, such as pharmaceutical materials, granules for tablet pressing, medicinal granules in the pharmaceutical industry, plastic resin, citric acid, and other powder and granular materials in the chemical industry, as well as food and beverage granules, grain, maize embryo, feedstuff, etc. The maximum particle size of materials can be 6mm, and the best particle size is 0.5-3mm.

Pre-sales service

1) Professional advice and  rich experience help to choose machine.

2) Inquiry and consulting support

3) View our factory

After-sales service

1) Training how to install and use the machine

2) Engineers available to service machinery overseas.

3)one year guarantee,whole life service. Within1 year, any problem part can send to us, we can give provide free new part (only damaged by machine itself).

We have long-term working shipping forwarder. We can do our best to send machine to your port safe and sound.

If you need, we can help you do custom clearance.

Packaging Details: 1. Outside package: Standard export wooden cases.

                                  2. Inner package: Stretch film.

Delivery Details:    about 40 workdays after payment.
