LPG-5 Series Centrifugal Lab Scale Spray Dryer Price

LPG Lab Spray Dryer price is a wide applied process in liquid process shaping and drying industry.

Technical Feature

  • New
  • Spray Drying Equipment
  • Jiangsu, China (Mainland)
  • KODI
  • LPG-5 Series
  • 220V - 415V
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$23~8

PRIMARY PARAMETERS

Condition
New
Type
Spray Drying Equipment
Place of Origin
Jiangsu, China (Mainland)
Brand Name
KODI
Model Number
LPG-5 Series
Voltage
220V - 415V
Power(W)
15kw
Dimension(L*W*H)
1.68x1.5x2.1m
Weight
600Kg
Certification
ISO9001,CE
Warranty
12 Months
After-sales Service Provided
Engineers available to service machinery overseas
Product name
LPG-5 Series Centrifugal Laboratory Scale Spray Dryer Price
Material
SS304 and 316L
Use purpose
Lab or pilot
Atomizer
Centrifugal atomizer
Heater
Electric heater
Water consumption
0.1m3/h
Water Evaporation
3~5Kg/h
Inlet operation temperature
180-250 u2103
Outlet operation temperature
90-110 u2103
Installation service
KODI service

DETAIL DESCRIPTION

LPG-5 Series Centrifugal Lab Scale Spray Dryer Price

1, Lab spray dryer price / spray dryer price / lab dryer price

2, Low energy consumption and large handling capacity

3, Easy operation and control



Product Description

Lab Spray Dryer Price Description

LPG Lab Spray Dryer price is a wide applied process in liquid process shaping and drying industry. Particularly it is suitable for producing powder, granule or block solid product from solution, emulsion, suspending liquid and pumped paste liquid. Therefore when the distribution of granule size, final moisture, bulk density, granule shape of finished product must be conformed to accuracy standard, the spray drying is an ideal process.



Lab Spray Dryer Price Application

LPG lab spray dryer price is widely used in foodstuff, pharmaceutical and chemical industry, such as egg powder, amino acid product, protein, blood, food flavor, food ingredients, pectin, carrageenan, spirulina, herbal extraction, pigment, cocoa, mushroom, PAC, malt dextrin, collagen, juice, yeast, Coffee, Creamer, coconut, milk, gelatin, gum and acacia etc.



Lab Spray Dryer Price Working Principle

After filtering and heating, the hot fresh air enter into the air distributor at the top of drying chamber, distributed in spiral way uniformly from up to down. At the same time, the feeding liquid is pumped to the top atomizer, then be sprayed to extremely fine mist liquid drop. Through the short time of direct contact with hot air, the moisture evaporated at once, the solid remains to be powder. The dry powder will be discharged continuously from the bottom of drying tower and cyclone collector, the exhaust air will be discharged after cleaning.








LPG-5 Lab Spray Dryer Price Technical Data

Evaporation

3~5Kg/h

Dia/Height

1.0M/2.2M

Operation temperature

Inlet 180℃

Outlet 90℃

Atomizer

Dia 50mm

Compressed air driving

Power

Drive:0.75KW

Water consumption

0.1m3/h

Heater:12KW





Type

Open circle

Feeder

peristaltic pump

Air contact

Co-current

Heater

Electric heater

Collection

Cyclone

Atomizer

Centrifugal atomizer

Overall size

1.68x1.5x2.1

Weight

About 500Kg

Packing

Plywood box

Power

3Ph, 220-415V, 50/60Hz



Parameters of Lab Dryer Price

No.

Item

Model

Qty

Material

Notes

Feeding system

1

peristaltic pump

BT-100

1set

Sanitary

0.3Kw

2

Feeding pipe



1set

SUS304



Circulation system

1

Suction blower

9-19

1set

SUS304

0.75KW

2

Air valve



1set

SUS304



3

Hot air pipe



1set

SUS304



4

Air out pipe



1set

SUS304



5

Pipe fittings



1set

SUS304



Air system

1

Air filter



1set

SUS304

Initial and middle

2

Air heater

12Kw

1set

SUS304



3

Pipe fitting



1set

SUS304



4

Hot air pipe



1set

SUS304

Insulation

Main machine

1

Drying chamber

D1000H2200

1set

SUS304



2

Air distributor



1set

SUS304



3

Air cover



1set

SUS304



4

Atomizer

LPG5/Dia 50mm

1set

SUS304

Air driven

5

Light

100W

1set





6

Manhole



1set

SUS304



7

Insulation





Glass fiber



8

Hammer

SK40

2sets

Aluminum



Powder collection system

1

Cyclone

XF170

1set

SUS304



2

Discharge valve



1set

SUS304



3

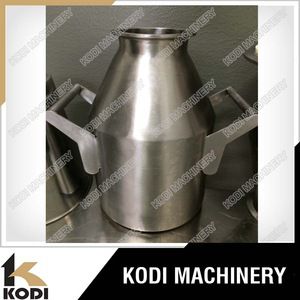

Product jar



1set

SUS304



4

Air pipe

Quick opening

1set

SUS304



Control system

1

Control box



1set

SUS304



2

PLC

SIEMENS

1set





3

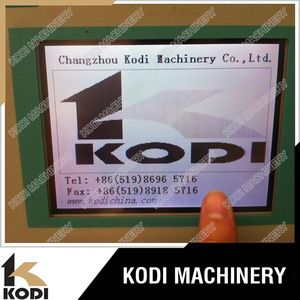

Touch screen

SIEMENS

1set





4

Contactor

SIEMENS

1set

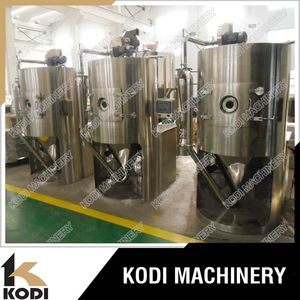

Successful Experience Overseas by KODI Lab Spray Dryer Price

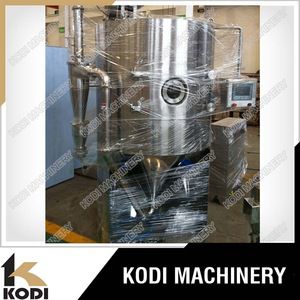

Packaging & Shipping



Company Information

  Why Choose KODI

  • International high quality certification product chain

  • Manufacturer, more reasonable price

  • Solid technical support and after-sales service

  • Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)

  • Exports to more than 20 countries and regions, good customers feedback

  • One-stop service, customized exclusive project feasibility report

Changzhou KODI Machinery Co., Ltd. located in the birthplace of China drying equipment----Zhenglu Industrial Park, Changzhou City, Jiangsu Province which is 150km away from Shanghai city, with a comfortable environment and convenient transportation access.



KODI company is a professional manufacture of drying machine, which include Seaweed processing machine, Seaweed drying machine (Cottonii to carrageenan, Agar agar ), Spray dryer price, Food ingredients spray dryer price, Flavor spray dryer price (Cocoa, Maltdextrin,Gum Acacia), Lab Spray dryer price / lab dryer price, Gelatin processing machinery, Gelatin drying machine (Hide and bone),Gelatin production line. we also deal in high-quality fermentation tank, Bright tank , Extraction tank, concentration tank , evaporator and etc..



We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products conform to international standards, such as CE, SGS.



KODI company also has a lot of top talent which have more than 15years of work experience, include research, design, manufacture and after sale service. Our products sell to all of the world (such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Chile, Peru, Argentina, Russia, Ukraine, South Africa, Cameroon, Sudan, Syria) and also have the good cooperation with the foreign client and vendor.



We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build a long and successful business relationship with us. Welcome!












Our Services

Pre-service:
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;

Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer’s requirements.



After-sale service
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;

6.Provide technical support;
7.Establish long-term and friendly relationship.



Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.




FAQ

Special Notice:

          In order to quota you the right lab spray dryer price or lab dryer price, we would like to get the following information include in your inquiry:

  • -What is the raw material?  Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.

  • -What is the capacity per hour you need (kg/h)?

  • -What is the initial moisture and final moisture of finished products you require to get?

  • -What about the maximum heat temperature of raw material?

  • -What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?

  • -Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?

  • -Provide us your country’s electricity information, such as phases, voltage, HZ?

  • -How about dust collect requirements?

  • -Other special requirements?

Frequently Asked Questions

             Q: Can I visit your factory?
             A: Yes. Many domestic and international customers visit our factory every year. Our company is near Shanghai.It only takes you about 1 hour to get Changzhou.Or we can visit you in Shanghai.



             Q: What’s the quality of your products?
             A:Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.



             Q: What to do if the machine has a problem?
             A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.



             Q: How long is the warranty of your equipment?
             A: Our warranty period is one year generally.



             Q: What is your payment term?
             A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement.



             Q: Does your price include freight?
             A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF price.
