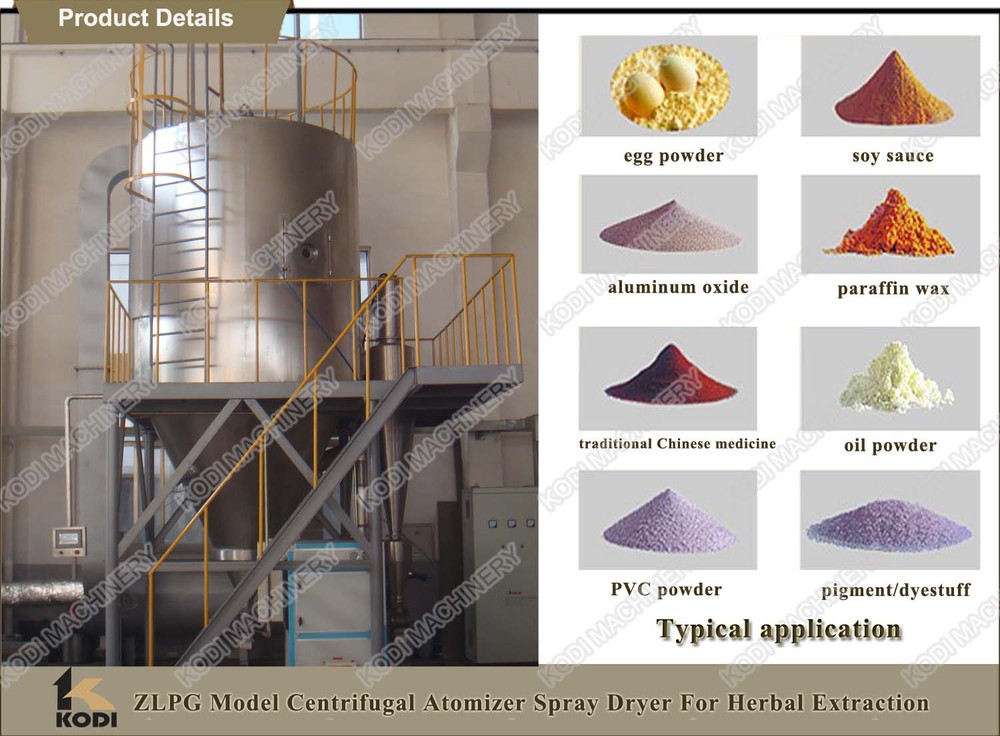

ZLPG Model Centrifugal Atomizer Type Herbal Extraction Spray Dryer
1, ZLPG model centrifugal atomizer herbal extraction spray dryer
2, Liquid or slurry drying processor
3, Easy operation and control
4, Stainless steel
Description of Herbal Extraction Spray Dryer
Chinese herbal medicine extract is refined from root, stem and leaves of plants, and contains high sugar especially from alcoholization process, which is easy melted at high temperature. Normal centrifugal spraying cannot meet its drying requirements. For that reason, our company organized a group of technicians to develop such a dryer especially used for Chinese herbal medicine extract after repeated calculations and countless tests on the basis of our experience to make spraying dryer and collect advantages of same kind of dryers from both domestic and abroad.
Application of KODI Herbal Extraction Spray Dryer
1. Liquid, paste, soupy, material, like: salty essence, broth essence, soy sauce powder, amino acid, vinegar powder.
2. Food additives, fish protein, egg powders, mushroom powder, maltodextrin, etc.
Herbal Extraction Spray Dryer Features
- This unit uses higher linear speed centrifugal atomizer, link speed achieves 16000rpm, it is suitable for drying and granulating high solid content liquid state materials.
- Uses eliminated dehumidification and cooling technology, it is suitable for viscosity, oiliness, heat sensitivity, moisture property material drying and granulating.
- Uses centralized purification collection, finished product can be collected in clean room, which achieves high standard of hygienic requests, and avoid the pollution of ambient air.
- This unit uses three levels independent discharging system and multiple stages washing spray technology, enhance the recovery of products.
- Uses whirlwind cutting in and inlet air broom the wall to prevent materials sticking on the inside wall.
- This unit is match with infrared temperature measurement, intelligent automatic control technology. Through real temperature feedback, automatic adjusts liquid material feed capacity, guarantees the finished products’ quality. By the function of program design, encrypt, correct, etc. And PLC operation system, effectively enhance the accuracy of process parameter execution, thus guarantee the products quality and improve the modern product management level.
- In order to facilitate the operation of this unit, according to actual situation, the heating sources can be electricity, steam, fuel, gas, etc.
- Jam prevent technology is used.

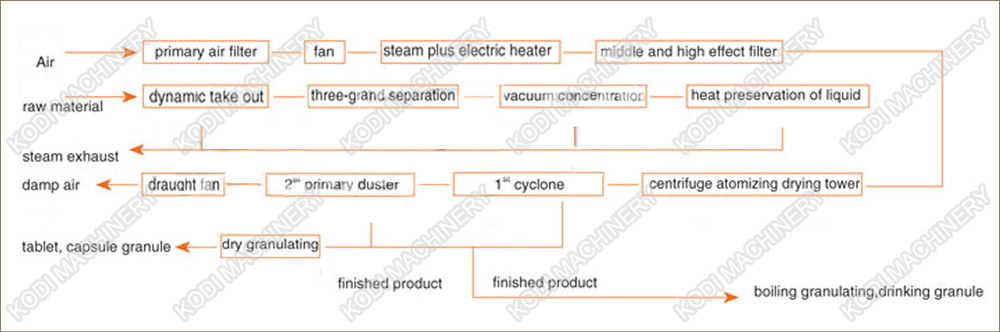

Working principle
Technical parameters
Model | ZLPG-5 | ZLPG-10 | ZLPG-25 | ZLPG-50 | ZLPG-80 | ZLPG-100 | ZLPG-150 | ZLPG- 200 | ZLPG- 300 | |
Water evaporation(kg/h) | 5 | 10 | 25 | 50 | 80 | 100 | 150 | 200 | 300 | |
Liquid input amount(kg/h) | 6-7 | 12-14 | 25-34 | 50-68 | 80-108 | 100-135 | 150-203 | 200-270 | 300-406 | |
Capacity (kg/h) | 1-2 | 2-4 | 4.8-7.2 | 9.2-14 | 14.8-22.4 | 18.4-28 | 28-42 | 36.8-56.4 | 55-85 | |
Solid content of liquid material(%) | 18-25% | |||||||||
Water content of final product(%) | 3-5% | |||||||||
Power(kw) | 36 | 45 | 63 | 99 | 132 | 153 | 204 | 246 | 330 | |
Heat source | Steam + electricity | |||||||||
Collecting way of product and its efficiency | Two grade cyclone separator or one-grade cyclone separator and one grade film duster≥95% | |||||||||
Auto-control instrument | Indicator of hot air temperature and outlet air temperature, temperature auto regulating controller | |||||||||
Inlet air temperature(℃) | 150-200 | |||||||||
Outlet air temperature(℃) | 80-100 | |||||||||
Overall dimension (mm) | L | 5000 | 5500 | 7000 | 8000 | 9800 | 11000 | 12200 | 14100 | 15000 |
W | 3000 | 3500 | 4000 | 5000 | 5700 | 6200 | 7000 | 7800 | 9000 | |
H | 4500 | 4600 | 5200 | 6500 | 7600 | 8100 | 9000 | 9850 | 11100 |

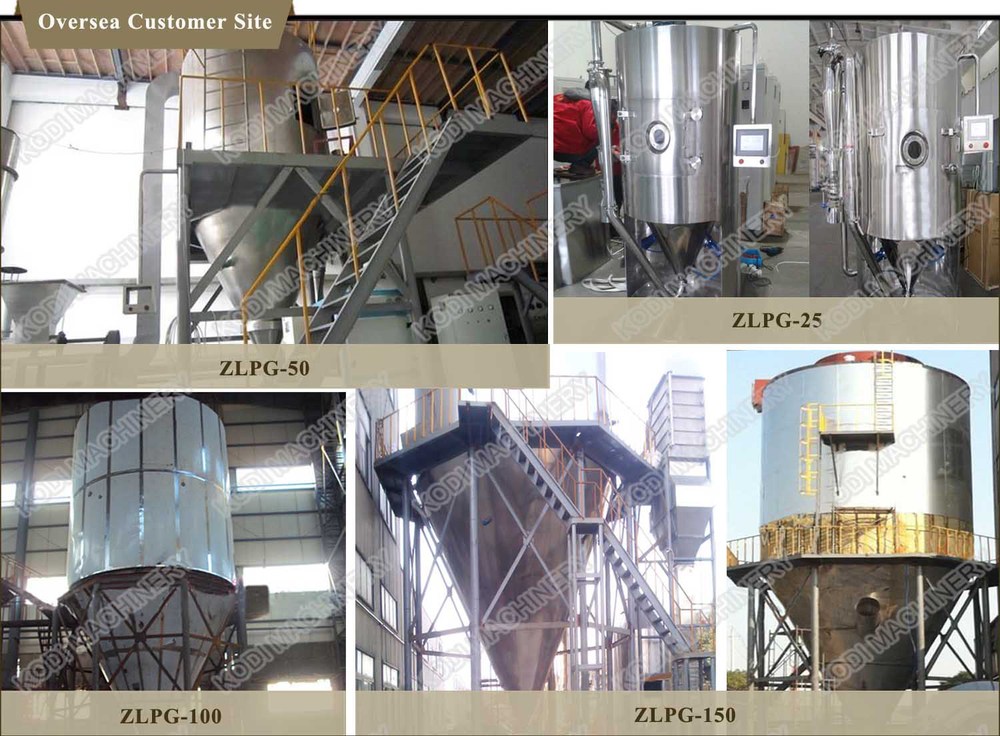

Successful Experience Overseas of KODI ZLPG Spray Dryer
Why Choose KODI
International high quality certification product chain
Manufacturer, more reasonable price
Solid technical support and after-sales service
Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)
Exports to more than 20 countries and regions, good customers feedback
One-stop service, customized exclusive project feasibility report
Changzhou KODI Machinery Co., Ltd. located in the birthplace of China drying equipment----Zhenglu Industrial Park, Changzhou City, Jiangsu Province which is 150km away from Shanghai city, with a comfortable environment and convenient transportation access.
KODI company is a professional manufacture of drying machine, which include Seaweed processing machine, Seaweed drying machine (Cottonii to carrageenan, Agar agar ), Spray dryer, Food ingredients spray dryer, Flavor spray dryer (Cocoa, Maltdextrin,Gum Acacia), Lab Spray dryer, Herbal Extraction Spray Dryer, Spray drying equipment,Gelatin processing machinery, Gelatin drying machine (Hide and bone),Gelatin production line. we also deal in high-quality fermentation tank, Bright tank , Extraction tank, concentration tank , evaporator and etc..
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products conform to international standards, such as CE, SGS.
KODI company also has a lot of top talent which have more than 15years of work experience, include research, design, manufacture and after sale service. Our products sell to all of the world (such as China, Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Chile, Peru, Argentina, Russia, Ukraine, South Africa, Cameroon, Sudan, Syria) and also have the good cooperation with the foreign client and vendor.
We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build a long and successful business relationship with us. Welcome!
Pre-sale service
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;
Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer’s requirements.
After-sale service
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.
Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.
Special Notice:
In order to quota you the right herbal extraction spray dryer with best price, we would like to get the following information include in your inquiry:
-What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
-What is the capacity per hour you need (kg/h)?
-What is the initial moisture and final moisture of finished products you require to get?
-What about the maximum heat temperature of raw material?
-What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
-Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
-Provide us your country’s electricity information, such as phases, voltage, HZ?
-How about dust collect requirements?
-Other special requirements?
Frequently Asked Questions
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year. Our company is near Shanghai.It only takes you about 1 hour to get Changzhou.Or we can visit you in Shanghai.
Q: What’s the quality of your products?
A:Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.
Q: What to do if the machine has a problem?
A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
Q: How long is the warranty of your equipment?
A: Our warranty period is one year generally.
Q: What is your payment term?
A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement.
Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF price.
