industrial instant coffee spray dryer
Description

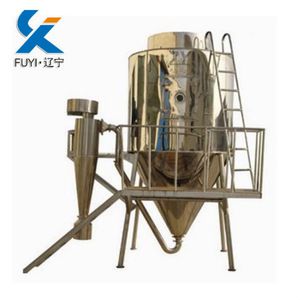

LPG Series High Speed Instant Coffee Spray Dryer is the technology most widely used in the liquid technology shaping and in the drying industry. The drying technology is most suitable for producing solid powder or particle products from liquid materials, such as solution , emulsion, suspension and pumpable paste states, For this reason, when the particle size and distribution of the final products, residual water contents, mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technologies.
Working Process / Instant coffee dryer
After been filtered and heated the Air enters into the air distributor on the top of the dryer .The Hot Air enters into the drying room in the spiral form and uniformly. Passing through the high-speed centrifugal Sprayer/Atomizer on the top of the tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads .Through the very short time of contacting the heat air, the materials can be dried into the Final products .The final products will be Discharged continuously from the bottom of the drying tower and from the cyclones. The waste gas will be discharged from blower.
Spray Dryer Gun (Atomizer) is the most important accessory in spray drying machine, it is used for changing LIQUID status into SPRAY status at a high speed rotation motions, usually can reach 18000~25000 rpm, Our company has adopt Chinese Specilalzied Supplier, can ensure customers for 2 years warranty period.
Model | Max water evaporation(kg/h) | Inlet Air tem(°C) | Outlet air tem(°C) | Transmission Model for atomizer | Rotate speed(rpm) | Spray disk diameter (mm) | Dimension (L ×W× H) (m) |
LPG5 | 5 |
140-350 (auto control) |
80-90 | Compress Air | 25000 | 50 | 1.8×0.9×2.2 |
LPG25 | 25 |
|
|
Mechanical | 18000 | 120 | 3×2.7×4.3 |
LPG50 | 50 |
|
|
| 18000 | 120 | 3.3×3.2×5.1 |
LPG100 | 100 |
|
|
| 18000 | 120 | 4.6×4.2×7 |
LPG150 | 150 |
|
|
| 15000 | 150 | 5.5×4.5×7 |
LPG200- 2000 | 200-2000 |
|
|
| 8000-15000 | 180-340 | According to condition |
Note: There is relationship between the water evaporation, material characteristics and inlet air temperature |
The technical and after-sale services are listed as follows:
1. Provide free technical training, guidance and information of accessories.
2. Our technical staff could instruct our customers on the installation of connector and accessories on site, and deal with technical and quality issues.
3. We guarantee more than 10 years’ service life of our products with 1 years’ warranty and life maintenance.
4. 24-hour hot line: 86-18104024665 . Once receive the customer complaints, we will response within 24 hours.
5. Free maintenance and replacement will be provided if defects result from quality failure of our product.
6. Our company will provide technical services by phone, fax, e-mail, etc., please refer to the contact details.
7. Our company will implement the contract strictly; deliver the products to location specified by our customers for free in accordance with the mode of transportation.
8. Our company will provide perfect after-sale services and technical support.
Contact person: Molly Xu
Hot line: 86-18104024665
Whatsapp: +8618104024665
Liaoning Fuyi Machinery Co., Ltd. Was established in June 2011 formerly known as Liaoyang Sunny Pharmaceutical Machinery Co., Ltd.The president of Fuyi is the first developer and designed Chinese First Tubular Separator who won many National Reward. our company is certified in accordance with ISO9001:2000.
We promise to provide the most professional technology and advanced quality product for global customers.
We made the standard, we beyond it.
For many years with experience in pharmaceutical and chemicel machinery and equipment in China . We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipment in many varieties.Our main products are fermentors, centrifuges, granulators, mixers, dryers, pulverizers, tablet presses, soft and hard blister packing machines, capsule counting machines, if you need other machine , tell us your requirements , we also can do best to help you good supplier . If you can't visit China , we have team can help you to examine goods.
In FUYI, you can get your desired goods with the best prices and good quality. We welcome your Inquiries from at home and abroad.
