| Material | stainless steel |
| Certification | ISO9001:2008, SGS, CE, ROHS, IAF |
| Standard | GB, ISO |
| Grade | SUS304, SUS316 |

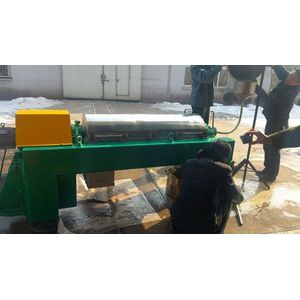

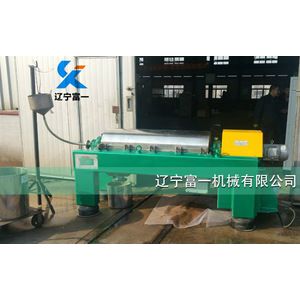

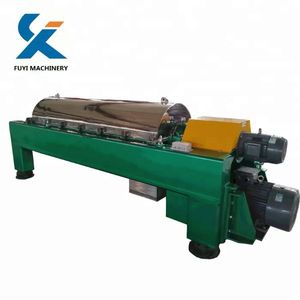

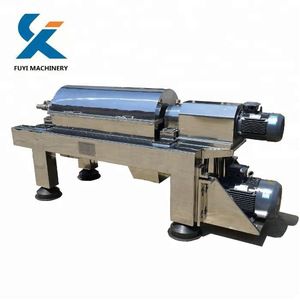

FUYI Decanter centrifuge
Liaoning Fuyi Machinery is one of the most famous centrifuge manufacturers in China with 30 years mature experience and techniques. "China Tubular Separator National Standard" is drafted by our company. Nowadays our customers are from global market. We promise supply customers the best quality and service in China.

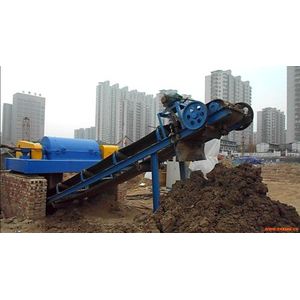

Wastewater Treatment Decanter Centrifuge Description:
The main equipment of sludge dewatering complete system is decanter. Decanter is the machine of separating suspending liquid on centrifugal sedimentation. With the centrifuge, it is possible to separate the particle from suspending liquid, whose equivalent diameter is bigger than 0.003mm,solid-liquid weight ratio isles than 10%, volume ratio is less than 70%, difference in specific gravity is bigger than 0.059/cm3.
•All parts coming into contact with the product are made of stainless steel.
•3-phase AC motor for controlled torque starting via frequency converter
•Approximately 80 to 90 % of the oil is recovered.
•Low personnel costs due to continuous and automatic operation.
•Highest g-force for higher solids output
•Adjustable bowl speed via VFD
•Automatic adjustment of differential speed via VFD
•Two motor drive
•Belts for both primary motor and secondary motor
Advantage and Benefits to Choice Decanter Centrifuge:
*.Low Cake Moisture
*.Compact design and requires low space
*.Low operation cost
*.High dewatering and filtration capacity
*.Low required space
*.Smooth operation
Application of Decanter Centrifuge
LW series decanter centrifuge is applicable to the separating of the suspension containing solid-phase granules with the diameter greater than 0.005mm and with the concentration being 2-40%.
Decanter centrifuge has wide applications in such trades as chemical, light industry, pharmacy, food, environmental protection, etc. for example: adipic acid, alum, aluminum hydroxide, ammonium hydrogen carbonate, ammonium chloride, ammonium nitrate, ammonia sulfate, anthracene, antibiotics, barium chloride, barium carbonate, barium sulfate, benzene, benzene carbonic acid, blood products, blue vitriol, borax, boric acid, pot ale, calcium carbonate, calcium citrate, calcium hydroxide, calcium nitrate, calcium oxalate, casein, fiber, chrome pillow, clay, methylcellulose, coal flotation waste, corundum, velveteen, corn embryo, starch, coconut milk, food oil, fish processing, salt cake, mirabilite, hops, pesticide, diatomite, herbicide, tartaric acid, sodium sulfate, sodium phosphate, sodium nitrate, charcoal black, etc.
| Model | LW300×1350 | LW355×1600 | LW450×1800 | LW530×2280 | LW580×2500 | LW650×2400 |
| Bowl Dia.mm | 300 | 355 | 450 | 530 | 580 | 650 |
| Capacity | 1000 | 3000 | 8000 | 10000 | 20000 | 30000 |
| Bowl Length Dia.mm | 1350 | 1600 | 1800 | 2280 | 2500 | 2400 |
| L&D Ratio | 01:04.5 | 01:04.5 | 01:04 | 1:04 | 1:4.3 | 1:3.7 |
| Bowl Speed r/min | 4200 | 3800 | 3450 | 2700 | 2780 | 2500 |
| Separation Factor | 3000G | 2868G | 3000G | 2150G | 2500G | 2270G |
| Screw Differential r/min | 5-30 Stepless Ajustable | 2-20 Stepless Adjustable | 2-25 Stepless Adjustable | 3-20 Stepless Adjustable | 2-45 Stepless Adjustable | 2-55 Stepless Adjustable |
| Motor Kw | Main Motor11 Vice4 | Main Motor15 Vice7.5 | Main Motor30 Vice11 | Main Motor45 Vice15 | Main Motor55 Vice18.5 | Main Motor90 Vice30 |
| Noise db(A) | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 |
•24 months long guarantee period from machine arriving date.
•Abundant spare parts in stock are available to provide.
•Our technicians could be dispatched for overseas service.
•24 hours technical consultation.
•Routine tracing till the machine work properly will be done timely.
•We will remind you to do the normal maintenance.
•Your suggestions or any comments & reflection would be treated in priority.
•Your workers can get training easily by net video.
Hot line :
Tel :+8618104024665
FAX:+86-419-3223016
Company Info
Liaoning Fuyi Machinery Co.,Ltd,was established in June 2011 formerly known as Liaoyang Sunny Pharmeaceutical Co.,Ltd.Fuyi's president was the first developer anddesigned Chinese First Tubular Separator who won many National Reward. Fuyi has more than dozens of patents.Fuyi Separator provide solution to all technological problems of liquid and solid with more than 30years experience in centrifugal separation market. The company is certified in accordance with ISO9001:2000.
1. How can we visit your factory?
If you come from abroad, air to Shenyang taoxian airport; if you come from domestic city, train directly to Liaoyang, we will pick you up both in the airport and railway station.
2. Can we visit your end user or contact them?
Yes, users are in domestic and abroad, we can provide you the name list, you can go there or contact for more info.
3. How do you protect the quality?
Our factory is a state owned enterprise with more than 30 years experience, strict operation policy is performed, advanced processing machines guarantee the precision of all components, workers with operation license, parts get multiprocessing, transmission & electrical parts. Series of test and inspection are done in the whole producing stage.
4. Will you dispatch technicians for installation and commissioning?
Yes, we can, we do lots of service, please refer to our after sales part.
5. What is your advantages compared with your competitors?
Quality and experience. We are the top centrifuge supplier in China.
6. Is your price competitive?
Our price is not the lowest in China as for high quality, but we promise, for the same quality and collocation, our price is the most favourite, for the same price, our quality is definately superior to other brand.
7. Do you have ODM serive?
Yes, we do, as long as you provide us your brand.
8. Do you supply second hand centrifuge?
No, we only provide brand new machine.
9. How can we easily find out the most fit centrifuges?
We have experienced engineer team to help you make the model selection, as long as you provide us the detailed processing material characteristics.
10. What payment mode you accept?
TT and LC at sight.
11. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
