ZPG series Tranditional chinese medicine medicinal extract Spray Dryer

suitable for the low point,high candy chinese medicine.

Technical Feature

  • New
  • Spray Drying Equipment
  • China (Mainland)
  • yuzhou
  • ZPG
  • customized
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$20~220

PRIMARY PARAMETERS

Condition
New
Type
Spray Drying Equipment
Place of Origin
China (Mainland)
Brand Name
yuzhou
Model Number
ZPG
Voltage
customized
Power(W)
variable
Dimension(L*W*H)
variable
Weight
variable
Certification
ISO14001 ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Name
ZPG series Tranditional chinese medicine medicinal extract Spray Dryer
Application
Food chemical industry,pharmaceutical
Heating source
Electricity steam oil
Material
SS304/SS316L
Capacity
customized
Usage
Chinese Medical Extract
temperature
as u requirement
precision
high precision
guarantee period
1year

DETAIL DESCRIPTION

ZPG series tranditional chinese medicine medincal extract spray dryer

1.suitable for the low point,high candy chinese medicine.

2.glue wall,supplies coking,difficult to inhale,fit GMP requirement.

Description

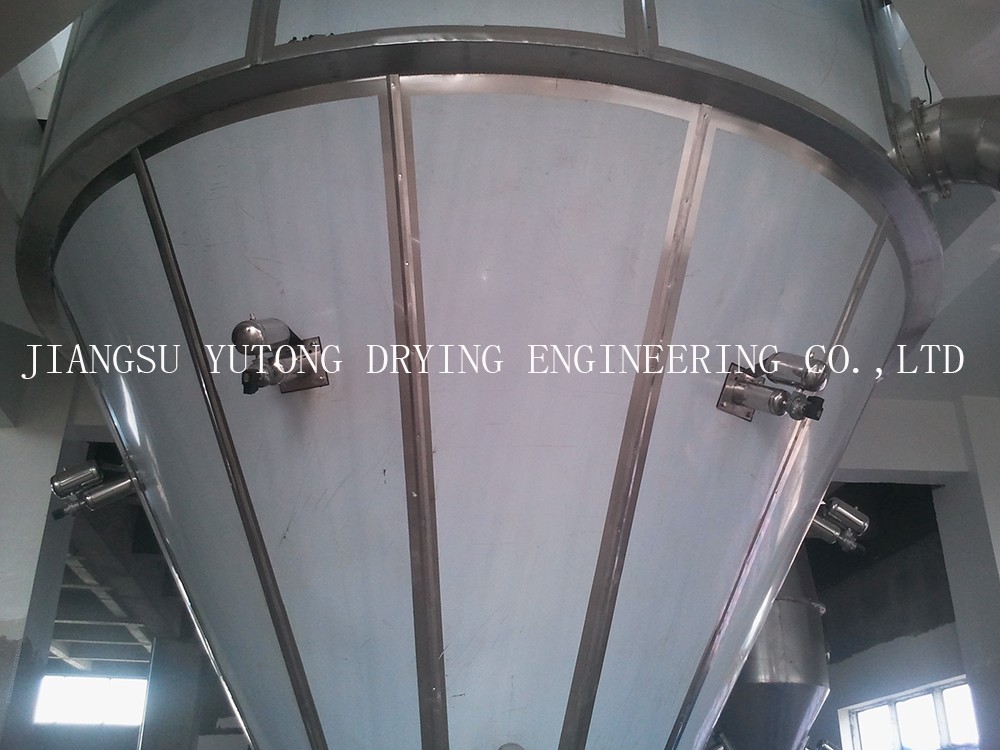

The machine adopts full sealing for it . All parts are made of stainless steel. It is equipped with three grades of filter. The filtered air is one hundred thousand grades. The cooling device of wall is installed at the cylinder body. It makes the wall temperature less than 80℃.Air sweeping device is installed inside the drying tower. The product will not be burnt or deteriorated even stays on the way. The collection rate of powder is raised greatly. Moreover will not cause medicine mixed or wall stick.

Principle

Basic Principle: high-speed centrifuge atomizing for the extract of traditional Chinese medicine is an application of centrifuge atomizing technique. It is an high-speed atomizing dryer. The following problems are solved.

 1. Raw material is stick to the wall and the rate of powder collecting is low.

 2. Because the staying time of raw material at wall is long, the phenomenon of burnt and degeneration can be produced.

 3. It is difficult to clean and can not meet the requirement of GMP



4.Low in output: Model LPG-150 atomizing centrifuge dryer can process 50-60kg/h of raw material liquid. In view of this, according to the properties and process requirements of the extract of traditional Chinese medicine, our factory researched and designed the special dryer for the extract of traditional Chinese medicine and won items of china patent.It solves the historical difficult problems in drying the extract of traditional Chinese medicine.The color of dried raw material is good.The dried raw material does not degenerate.It raises the economic benefit greatly.

Features

Compared to ordinary LPG high-speed atomizing dryer,it has the following features:

(1).Adopted three-grade air filter,the inlet air is one hundred thousand grade.

 (2).Adopted wall cooling device,the temperature of inner wall will be on more than 80℃.Even if raw material is stayed on the wall,it will not be burnt

(3).Its whole volume is 3.5 times of standard LPG high-speed atomizing dryer.

(4).Adopted quick washing device,it is can meet the requirements of production for varieties if products.

(5).Adopted wet-dedusting,there is no powder dust out.It is in conformity with the requirements of GMP.

(6).Adopted air sweeping device ,the clean effect is satisified.

(7).Equipped with two sets of atomizer and adopted frequency inverter control.

(8).Adopted PLC control and display,and adapted frequency control.

(9).Equipped with washing device on request.



(10).Adopted the seal transport by dry air on request.

Technical Parameter of Centrifugal Spray Dryer

Item/ModelZPG
 52550100150200-2000
Inlet Temperature (ºC) ≤ 350
Outlet Temperature (ºC) 80 to 90
Maximum Moisture Evaporation (kg/h)*52550100150200-2000
Drive type of Centrifugal Spray NozzleCompressed air driveMechanical drive
Rotating Speed250002200021500180001800015000
Diameter of Spray Disk (mm)50102108108150180-340
Heat SourceElectricityElectricityElectricity+ steam, fuel oil, gasElectricity+ steamElectricity+ steam, fuel oil, gasDepending on users
Maximum Power of Electric Heating (kw)831.5608199
Overall Dimensions (L × W × H)1.8 × 0.93 × 2.23 × 2.7 × 4.263.7 × 3.2 × 5.14.6 × 4.2 × 65.5 × 4.5 × 7According to the actual situation
Dry Powder Recovery (%)≥ 95≥ 95≥ 95≥ 95≥ 95≥ 95

Attention to order
1.Liquid name and property: solid contents (or water contents), viscosity, surface tension and PH value.

2. Dry powder density residual water contents allowed, particle size, and maximum temperature allowed.

3. Output: shift time daily.

4. Energy that can be supplied: steam pressure, electricity properly, fuel of coal, oil and natural gas.

5. Control requirement: whether or not the inlet and outlet temperatures should be controlled. Powder collection requirement: whether it's necessary to use cloth bag filter and the requirement of the environment of the exhausted gas.

6. Other special requirements.

Company introcuction

Jiangsu Yutong Drying Engineering Company is a High-New Technology Enterprise in China. With over 16 years of experience, we are able to provide a wide variety of products, including drying machine, grinding machine, granulator, mixing machine, and more. Features like compact structure, high efficiency, and low energy consumption have resulted in our products being increasingly used in the pharmaceutical, chemical, food, light industry, dyes, mineral products, electronics, ceramics, plastics, agricultural products, pesticides, feed, fertilizers, and other industries.

At Yutong, our cooperative relationships with many research institutes and universities enable us to constantly improve product performance and develop new drying machines, mixers and feed machines. As a result of our focus on innovation, we have received many national patents.

Since our foundation, we at Yutong have been committed to providing high quality products to our customers.

In order to ensure our quality requirements are maintained, we implement the ISO9001:2008 quality management system, purchase our raw materials from reliable suppliers, continue to introduce advanced equipment, and employ highly skilled staff. The quality of our equipment is repeatedly checked during each stage of production. In addition, all machines must undergo a trial run in the workshop, and only those qualified products are allowed to leave our factory. Due to their consistent quality, Yutong drying machines, mixing machines and grinding machines have been awarded many honors, including Recommendation for High-quality Products by IQAC and Recommended Products for International Trade by the U.S. Asia Economic Trade Cooperation Committee.

At Yutong, many cost saving measures are also implemented to reduce our production costs. For example, we have established a local information network and carried out an efficient information management system (in terms of warehousing, production planning, and order tracking), thus reducing our operating costs. Additionally, we have long-standing relationships with local raw material suppliers, so we are able to acquire our high quality raw materials at reduced cost. Furthermore, our location in Changzhou City, Jiangsu Province provides us with easy access to convenient transportation, enabling us to transport our products economically. As a result, we can provide our quality spray dryer, double cone blender and rough grinding machine at affordable prices.

In addition to high quality and reasonably priced products, we at Yutong provide customers with considerate service. Our products come with a one-year warranty, during which we can provide staff training, on-site installation, and debugging services upon request. We also provide wearing parts at our cost prices. Hence, our drying machine, mixing machine, and sifting machine are very popular in USA, Canada, Italy,United Kingdom, German, Cyprus, Turkey, Korea, Japan, Vietnam, Thailand, Argentina, Chile, Brazil and so on.

Cutting raw material

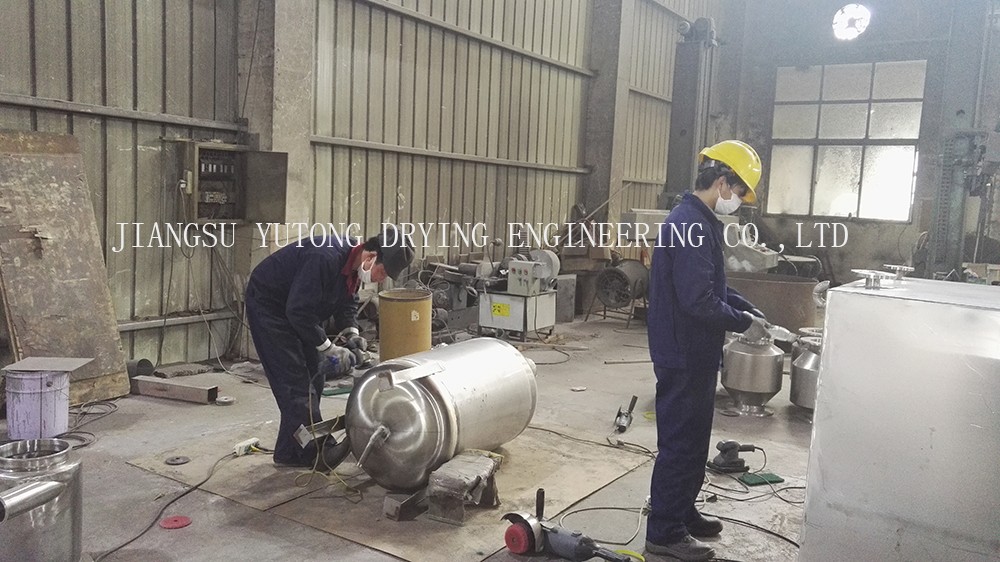

Polishing products

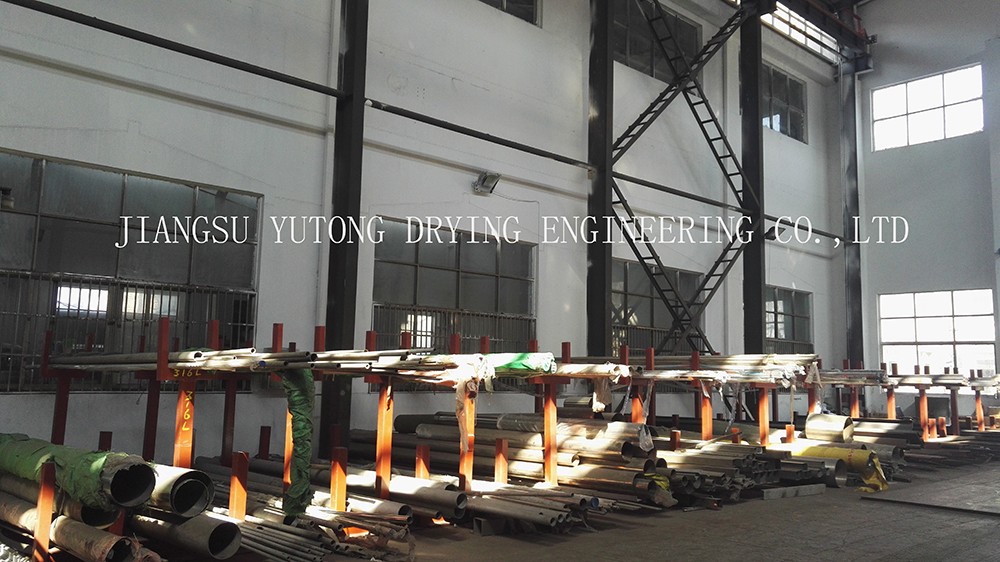

Raw material room
