Multiple Effect Evaporator for Corn steep liquor

The multiple-effect configuration combines two or more evaporator bodies to conserve steam, which is condensed in the first-effect heat exchanger only.

Technical Feature

  • New
  • Food Processing, Food/Chemical/pharmaceutical
  • LP
  • Thermal
  • Shanghai, China (Mainland)
  • SENON
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$150~6

PRIMARY PARAMETERS

Condition
New
Application
Food Processing, Food/Chemical/pharmaceutical
Power Source
LP
Process
Thermal
Place of Origin
Shanghai, China (Mainland)
Brand Name
SENON
Model Number
SN600
Voltage
380/415/450/600V, customized, 380/415/450/600V, customized
Power(W)
600kw
Dimension(L*W*H)
6000mm x 9000mm x 18000mm
Weight
80 tons per set
Certification
CE ISO ASME
Warranty
12 Months
After-sales Service Provided
Engineers available to service machinery overseas
Product
Multiple Effect Evaporator
Effect
Single/double/triple/multiple
Material
SS304/SS316L/duplex steel/titaniumtim
Evaporation capacity
From 5t/h to 900t/h, customized
Supply fresh steam
Above 0.35MPa
Cooling Water
Pressure above 0.3Mpa
Compressed air
Pressure above 0.6MPa
Energy consumption
Advanced engineering will reduce operation fee for enders

DETAIL DESCRIPTION

Product Description

Specifications

Multiple Effect Evaporator
The multiple-effect configuration combines two or more evaporator bodies to conserve steam, which is condensed in the first-effect heat exchanger only. Water evaporated in the first-effect vapor body is condensed in the second-effect heat exchanger, which provides energy for evaporation in the second-effect vapor body (and so on for additional effects). Vapor from the last effect flows to a condenser.

The last-effect vapor body is maintained at a high vacuum with a steam-jet air ejector or mechanical vacuum pump. The driving force is the pressure drop from the first to the last effect.

The number of effects is limited by the total available temperature difference between the plant steam and the cooling water temperature. Process liquors with high boiling point elevations typically operate with fewer effects. SENON will help the clients to design most suitable effects to coordinate the first investment and the future operation fee.

Application
Industrial effluent concentration
Brine liquid concentration
Recovery of metal salts
Concentration of pharma and textile effluent
Pharma product concentration
Concentration of RO reject till saturation of salts in dissolve liquid
Secondary treatment
Dairy industry for milk evaporation
Fruit and tomato juice concentration


SENON is capable to design and supply many different types of equipment to achieve processing requirements. Our specialty is designing and installing innovative systems to convert liquid solutions into dry solids using evaporation and crystallization. Please reach us & let us know your requirements.
Looking forward to hear from you.

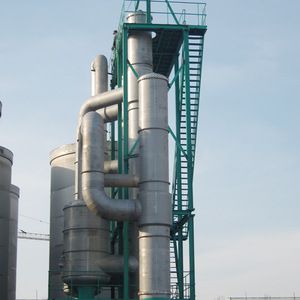

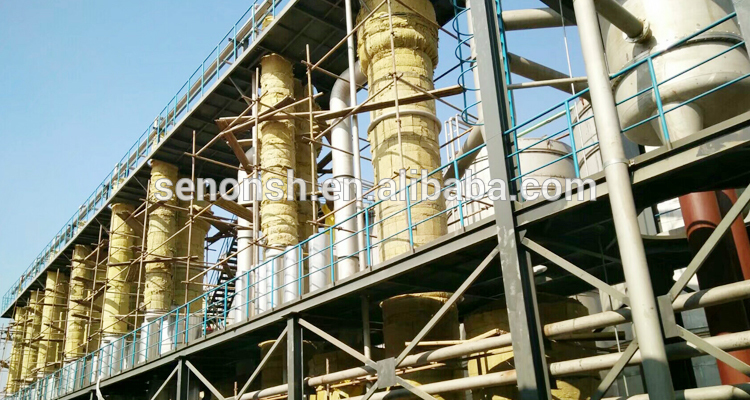

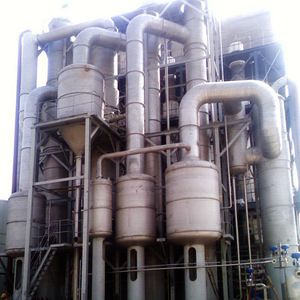

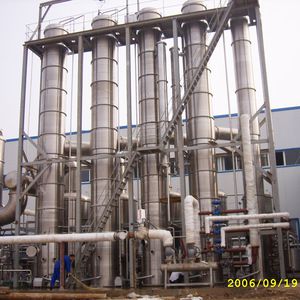

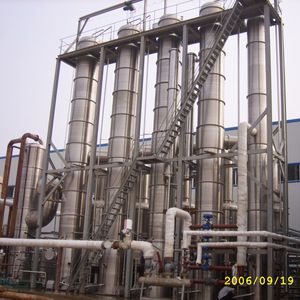

Detailed Images
Our Company

Shanghai SENON Co., Ltd. is one of global leaders in engineering, manufacturing, installing, debugging and training evaporation and crystallization equipment, used for fermentation industry, food industries, pulp and paper making industry, fiber industry, chemical industry, edible salt industry, lithium battery industry etc.

SENON has passed ISO9001:2008 quality management system certification, CE certification, ISO14001:2004 environmental management system certification, has gained A1, A2, ASME pressure vessel manufacturing qualification, A2 pressure vessel design qualification, mechanical and electrical equipment installation three-level qualification, as well as has the Independent import and export authority, more than twenty national patents. SENON is a high-tech enterprises in Shanghai. SENON brand is famous brand products of Shanghai.

Certificates
Parts of Clients
Packing & Delivery
delivery by trucks
Pre-packed in frame
Well arrived
