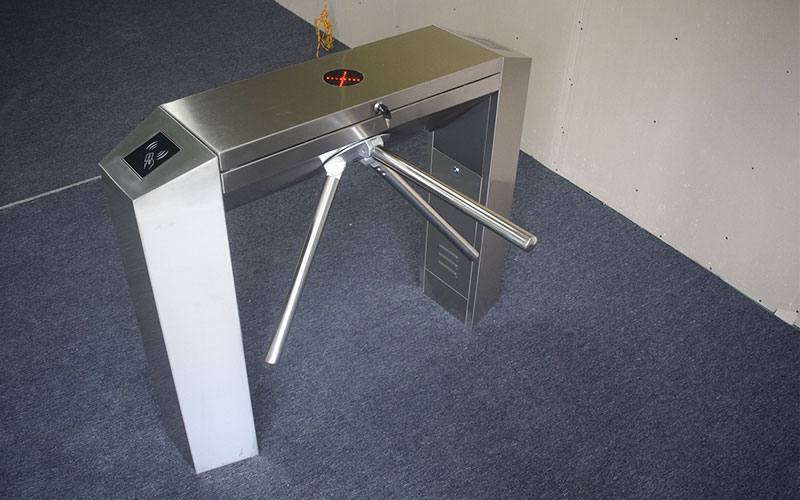

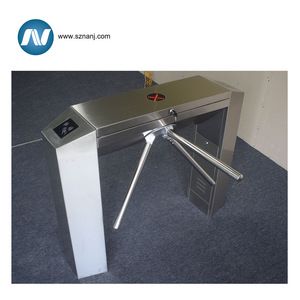

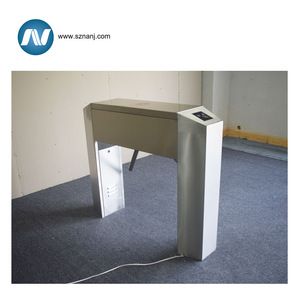

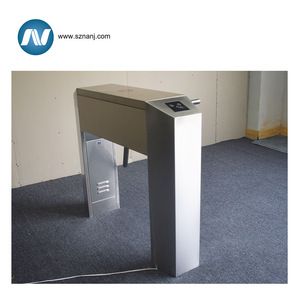

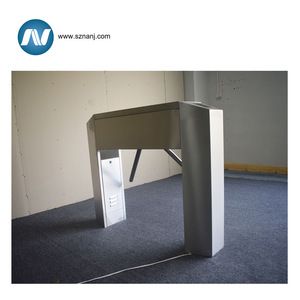

NJ T613 weatherproof box tripod turnstile, designed for outdoor use without shelter, is a modern solution for access control. It is fitted with automatic "Anti-panic" folding arms and LED indication. In case of power loss or by a signal from an Access control or emergency button the barrier arm automatically falls down leaving the passage free in emergency situations.

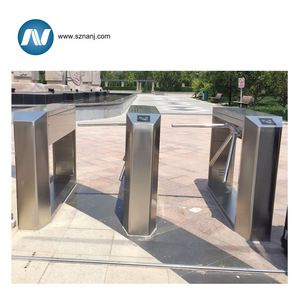

With its modern and elegant design NJ T613 can be used at the entrance points of industrial facilities, offices, business-centres, banks etc.
NJ T613 is made of stainless steel and offers a secure and modern-looking solution for various outdoor and indoor applications.
- Automatic "Anti-panic" barrier arms
- Outdoor use

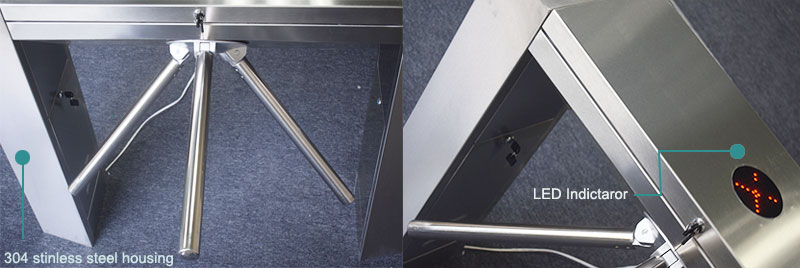

- The housing is made of stainless steel
- Dynamic LED passage indication
- Specially designed places for concealed mounting of proximity card readers
- Turnstiles folding arms can be released by alarm button
Power consumption | 12 V DC |
| Operating voltage | 72 W |
| Number of passage directions | 2 |
| Throughput rate (in the single passage mode) | 30 persons/min |
| Throughput rate (in the free passage mode) | 60 persons/min |
| Dimensions (length×width×height) | 1200*280*980mm |
| Passageway width | 550mm |
| Operating temperature range, under shelter | from -20 °C to +55 °C |
| "Anti-panic" barrier arms | automatic |
- Turnstile with built-in electronics
- Turnstile with “Anti-panic” barrier arms
- Remote control panel (optional)
Automatic "Anti-panic" barrier arms enable immediate clear of the passage for urgent evacuation of people in emergency case. Emergency unblocking of the turnstile is performed by input of the Fire Alarm signal to the turnstile or in emergency power failure. At that the barrier arm automatically falls down ensuring free passage.
When power supply is restored or Fire Alarm signal is removed, the arm shall be manually set into operating position.
NJ T613 tripod turnstile is made of stainless steel which provides not only elegant design, but also resistance to corrosion when used outdoors.
The turnstile housing has specially designed places for concealed mounting of proximity card readers. The reader operating zones are indicated on the lateral covers of the turnstile with special pictograms.
The turnstile can be operated from the access controller, remote control,etc (optional).
Special Fire Alarm input allows connecting the device that sends an emergency unblocking signal (for example, from the fire alarm).
