Fingerprint Time Attendance System Turnstile with Rfid Access Control Card

NJ T611B weatherproof box tripod turnstile, designed for outdoor use without shelter, is a modern solution for access control.

Technical Feature

  • Guangdong, China (Mainland)
  • NJ
  • NJ T611B
  • 304 stainless steel turnstile gate
  • 420*330*980 mm
  • 550 mm
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin
Guangdong, China (Mainland)
Brand Name
NJ
Model Number
NJ T611B
Casing Material
304 stainless steel turnstile gate
Dimension
420*330*980 mm
Passage Width
550 mm
Type
Semi-automatic turnstile
Driving Part
DC24 V solenoid
Work Voltage
AC 220 (110 ) Vu00b110% 50 HZu00b110%
Transit Speed
30 people / minute
Normal Work Life
3,000,000 times
Fire Safty Emergency
Yes
Can OEM
Yes

DETAIL DESCRIPTION



Access control system tripod turnstile fully automatic torniquete

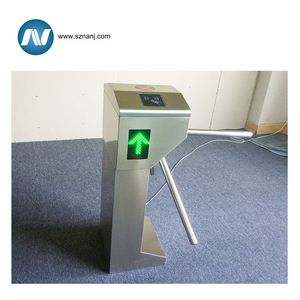

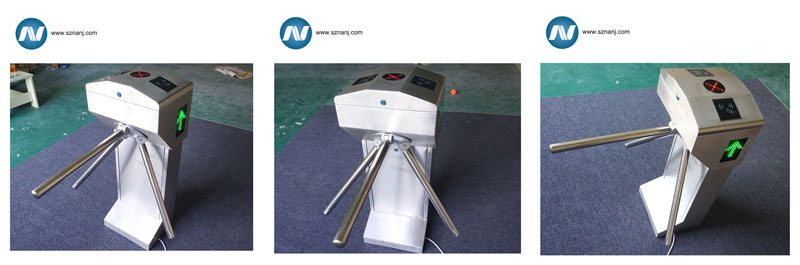

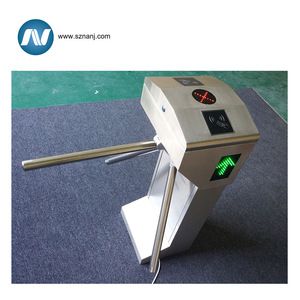

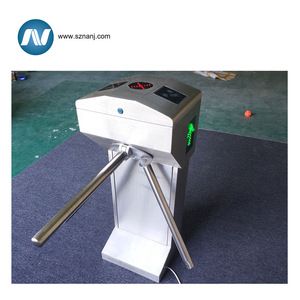

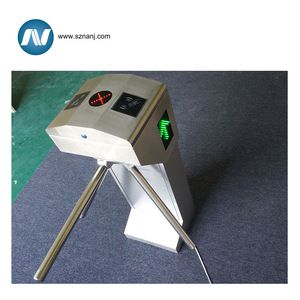

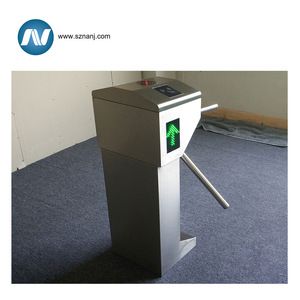

NJ T611B weatherproof box tripod turnstile, designed for outdoor use without shelter, is a modern solution for access control. It is fitted with automatic "Anti-panic" folding arms and LED indication. In case of power loss or by a signal from an Access control or emergency button the barrier arm automatically falls down leaving the passage free in emergency situations.
With its modern and elegant design NJ T611B can be used at the entrance points of industrial facilities, offices, business-centres, banks etc.
NJ T611B is made of stainless steel and offers a secure and modern-looking solution for various outdoor and indoor applications.



Product Description
  •  Automatic "Anti-panic" barrier arms
  • Outdoor use
  • The housing is made of stainless steel
  • Dynamic LED passage indication
  • Specially designed places for concealed mounting of proximity card readers
  • Turnstiles folding arms can be released by alarm button

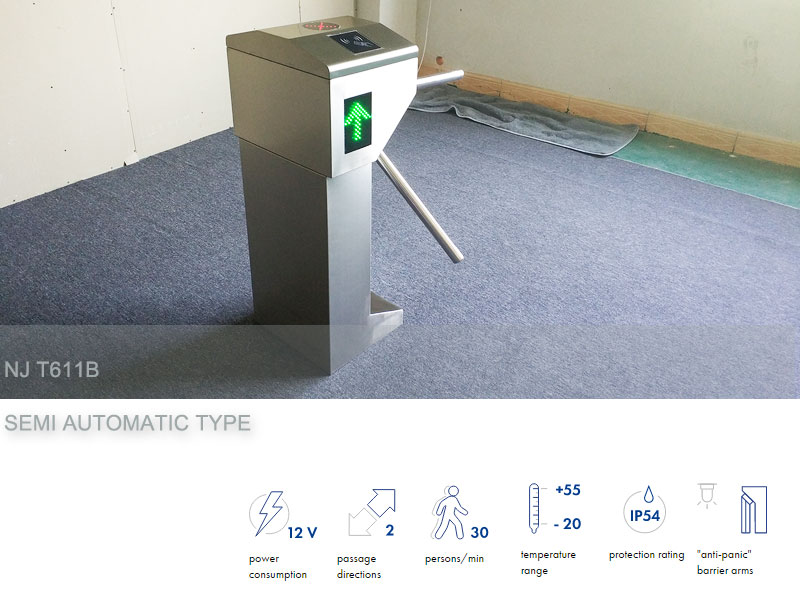

Power consumption

12 V DC

Operating voltage72 W
Number of passage directions2
Throughput rate (in the single passage mode)30 persons/min
Throughput rate (in the free passage mode)60 persons/min
Dimensions (length×width×height)420*330*980mm
Passageway width550mm
Operating temperature range, under shelterfrom -20 °C to +55 °C
"Anti-panic" barrier armsautomatic





  • Turnstile with built-in electronics
  • Turnstile with “Anti-panic” barrier arms
  • Remote control panel (optional)

Automatic "Anti-panic" barrier arms enable immediate clear of the passage for urgent evacuation of people in emergency case. Emergency unblocking of the turnstile is performed by input of the Fire Alarm signal to the turnstile or in emergency power failure. At that the barrier arm automatically falls down ensuring free passage.
When power supply is restored or Fire Alarm signal is removed, the arm shall be manually set into operating position.



NJ T611B tripod turnstile is made of stainless steel which provides not only elegant design, but also resistance to corrosion when used outdoors.



The turnstile housing has specially designed places for concealed mounting of proximity card readers. The reader operating zones are indicated on the lateral covers of the turnstile with special pictograms.



The turnstile can be operated from the access controller, remote control,etc (optional).



Special Fire Alarm input allows connecting the device that sends an emergency unblocking signal (for example, from the fire alarm).
