Product Description
12V heating stainless steel cartridge heater electric heater heating element for machinery
Cartridge heater are cylindrical electrical heating element.Mostly used for heating up solids such as injection presses heating plates or various tools,they can also be used for heating up water of gases under certain conditions.Widely used for manufacturing plastic and rubber parts in the car industry or in the food processing industry,etc.They are also commonly found in the chemical,electronics,medical equipment,packing and nuclar industries.
Product name: | 2018 New design China suppliers Industrial Cartridge heater for machine |
Diameter: | From 2.8mm-35mm |
Steamless tube: | SUS304 321 316L 310S incoloy 600 800 825 840 |
Maximun temperature: | 850°C |
Voltage: | Customized |
Wattage: | 50W/cm2 |
Length: | 10mm-10000mm |
Tolerance
Tolerance
| ||
Diameter
|
| |
2.8-5mm | +0 | -0.04mm
|
6-10mm | +0 | -0.05mm
|
>10mm | +0 | -5‰
|
Sheath Length
|
| |
≤100 mm | ±1mm
|
|
100-300mm | ±1.5mm |
|
≥300mm | ±2mm |
|
Wattage
|
| |
≤6mm | ±10%
|
|
Others | +5% | -10%
|
Resistance
|
| |
≤6mm | ±10%
|
|
Others | +10% | -5% |
Connecting wires
a. glass fiber insulation nickel wire (temperature 450 degrees -750 degrees)
b. Crimp Teflon line (temperature 250 degrees)
c. Crimp silicon insulated wire (temperature 200 degrees)
d. Crimp fiberglass insulated nickel wire (temperature 450 degrees)
Material Specification
- Tube Material: Seamless SS304, SS321, SS316L, SS310S, Incoloy 400/600/800/840 etc;
- MGO Rod: Imported from Japan Tateho, USA OTC;
- MGO Powder: Imported from UK UCM, Japan Tateho;
- Resistance Heating Wire: Sweden Kanthal, Germany BGH, NiCr8020;
- High Temperature Wire: Fiberglass wire, Pure Nickel Core wire, Telfon wire, Silicone wire;
- Terminal Pin: Nickel-manganese alloy, pure nickel wire.
Applications
- Injection moulding - Internal heating of nozzles
- Hot runner systems - Heating of manifolds
- Packaging industry - Heating of cutting bars
- Packaging industry - Heating of hot stamps
- Laboratories - Heating of analytical equipment
- Medical - Dialysis, Sterilization, Blood Analyzer, Blood/Fluid Warmer, Temperature Therapy
- Telecommunications - Deicing, Enclosure Heater
- Transportation - Oil/Block Heater, Aircraft, Coffee Pot Heaters
- Food Service - Steamers, Dish Washers
- Industrial - Glass Bending Machine, Hole Punches, Hot Stamp.
Relation product

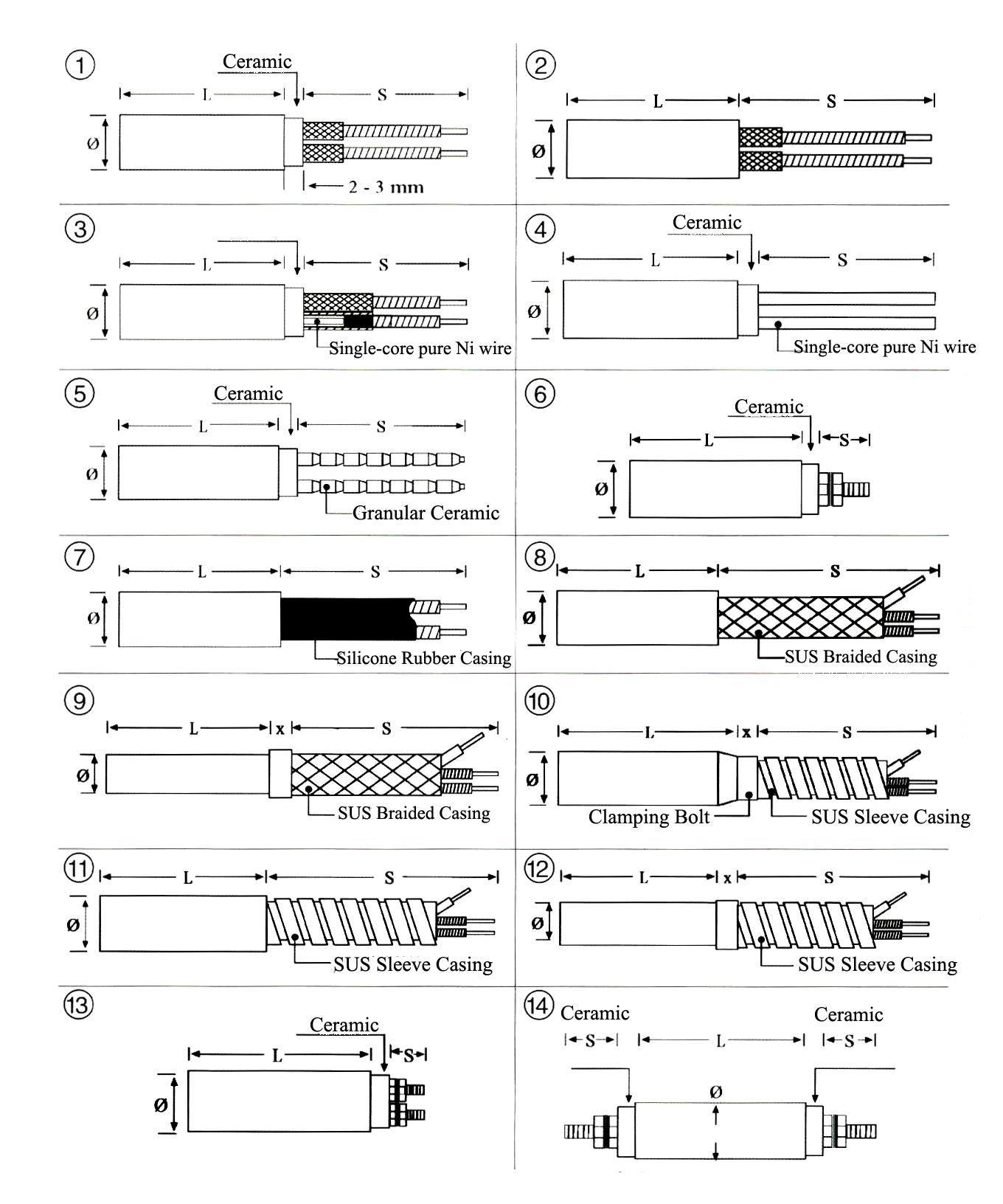

Cartridge heater the outlet of the introduction
Company Introduction
Inquiry Notes
1.Diameter
2.Width
3.Voltage
4.Walltage
5 qualifying method
6. The length of the outlet
7. Whether with a thermocouple
8.Use of the environment and temperature
Packaging & Delivery
1. Packaging Details: Vacuum packing bag + Carton + Pallet;
2. Delivery Time: About 5-15 days after getting payment ( according to quantity );
3. Delivery ways: By Air, Sea or Express.
