Customized High Density High Power Electric Heating Element

;Heating of Mould Tools, Tooling, Platens, Packaging Machinery, Heat Sealing Equipment, Plastic Process Machinery, Food Process Machinery, Catering, Printing, Hot Foil Printing, Shoe manufacturing Machinery, Laboratory / Test Equipment, Vacuum Pumps,

Technical Feature

  • 3 Pieces
  • Shenzhen, China
  • 500000PCS/Year
  • T/T, Western Union, Paypal
  • RoHS, ISO9001, CE
  • Cartridge Heater
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Trademark
superb heater
Specification
2.8mm*10mm 24V 50V
Origin
China
HS Code
8516800000

DETAIL DESCRIPTION


Customized High Density High Power Electric Heating Element


;
Heating of Mould Tools, Tooling, Platens, Packaging Machinery, Heat Sealing Equipment, Plastic Process Machinery, Food Process Machinery, Catering, Printing, Hot Foil Printing, Shoe manufacturing Machinery, Laboratory / Test Equipment, Vacuum Pumps, and many more.
superb heater manufacture Cartridge Heaters engineered to satisfy the full spectrum of Cartridge Heater applications. Whilst a standard range of Cartridge heaters are available, we specialise in designing and manufacturing cartridge heaters to our customers requirements. It is important to choose the correct construction heater to suit your application.
Recommended for temperatures up to 850°C
All Cartridge Heaters are available with a built in Thermocouple Type J or K
Diameter (Metric) [mm]:2.50mm; 2.8mm 3mm; 3.2mm;3.5mm;3.8mm;4mm;4.5mm;5mm; 6mm;;6.5mm;7mm;7.5mm; 8.0mm;9mm;9.53mm; 10mm;10.5mm; 11mm;12mm;12.50mm; 12.7mm; 13mm;13.50,mm;14mm; 15mm;15.88mm;16mm; 18mm; 19mm;20mm;22mm;25mm;28mm;30mm;32mm;35mm
(Non-standard can be customized)
Diameter (Inch) ["]: 1/8; 1/4; 3/8; 1/2; 5/8; 3/4 (non-standard can be customized)
Jacket Material: A stainless steel 304 321 316L B. 310S C. INCOLOY 625 ;INCOLOY 800;NCF800 INCOLOY 840.
The maximum temperature of the heating element jacket: 900 ºC
Resistive material: NiCr8020
High voltage stability (temperature) Rated voltage 24V -500V-DC> 24V 1500V-AC
Insulation resistance (500 [V-DC] unheated): 50MΩ
The maximum leakage current (253 [V-AC] unheated): 0.5mA
Length error: ± 1.5mm
Wattage Tolerance
+5% - 10% (closer tolerances are available upon special request)
Specification Requirements for Ordering
Input voltage: 12V-440V (non-standard can be customized)
Terminal unheated length: <3mm-20mm
Non-terminal unheated length: <3mm-20mm
DensityMax 40W/CM²
Operating temperatureMax 927ºC
Connecting cable::
a. glass fiber insulation nickel wire (temperature 450 degrees -750 degrees)
b. Crimp Teflon line (temperature 250 degrees)
c. Crimp silicon insulated wire (temperature 200 degrees)
d. Crimp fiberglass insulated nickel wire (temperature 450 degrees)
Please note that our manufacture to customer specification. There are many lead options available, including Glass Fibre Leads, Silicon Rubber Leads, PTFE Leads, Ceramic Beaded Leads, Braided Leads and Conduits. Please advise us of the type of leads preferred. If you would like some assistance or advise on the correct lead to use, please do not hesitate to ask.
When ordering Cartridge Heaters, please specify the following information :-
1.Type of Cartridge Heater ( please refer to Termination Options ).
2.Ø of Cartridge Heater.
3.Overall length for a straight Cartridge Heaters.
4.Wattage & Voltage
5.Lead type ( glass fibre / PTFE ) & lead length.
Element component
    1. China and Europe BGH and KANTHAL High-grade nickel chromium resistance heating wire,
    2.Japan and USA  MgO core,
    3. Seamless Stainless steel tube
    4 Built in cable, or swaged in
Special sizes, wattages, and materials are available upon request;
Custom-designed to meet your specifications.
Pin leads are available
Why choose us:

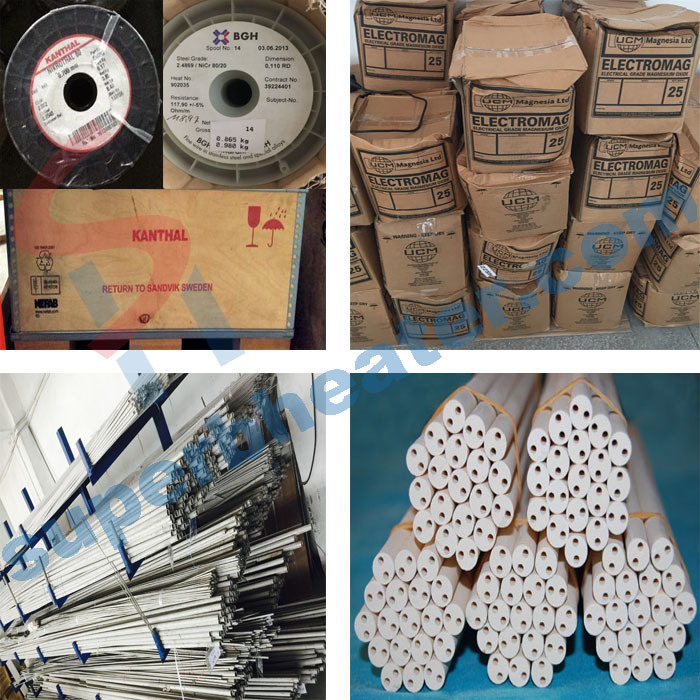

High-quality materials
Insulation: UCM(UK)  Magnesium Oxide Powder ;KANTHAL ,BJH resistance wires ,SS321Seamless Stainless steel tube;OTC(USA) Tateho (Japan) mgo rod...
Customized High Density High Power Electric Heating Element


Advanced production and testing equipment
Customized High Density High Power Electric Heating Element
Work shop and stock

Customized High Density High Power Electric Heating Element

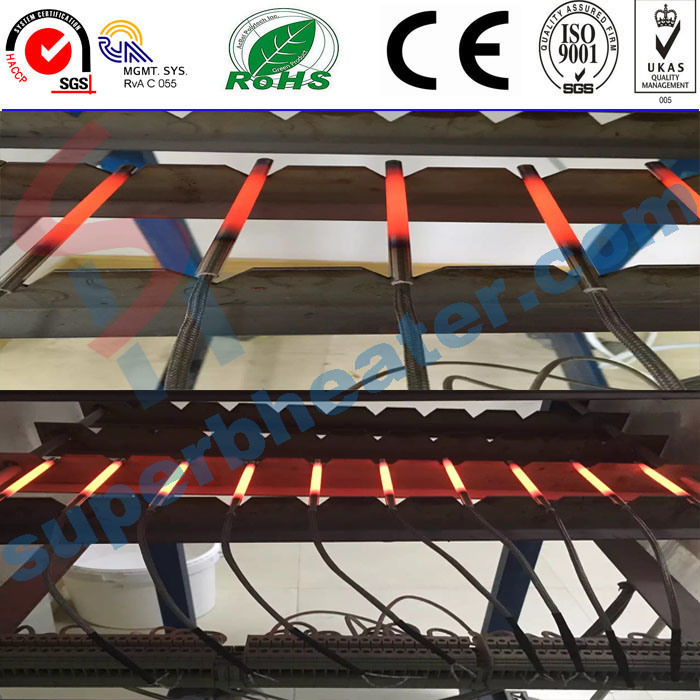

cartridge heater test:
Customized High Density High Power Electric Heating Element

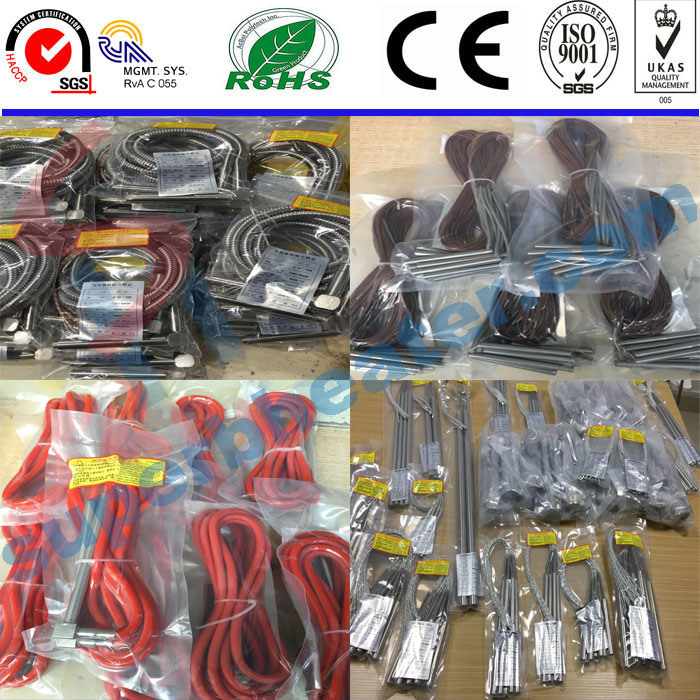

Packing and shipment:

Customized High Density High Power Electric Heating Element


OUR ADVANTAGES:
1.Minimum order: 3pcs
2.Delivery time : in stock 1-2days ,out stock 3-7days
3.More than 100  different sizes stock
4.Products are divided into two grades
A grades:use the The world's top material Best quality,Meet or exceed the same quality in Europe and America,Only 40% of the price of similar products in Europe and America To meet customer demand for high quality.
B  grades:use the The china top material,Best quality in china ,Meet the standard for quality and price requirements of customers
  1. Provide OEM service.
  2. Quality Assurance:Under normal conditions consistent with the design range : 365days
