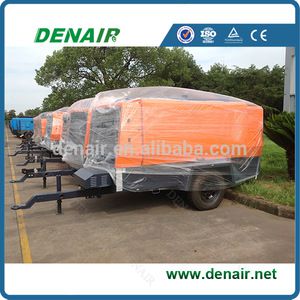

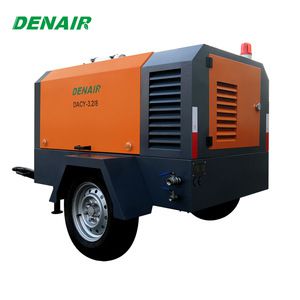

3m3/min 7bar diesel mobile air compressor with drilling tools

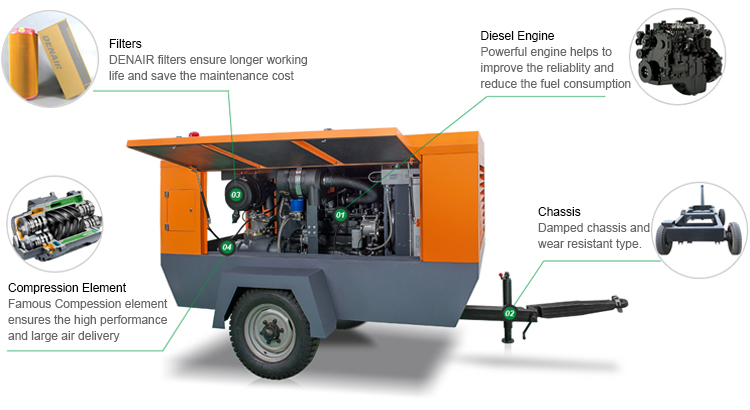

1.Easy to move (accept skid-mounted customization)
2.Large volume fuel tank to ensure 10 hours/day workload.
3.A wide range of pressure and capacity design, 57 models for customers to choose.
4.Butterfly inlet valve to achieve 0 ~ 100% continuous automatic flow control.
5.Double damping of the main engine and axle, the machine runs more smoothly.
6.Large area cooler design, rust-proof resin fan.
7.Choose the best matching power Diesel Engine to reduce overall operating load and increase service life.
| DENAIR hot sale series diesel portable air compressors | |||||||||
| Model | Machine | Diesel Engine | |||||||
Free Air Delivery | Normal Working Pressure | Dimensions (without towbar) | Weight | Manufacturer | Model | Rated power | |||
| m3/min | CFM | bar(e) | psig | L*W*H(mm) | kg | KW | |||

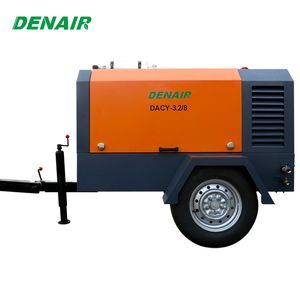

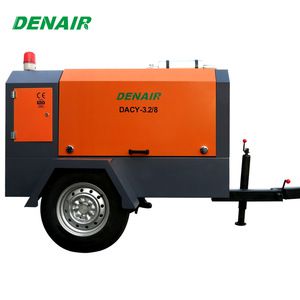

| DACY-3.2/8 | 3.98 | 140 | 8 | 116 | 2265*1590*1575 | 900 | yangdong | YSD490G | 32 |
| DACY-5/7 | 5.72 | 202 | 7 | 102 | 3075*1900*2040 | 1350 | Cummins | QSB3.9-C80-31 | 60 |
| DACY-6/7 | 5.72 | 202 | 7 | 102 | 3075*1900*2040 | 1350 | QSB3.9-C80-31 | 60 | |
| DACY-7.5/7 | 7.50 | 265 | 7 | 102 | 3075*1900*2040 | 1350 | QSB3.9-C80-31 | 60 | |
| DACY-12/7 | 12.00 | 424 | 7 | 102 | 3220*2000*2355 | 1700 | QSB3.9-C130-31 | 96 | |
| DACY- 8.5/10 | 10.28 | 363 | 10 | 145 | 3220*2000*2355 | 1700 | QSB3.9-C130-31 | 96 | |
| DACY-13/8 | 13.00 | 459 | 8 | 116 | 3530*2090*2325 | 2050 | QSB5.9-C150-31 | 113 | |
| DACY-11/10 | 11.27 | 398 | 10 | 145 | 3530*2090*2325 | 2050 | QSB5.9-C150-31 | 113 | |
| DACY-10/13 | 10.05 | 355 | 13 | 189 | 3530*2090*2325 | 2050 | QSB5.9-C150-31 | 113 | |
| DACY-9/14 | 9.00 | 318 | 14 | 203 | 3530*2090*2325 | 2050 | QSB5.9-C150-31 | 113 | |
| DACY-14/12 | 14.00 | 494 | 12 | 175 | 3400*1770*2670 | 3600 | QSB5.9-C180-31 | 132 | |
| DACY-10/20 | 12.52 | 442 | 20 | 290 | 3400*1770*2670 | 4000 | QSC8.3-C215-30 | 160 | |
| DACY-22.5/14G | 22.50 | 794 | 14 | 203 | 3820*1980*2680 | 4400 | QSL8.9-C325-30 | 239 | |
| DACY-22/20 | 22.00 | 777 | 20 | 290 | 4000*2300*2750 | 5500 | QSL8.9-C360-30 | 264 | |
| DACY-32/10 | 32.00 | 1130 | 10 | 145 | 4720*2160*3200 | 5500 | QSZ13-C400-30 | 298 | |
| DACY-45/10 | 47.77 | 1687 | 10 | 145 | 4720*2160*3200 | 6500 | QSB5.9-C150-31 | 415 | |
| DACY-33/35 | 33.48 | 1182 | 35 | 508 | 4510*2160*3170 | 6900 | KTA19-P700 | 522 | |
| *)Free air delivery in accordance with ISO 1217 :2009, Annex C: Absolute intake pressure 1 bar(a), cooling and air take tempetature 20 ℃. Note: Skid-mounted type is available. |
(Specifications are subject to change without prior notice)
40 more models, pls inquire to us online!
Pls feel free to chat with us online or send your inquiry, including your company name, email address and phone number below!
1.How long is your air compressor warranty?
Answer: 1 year.
2.Do you provide After- sales service parts?
Answer: Of course, We could provide easy- consumable spares.
3.How long could your air compressor be used?
Answer: Generally, more than 10 years.
4.How about your price?
Answer: Based on high quality, Our price is very competitive in the world
5.How about your customer service?
Answer: For email, we could reply our customers' emails within 2 hours.
