250m3/min FS-Elliott Oil-free Centrifugal Air Compressor
Max Pressure: 40kgf / cm2
Driven Power: 150~ 7500KW
Air Flow: 2300-100000m3 / hr, Variable with IGV regulation
Standards:meet API 617 / API 672 / API614

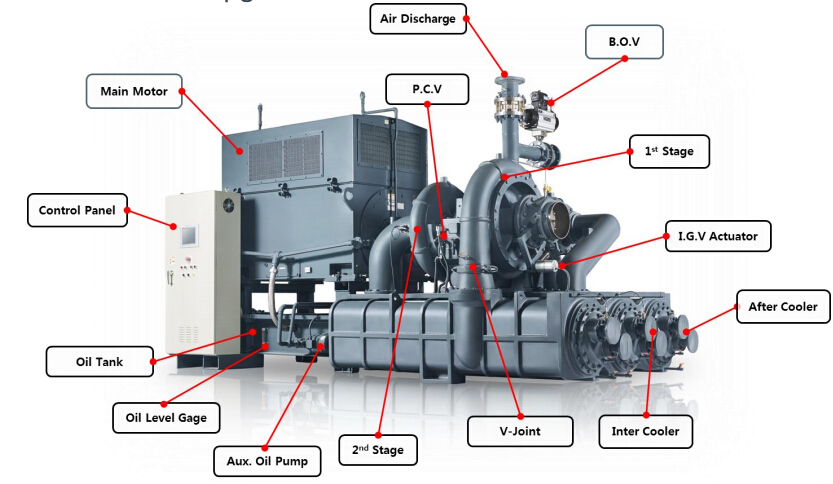

1, The overall design of cast structure, including gear boxes, coolers and all air pipes
*Minimal noise design, compact structure.
2,100% oil-free clean compressed air
*perfect separation structure between Lube part and air compression part .
3, Efficient and stable quality
*The latest computer simulation design.
*use the superior quality parts.
4, Fast & simple installation
*A new generation Chorus series has simple installation, compact design and light weight, which is easy to maintain and move.
Easy maintenance

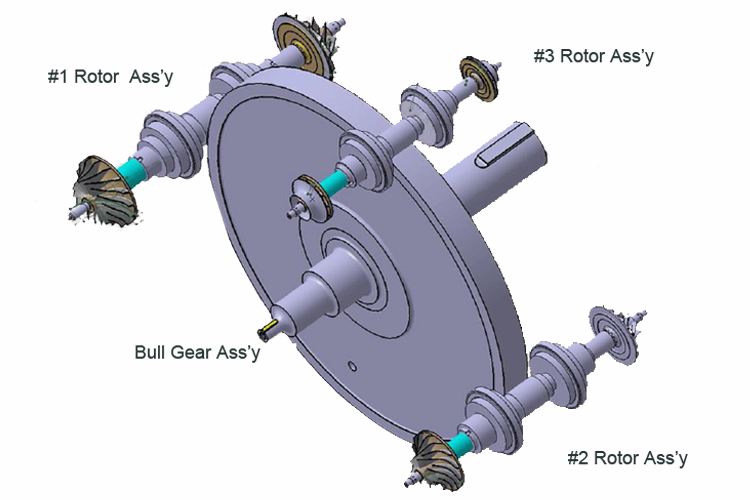

1.Horizontal gearbox, bearings and oil seal.
2.Straight-pipe cooler facilitates quick decomposition on site for easy maintenance.
3.Adopting modular design to facilitate inspection and maintenance, greatly reducing maintenance time.
Durable
1.All compressor components ensure strict quality control and durability testing.
2.Stable Quality Assurance System Improves Compressor Performance and Durability & Stability.
Configuration points: standards and options
Standard Items
*cutting-edge fluid engineering design,efficient turbo compressor.
*High precision air filter.
*Inter cooler, oil cooler, after cooler.
*all levels of vibration detection device.
*High efficiency motor.
*Automatic condensate drain.
*Basic configuration PLC controller * 10-inch color touch screen.
*lube system.
*Inlet Guide Vane [I.G.V].
*Blow Off valve [B.O.V] and silencer.
*Constant pressure control and automatic loading and unloading control.
Optional Items
*Double oil filter.
*High-voltage starter cabinet.
*Inhalation filter differential pressure monitoring.
*Centralized control / remote control.
*HMI monitoring system.
*Sound insulation cover.
| Description | Flow (Im3/hr) | Exhaust Pressure | Motor | Size | Weight |
| kgf/cm2 G | bar G | 150-6000 | L*W*H(mm) | kg | |
| CHORUS 60 | 2300-5500 | 3-25 | 3600*1900*2000 | 7200 | |
| CHORUS 90 | 550-8500 | 3-25 | 4000*2100*2200 | 8000 | |
| CHORUS 150 | 8500-15000 | 3-25 | 4600*2100*2500 | 10000 | |
| CHORUS 200 | 15000-21000 | 3-25 | 4900*2150*2550 | 19000 | |
| CHORUS 250 | 18000-25000 | 3-25 | 5000*2200*2600 | 22000 | |
| CHORUS 450 | 25000-41000 | 3-25 | 5300*3000*3200 | 24000 | |
| CHORUS 650 | 41000-60000 | 3-25 | 7500*3500*4000 | 29000 | |
| CHORUS 1000 | 50000-300000 | 3-40 | TBD | TBD | TBD |
DENAIR Factory & Product Lines
DENAIR Certificates
DENAIR Global Customers
DENAIR - Germany Hannover Messe 2017
1. Engineers available to service machinery overseas.
2. Sales engineers provide specific reply within 24 hours when the customer has after-sales problem until it’s solved.
3. Guarantee period is 1 year for the whole machine (except maintenance consumables).
