China full automatic Pregelatinized modified starch production line

Oil Drilling Modified Starch making machine can produce Denatured Starch, Pre-gelatinized starch is an effective and economical fluid loss agent in water based drilling fluids, which is a starch derivative.

Technical Feature

  • Shandong, China (Mainland)
  • Bright
  • DSE
  • China full automatic Pregelatinized modified starch production line
  • Engineers available to service machinery overseas
  • China full automatic Pregelatinized modified starch production line
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin
Shandong, China (Mainland)
Brand Name
Bright
Model Number
DSE
Type
China full automatic Pregelatinized modified starch production line
After-sales Service Provided
Engineers available to service machinery overseas
Name
China full automatic Pregelatinized modified starch production line
Material quality
SS304
Voltage
110v-440v,50hz ,60hz.
Production capacity
100-2000kg/h
warranty
2 years
certification
CE ISO9000 SGS
Energy
electricity, oil diesel, gas, steam
Motor brand
Siemens, ABB or Chinese brand
Shapes
Various upon clients' demands.
Power
22kw,30kw,45kw,55kw,75kw,90kw,120kw

DETAIL DESCRIPTION

Related products

fried bugles snack machine

kurkure cheetos machine

2d&3d pellet snack machine

Product Description

 China full automatic Pregelatinized modified starch production line introduction:
 Oil Drilling Modified Starch making machine can produce Denatured Starch, Pre-gelatinized starch is an effective and economical fluid loss agent in water based drilling fluids, which is a starch derivative. It is not bacterial degradation when at 120°C, environmentally acceptable and non-toxic. Modified Starch can produce a thin, slick, tough filter cake and promotes faster penetration rates with reducer friction. It can be used in all kinds of drilling fluid system. Pre-gelatinized starch is also sometimes "pregelatinized" to make them easier to dissolve during product manufacture. Modified starch is widely used in oil drilling, textile, paper and food industries.

Main Features of China full automatic Pregelatinized modified starch production line
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

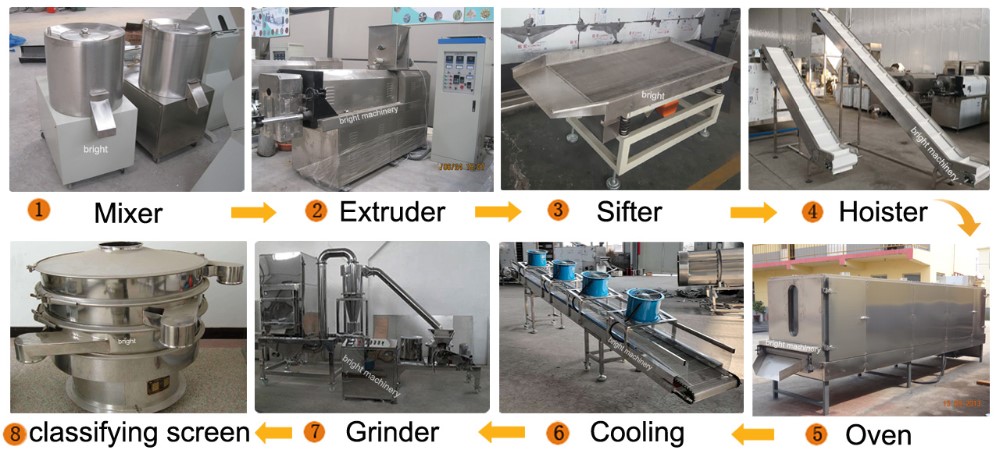

Flow chart :

Mixer— Screw conveyor—Twin-screw extruder— Sifter—Hoister— oven —Cooling machine — Grinder—Classifying screen

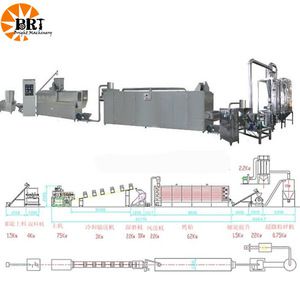

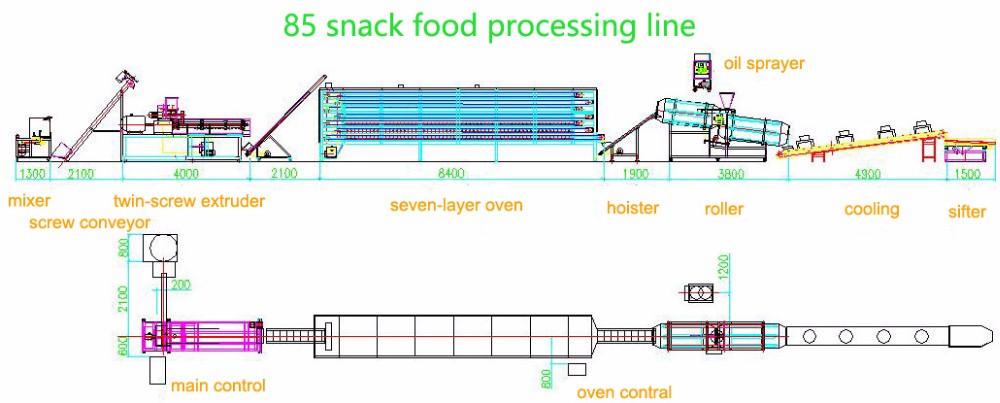

Flow chart diagram:

Our engineer could design the layout drawing according to your dimension of the factory for the fish feed machines

Technical parameter

Model
InstalledPower
(KW)
Power Consumption
(kw)
Capacity
(kg/h)
Dimension
(m)
DSE65 processing line
74
52
100-150
17*1.2*2.2
DSE70 processing line
95
70
200-300
20*1.5*2.2
DSE85 processing line
139
102
300-500
28*3.5*4.3
DSE95 processing line
200
160
800-1200
35*3.5*5.5

Raw material:

natural starch, like corn starch, cassava starch, tapioca starch etc

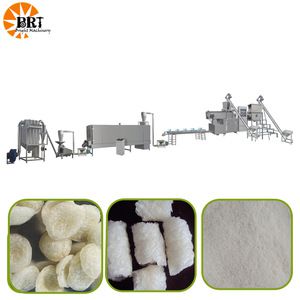

Sample of modified starch :

Equipment list in the snack food production line:

mixer→screw conveyor→twin screw extruder→air conveyor→dryer→hoister→Grinder→packing machine

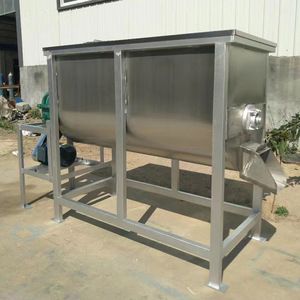

1)mixer of China full automatic Pregelatinized modified starch production line

Name
Mixer
Usage
To mix the raw materials evenly, fast speed, no leakage.

Type
including Single axle and double shaft mixer
Motor
3kw, 4kw, 7.5kw etc.
Capacity
20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc.
Material
stainless steel, carbon steel

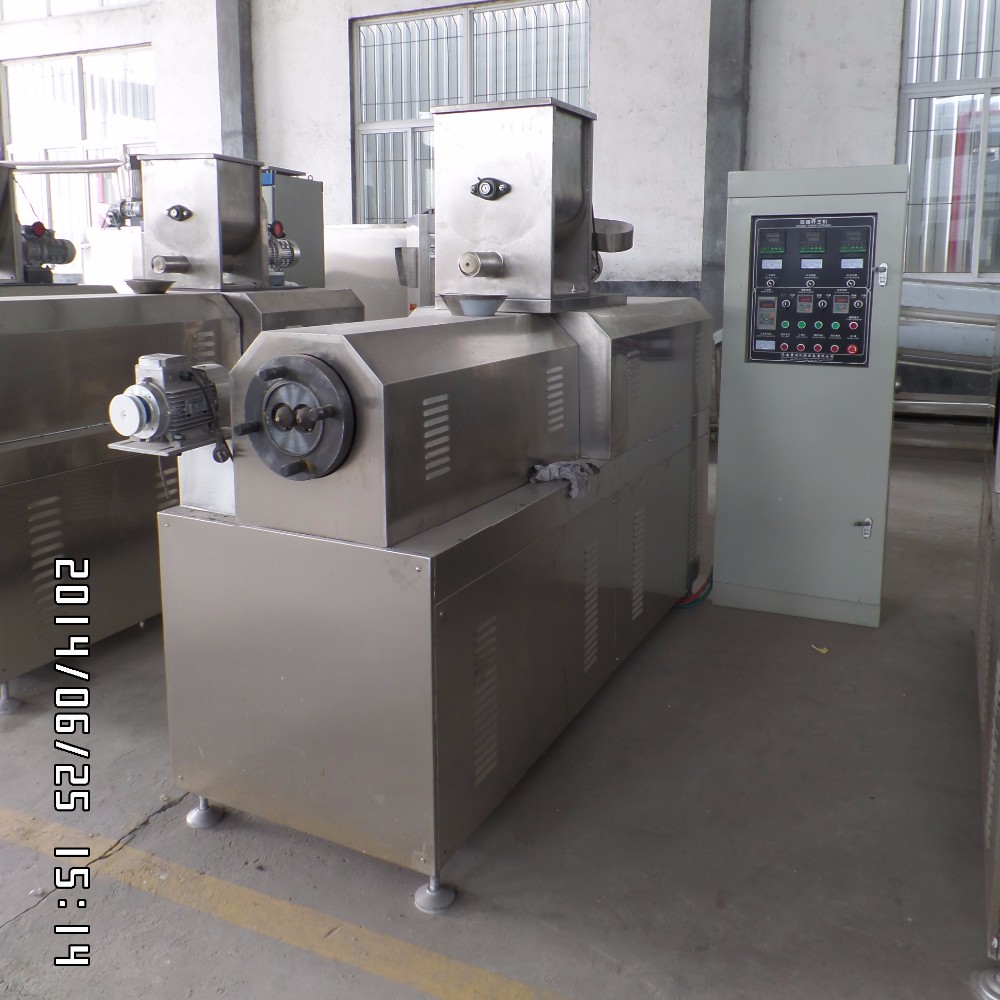

2)extruder of China full automatic Pregelatinized modified starch production line

Name
Twin screw extruder(wet type/dry type)
Usage
To extrude the raw materials and make them to the required shape and size of the snack food pellets by mould
model
DSE65, 70, 75, 90, 95, 120, 135
Motor
22kw, 30kw, 55kw, 75kw, 90kw, 110kw etc.
Capacity
100kg/h to 10 ton/h
Material
Screw materials 38CrMoAl
stainless steel, carbon steel

3)oven of China full automatic Pregelatinized modified starch production line

Name
Dryer (oven)
Usage
the expanded food go through the “s” passage, to be dried to increase the self life.
Type
electrical, steam, gas fired, diesel fired heating type
Motor
KX-3-5, KX-5-5, KX-5-8, KX-5-10, KX-7-10 etc.
Capacity
100kg/h to 10 ton/h
Material
stainless steel, carbon steel

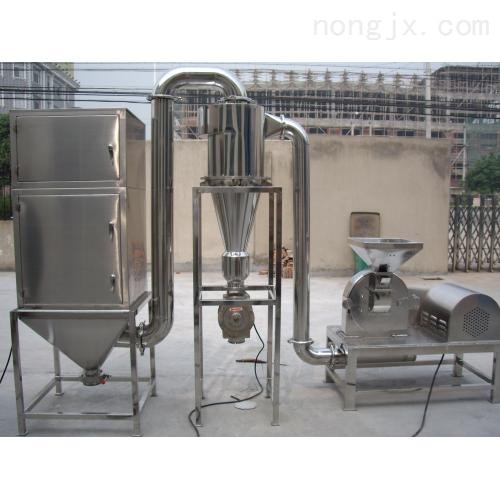

4)grinder of China full automatic Pregelatinized modified starch production line

Name
Grinder
Usage
Through the high speed relative motion between the movable tooth disc and the fixed tooth disc, the comminuted material is crushed through the tooth impact, the friction and the impact of the material to each other and so on.
Motor
22kw, 35kw, 55kw,
Capacity
100kg/h to 10 ton/h
Material
stainless steel

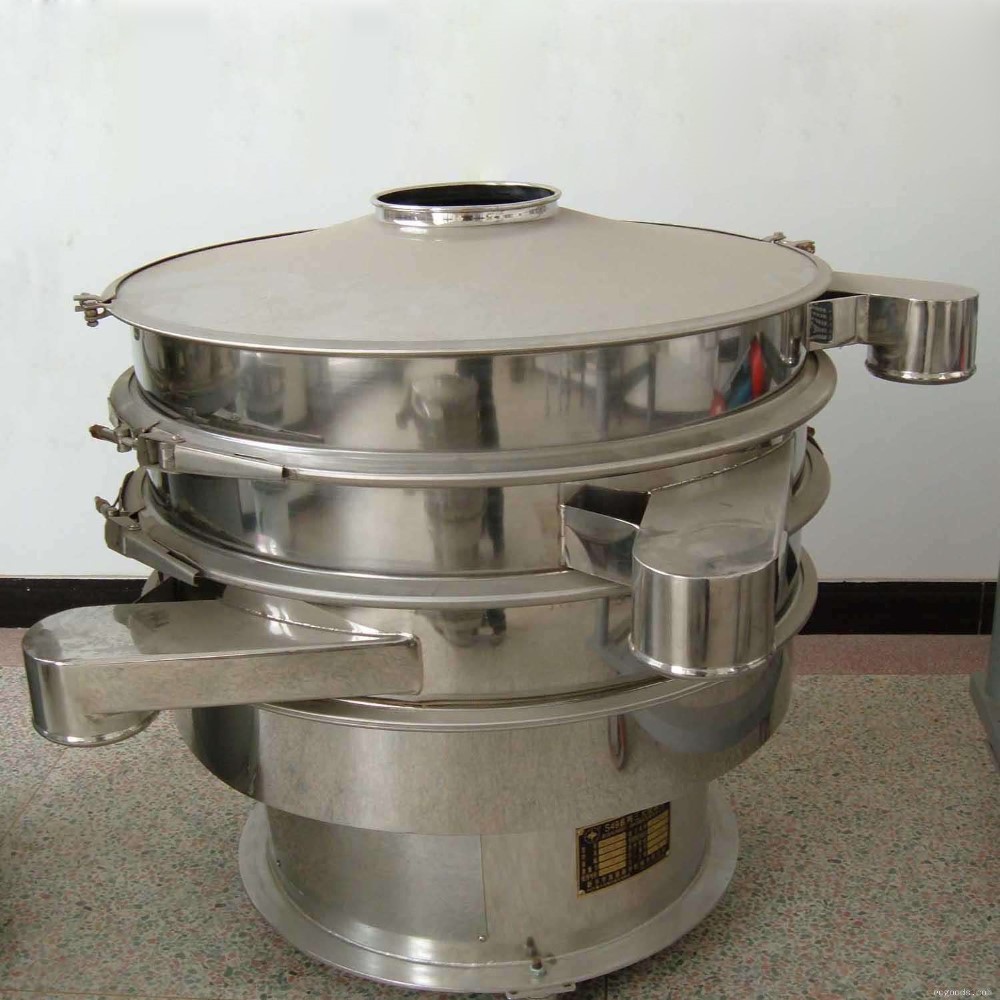

5)Sifter of China full automatic Pregelatinized modified starch production line

Name
Sifter
Usage
The crushing materials are classified and screened
Type
electrical
Motor
5kw,7.5kw,15kw,22kw
Capacity
100kg/h to 10 ton/h
Material
stainless steel

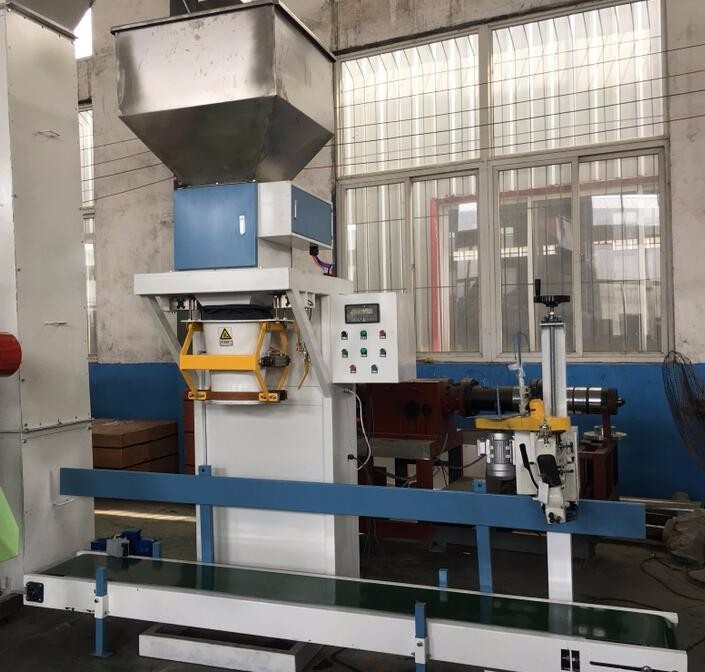

6)packaging of China full automatic Pregelatinized modified starch production line

Name
Packaging machine
Usage
To pack the snack food with required weight
Flowing Process
Manual Bag placing→Automatic filling→Automatic weighing→ Automatic bag conveyor→Automatic bag sewing or heat sealing
Weight range
1-5kg/bag, 5-25kg/bag, 25-50kg/bag
Material
stainless steel, carbon steel
Type
Automatic
Production process

Bright company is in strict accordance with the industrial standards for cutting, bending, welding, strict

control of process quality, check whether the machine is qualified before delivery, to ensure that every machine for the customer is qualified artware selected carefully by Bright company.

Why choose us
Our Service

1.) Consultation service before, during,and after sales;
2.) Project planning and design service;
3.) Debugging of equipment until everything is functional;
4.) Management of equipments' long distance shipping from seller's factory to the named place by buyer;
5.) Training of equipment maintenance and operating personally;
6.) New production techniques and formulas;
7.) Provide 1 year complete warranty and life-time maintenance service.

Company&Customer
FAQ

Q: Are you a trade company or a manufacturer?

A: we are a manufacturer, welcome to visit and check the machine to my factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shippment.

Q: How about the after-service?

A: We will send 1 engineer to the buyer’s factory for a 10-day period installation and training to the operators.

Q:do you supply any formula to buyer?

A:yes, we supply formula to buyer,


Why so many customers choose us :

1. Advantage technology
2. High quality material
3. Tight quality control
4. Accurate machine
5. 7 - 24 hours service

Packing &Delivery

1.Use anti-rust oil to wipe the equipment for China full automatic Pregelatinized modified starch production line

2.air cushion film packaging equipment for Stainless steel drill modify starch making machine

3.with a wooden box for the final step of packaging.
