Product Application
Snacks food machine adopts corn, rice, wheat, oat, barley etc as ingredients to make puffs snack. Through friction of screw and barrel, the grains are cooked in the extruder Barrel. Forming is at the die face cutter. The product shape is determined by a combination of the die aperture, including ball, tube, stick, ring, fruit loop, star, wheel and flower etc.
Production Process Line:
Flour Mixer → Automatic Feeder→ Double Screw Extruder( With Cooling Tower, Water Injector) → Pattern Machine→ Compounding Machine→ Lifter→ Recycling Dryer → Continous Fryer→ De-oiler→ Flavoring Line
Basic Formula:
Basic Formula: wheat flour, corn starch, potato starch, whole potato flour
| SPECIFICATIONS | |||
| Model | Power | Capacity | Dimension |
| DG65-II | 48KW | 100-150kg/h | 26000x4500x2500mm |
| DG70-III | 73KW | 200-250kg/h | 26500x4500x2500mm |
Machine Parts

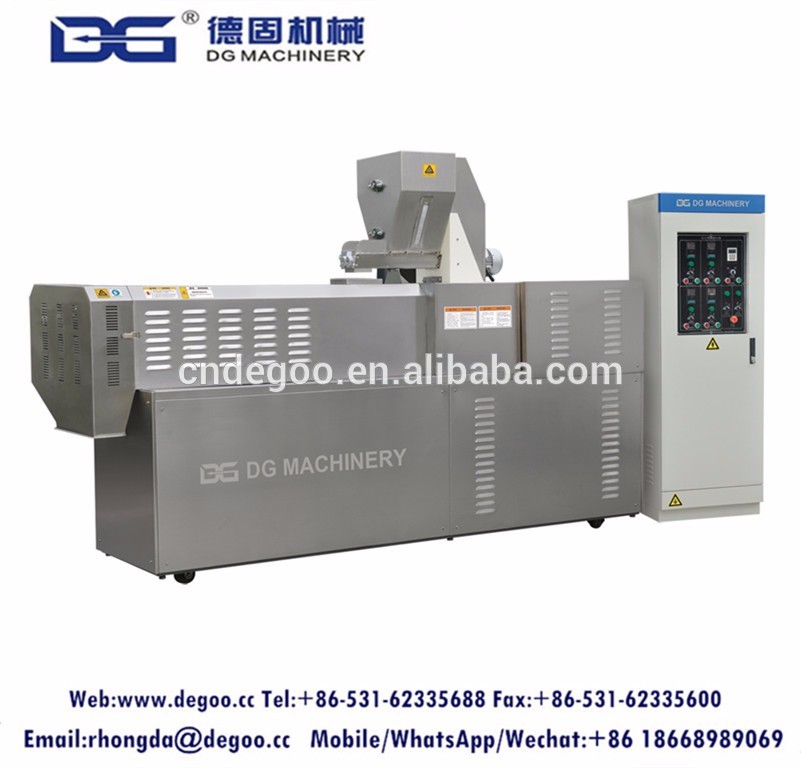

Name: Extruder
Brand: Jinan DG
Original: China
This machine is used to extrude the raw material and make the snacks food. By using together with shaping machine, it can also be used to make many kinds of puff snacks.
Machine Parts

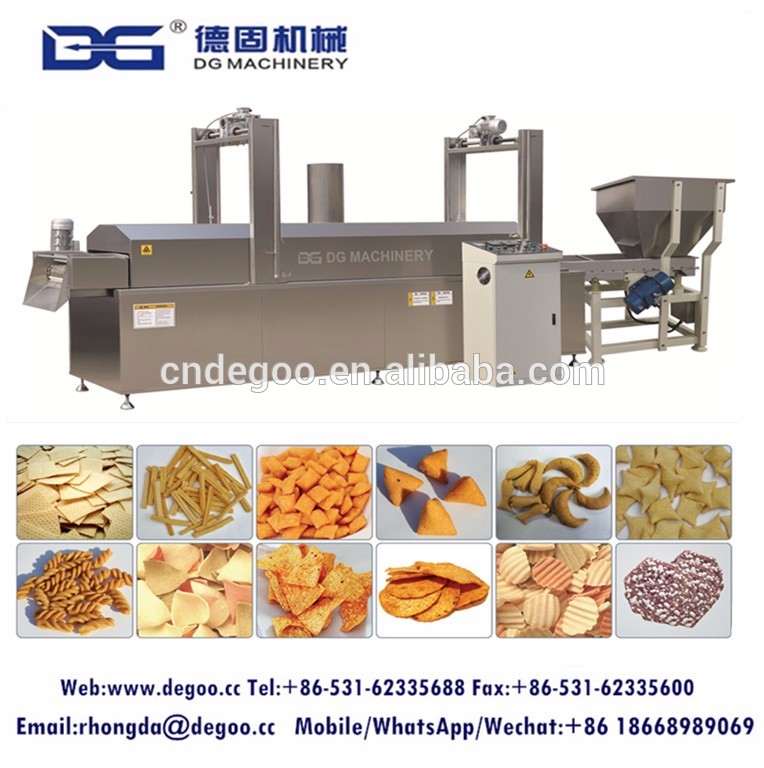

Name: Continuous Fryer
Brand: Jinan DG
Original: China
This machine consists of frying machine, oil filter device, control system, pump and pipes. It is used to fry different shape of snacks in continuous process.
The frying temperature, frying speed and frying time can be adjusted.
Machine Parts

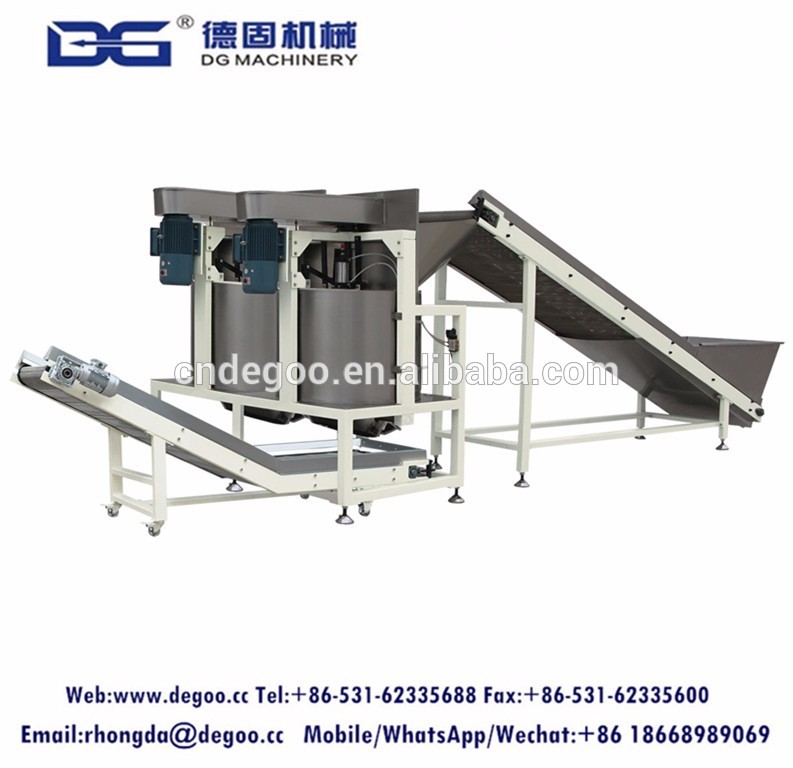

Name: Double Tank Deoil Line
Brand: Jinan DG
Original: China
This machine adopts PLC control system. It includes input conveyor, double deoil tank, filter device and output conveyor. It is used to deoil extra oil from the fried food. The speed can be adjusted.
Machine Parts

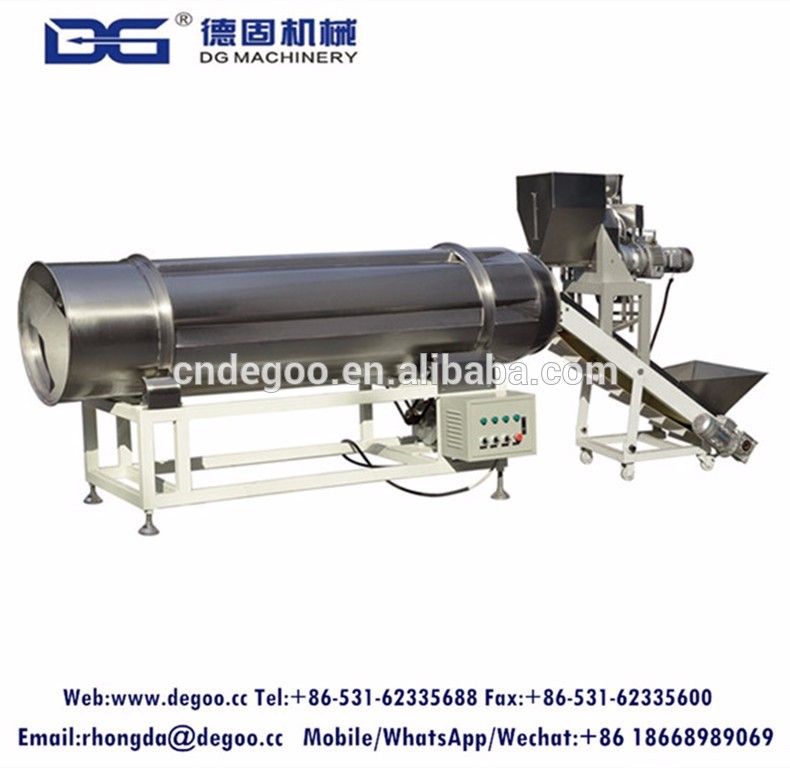

Name: Flavoring Line
Brand: Jinan DG
Original: China
This machine consists of conveyor, single roller, powder spraying device, and is used to spray the powder flavors to the surface of the food.
Main Features
1. Swiss Technology,made in China;
2. PLC touch screen for Centralized ,accurate,convenient control
3. Fully automatic control system for heating and circulated cooling accurately
4. Direct transmission of motor and distribution box reduces energy loss.
5. Imported bearing group with higher bearing capacity
6. Equip with water injecting device on barrel to meet require of various raw material and quality.
7. High-speed tool steel with hardness HRC≥62 to ensure a longer service life.
8. Modular combination of screws at will to meet require of different raw material.
9. Suspension type rotary cutter with bearing adjusting device to ensure quick,safe and accurate
10. All barrels inlaid alloy sleeve, easy to replace and extend the life span of screw. All barrels inlaid cooling water through, spread around alloy sleeve, and can accurate constant temperature required
11. All screw sleeves is kneading, ensure that not accumulate material. The screw is installed by blocks, and can be replaced optionally ratio to achieve requirements for product. Screw sleeve is installed by spline, and it is convenient and efficient. Quality of screw sleeve according to different prices is divided into: Cr12MoV, 38CrMoAl38, W6Mo5Cr4V2.
12. Applied to make all kinds of extrusion products such as corn flakes , cereal snacks ,puff snacks ,wheaten snacks , 2d /3d snack pellets , pet food ,fish feed ,soya protein ,nutritiobal powder ,modified starch and so on. .
We supply professional turnkey solution:
1. Professioal technical team designs production line to meet your demand.
2.Help our custom to develop the old production line and carry out new products.
3.Consult service before,during and after-sale.
4.Production line planning and design .
5.Factory lay out planning .
6. Debugging of equipments until producing products and everything is normal.
7.New production techniques and formulars.
8.Supply with 12 months wanttery and life-time maintenance
| Packaging | |
| Size | According to the line |
| Weight | According to the line |
| Packaging Details | The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Jinan DG Machinery Co.,Ltd-Snack Machinery Expert
We, Jinan DG Machinery Co., Ltd. is located in the famous industry city-Jinan city, capital of Shandong Province.
We are professional manufacturer of food extruder and mainly deal with the manufacture, research and development of the inflating food machine. According to the clients’ different requirements, we could offer the whole complete processing line for all kinds of expanded snacks, corn flakes, nutrition powder, and pet food and so on. Our technical assistance will help clients produce high quality products all the time.
As a leading manufacturer of inflating food machinery, we are selling and marketing the machines to many countries in the world. We keep improving our machines and upgrading techniques to satisfy the requirements of all the clients. Depending on our rich experience and professional experts on the extruded food industry, we could offer the most suitable and complete program to assure that your investment will get biggest profit.
