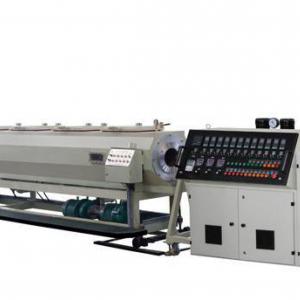

This line can produce UPVC/CPVC pipes for water supply or drainage and cable tubes. We can offer the machines to produce the PVC pipe from 16mm up to 630mm.
We have ISO9000 and CE certificate for our machines.
With more than 20 years experince in this field, we have the ability to offer you the quality machines and excellent services.
We have ISO9000 and CE certificate for our machines.
With more than 20 years experince in this field, we have the ability to offer you the quality machines and excellent services.
- ZJF300 Plastic Powder Feeder
| Charging capacity | 300kg/h |
| Spring Diameter | Φ36mm |
| Length of Charging HDPE Pipe and Spring | 4Meter |
| Material case volume | 150kg |
| Motor Power | 1.1KW |
- SJZ65/132 Conical Twin Screw Extruder
| Screw,Barrel | Screw and Barrel Material 38CrMoAlA,Nitriding, Screw Nitriding Layer Thickness:0.5~0.7mm, Rigidity(HV)800~900 |
| Screw Diameter | Φ65/132mm |
| Effectual Working Length of Screw | 1430mm |
| Speed of Screw | 1~35rpm |
| Main Motor Power | 37KW Siemens Beide Motor |
| Main Motor Timing Method | Adopt 37KW ABB Inverter |
| Force Feeder Motor Power | 0.75KW |
| Force Feeder Motor Timing | Adopt 0.75KW ABB Inverter |
| Barrel Heating Method | Foundry Aluminum Heater,include force cooling fan |
| Barrel Heating Power | 24KW |
| Capacity | 150~180kg/h |
| Main Electrical Equipment | Japanese RKC Temperature Control Meter,Siemens Contactor. |

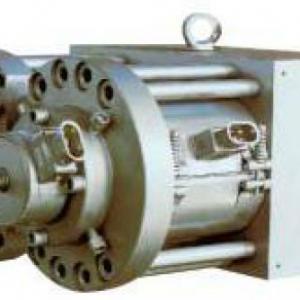

- PVC Dual Pipe Extrusion Mould
| Specification | Φ16,Φ20,Φ32,Φ40,Φ50,Φ63mm |

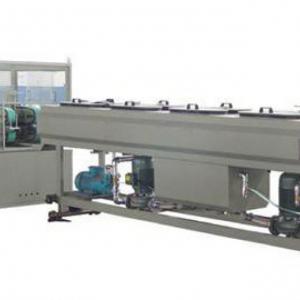

- Dual Pipe Vacuum Calibration Tank
| Calibration Tank Length | 6M |
| Tank Metarial | Adopt 3mm thickness stainless steel board |
| Two pipe central distance | 330mm |
| Vacuum Pump | 2.2KW×2pc |
| Water Pump | 2.2KW×2pc, 3KW×1pc |
| Tank Lengthways Move | Adopt 0.75KW Gearbox Speed Reducer Motor, Adjusting Distance equal to 800mm |
| Up-and-down, Right-and-left adjusting | Adopt Manual Adjusting |

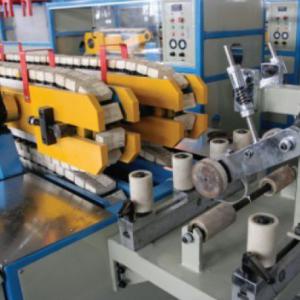

- Double Haul Off And Cutting Unit
| Haul off frame length | 1000mm |
| Haul off motor power | 0.55KW×4sets |
| Haul off speed | Adopt 1.1KW×2sets ABBinverter |
| Haul off speed | 0.5~12m/min |
| Above Haul-off Bracket Compaction Mode | Pneumatic |
| Pipe diameter | Φ20~Φ50 |
| Saw diameter | Φ230mm |
| Cutting motor power | 0.75KW×2sets |
| Saw bracket vertical journey | 500mm |
- Dual Pipe Stacker
| Stacker | 4m |
| Laying Board Material | 0.8mm Stainless steel board |
| Stacking by Gas Cylinder, Adopt Limited Switch Send out Cutting Signal |
