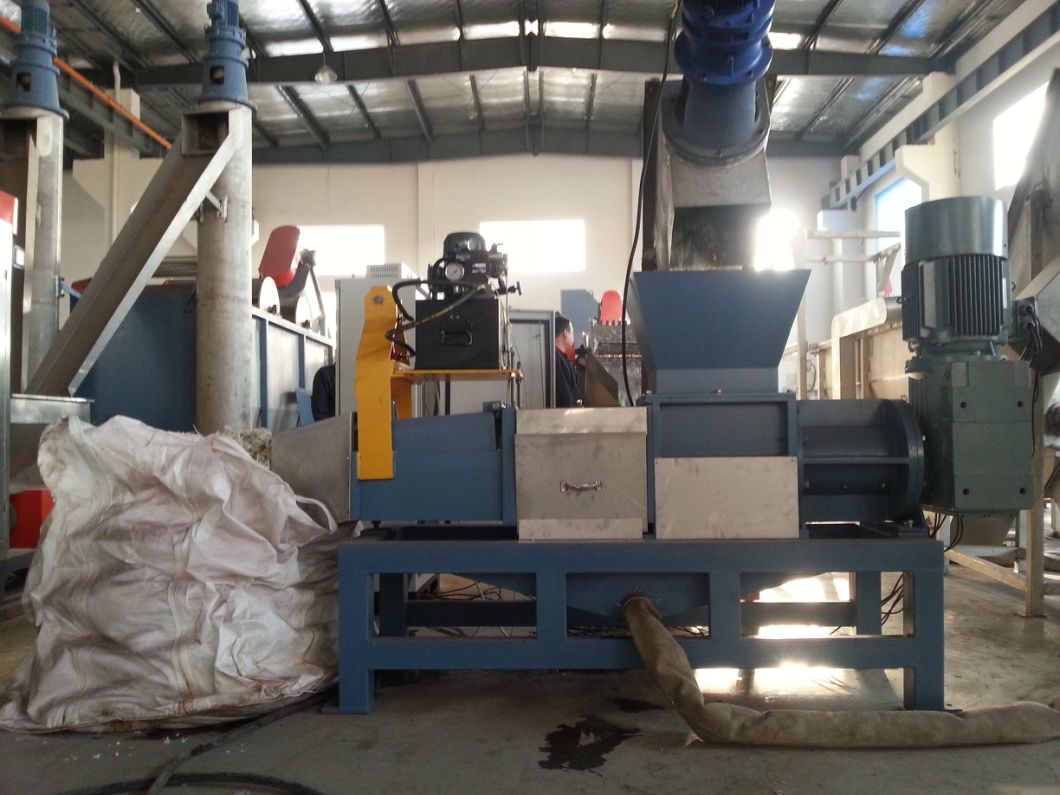

PE/PP Plastic Film Squeezer Machine
Product Description
Features:
Main Technical Parameter:
Motor power : 18.5kw
Max capacity : 500-700kg/h
Screw diameter :300mm
Hydraulic station power : 1.5kw
Remark:The machine has less motor, high working efficiency, which could save your power cost.
Product Description
Features:
- This machine is our new designed machine, made by the advanced Italian techniques, specially screw pressing dewatering design;
- It is equipped with a electric control cabinet, feeder mouth is easy to control the drying effect;
- This machine is especially for plastic film, plastic bags, woven bags, Jumbo bags. Solve the drying problem in the past.
- Instead of the dewatering machine, hot blower in the recycling line.
- Easy to operate, drying effect can reach to 92%-93%, if add one step hot air pipe drying system, final product dry could be more than 95%.
Main Technical Parameter:
Motor power : 18.5kw
Max capacity : 500-700kg/h
Screw diameter :300mm
Hydraulic station power : 1.5kw
Remark:The machine has less motor, high working efficiency, which could save your power cost.
| Model | 500 | 1000 |
| DIMENSION | 2450X800X1800MM | 2450X800X1800MM |
| INLET SIZE | 700X670MM | 700X670MM |
| MOTOR POWER | 18.5KW | 22KW |
| ROTATED SPEED | 42R/MIN | 42R/MIN |
| CAPACITY | 500-700KG/H | 800-1000KG/H |
| DRAINAGE METHOD | DRAIN AT THE BOTTOM | |
| MATERIAL OUTLET | FREE FALLING | |
| HYDRAULIC STATION MOTOR | 1.5-2.2KW |
